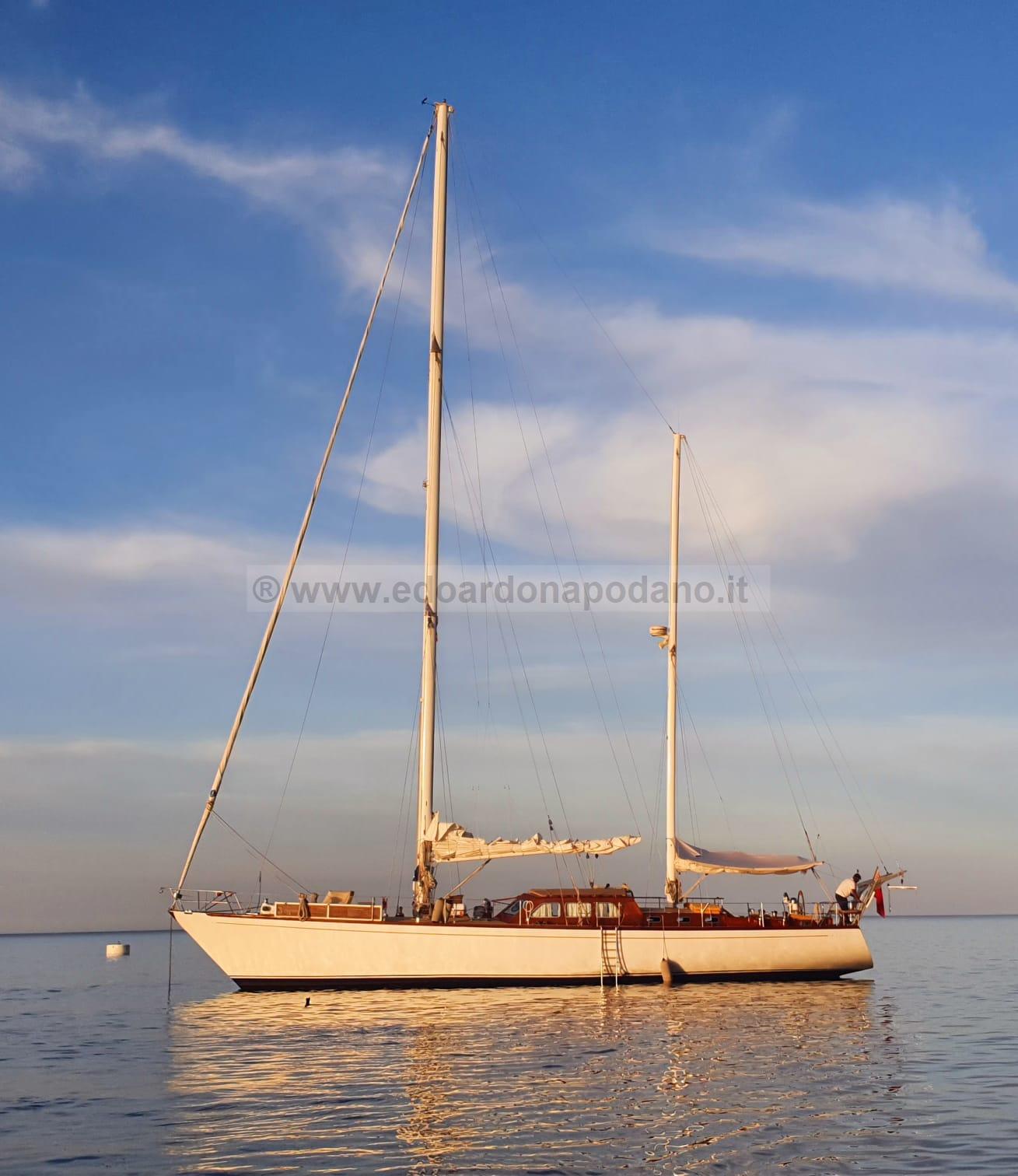

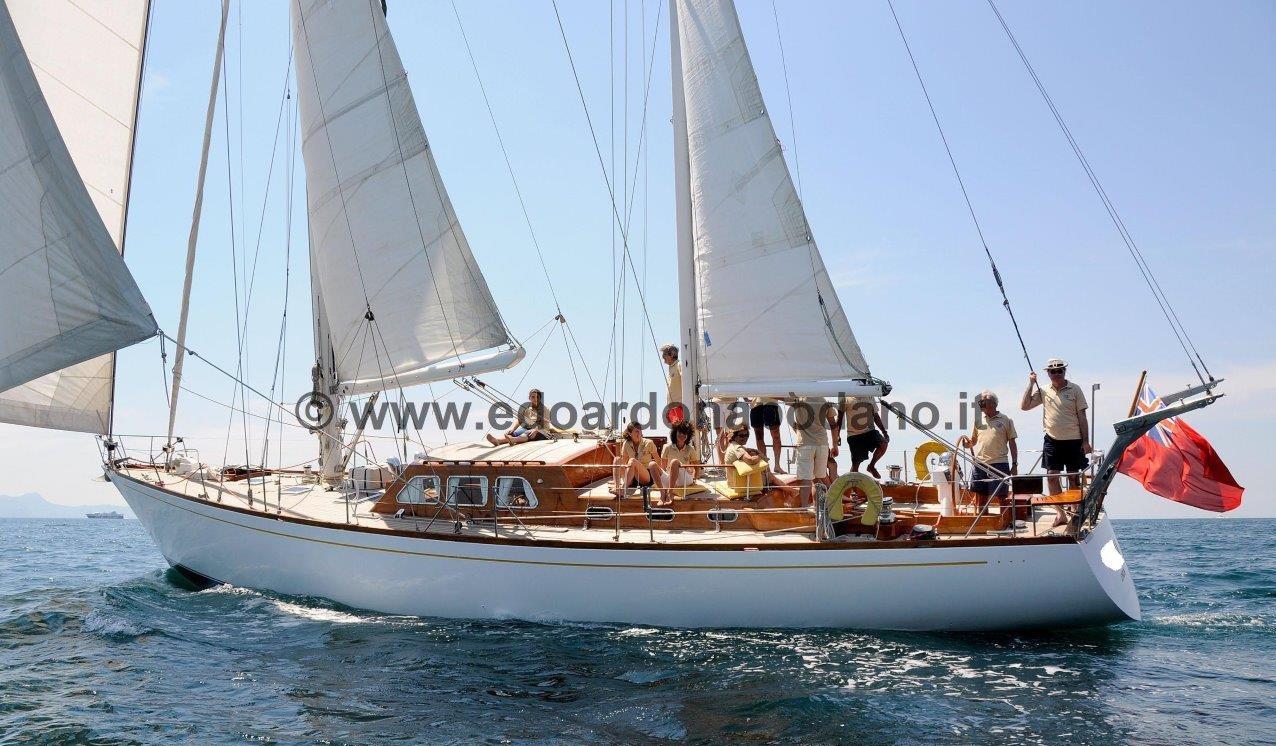

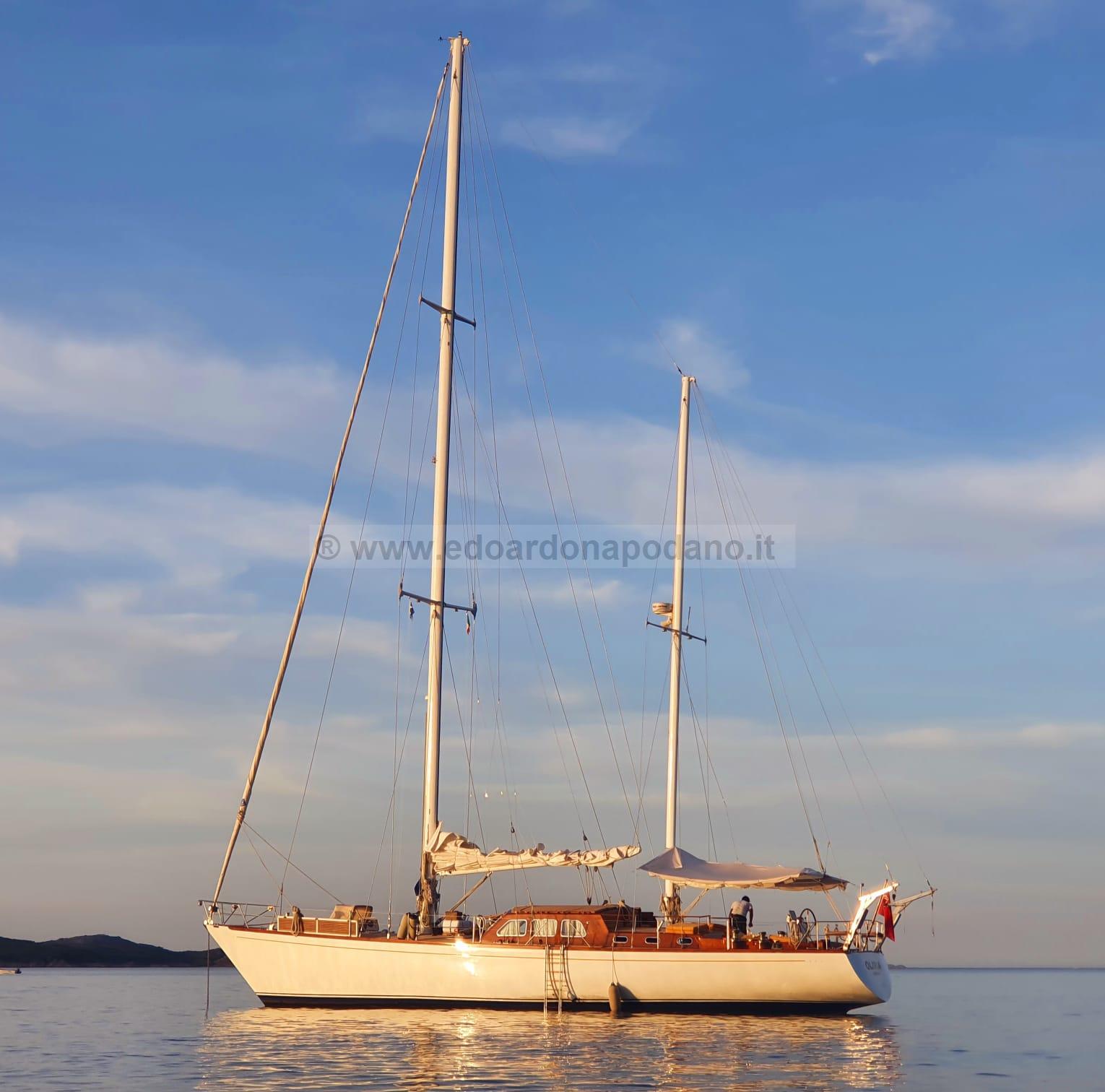

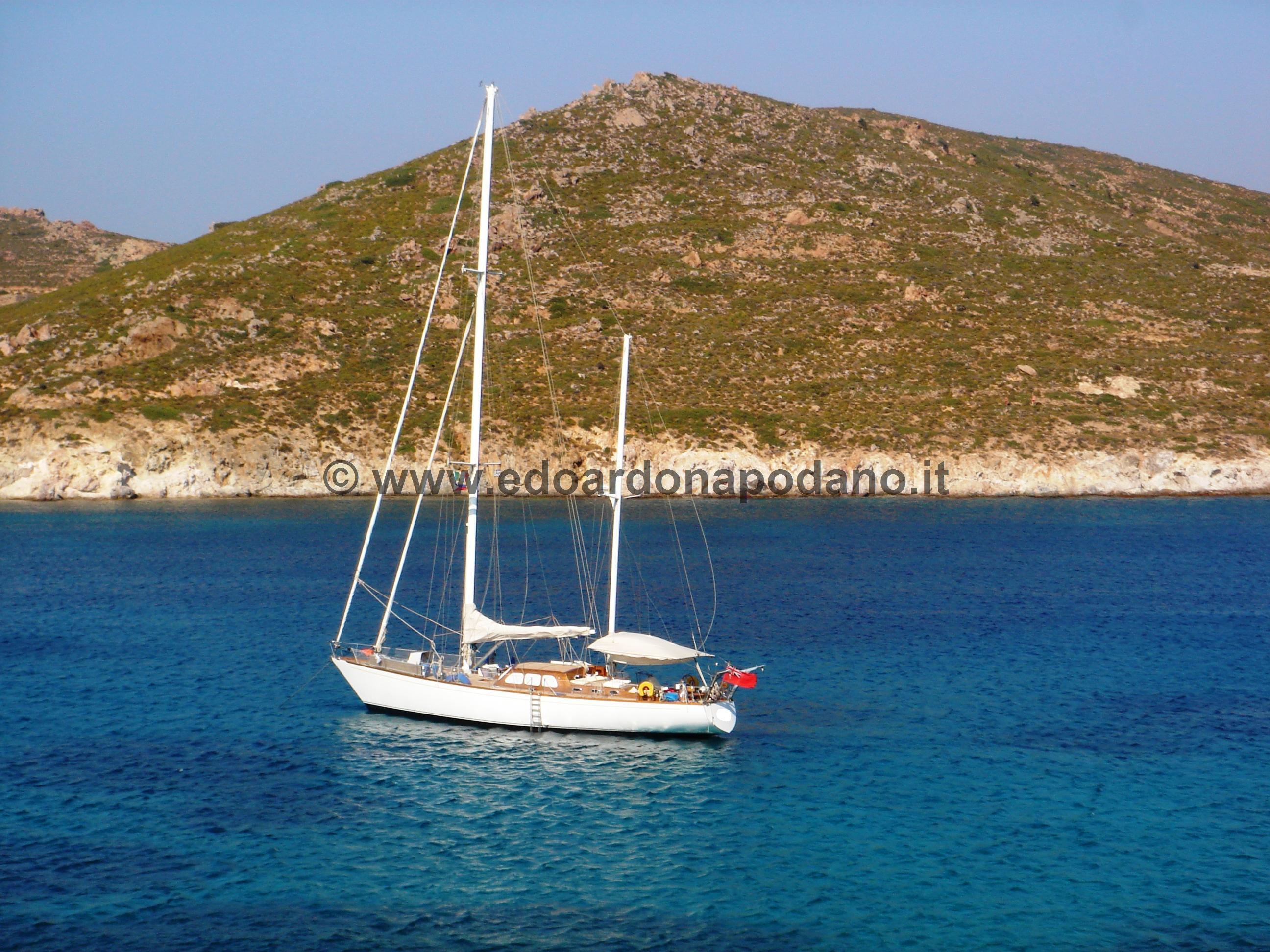

1976 Sangermani Ketch | 64ft

New teak deck 2020 please have a look at the bottom. The owner is an old friend of my mother in law. I I’ve known this yacht and her restorers for 20 years.

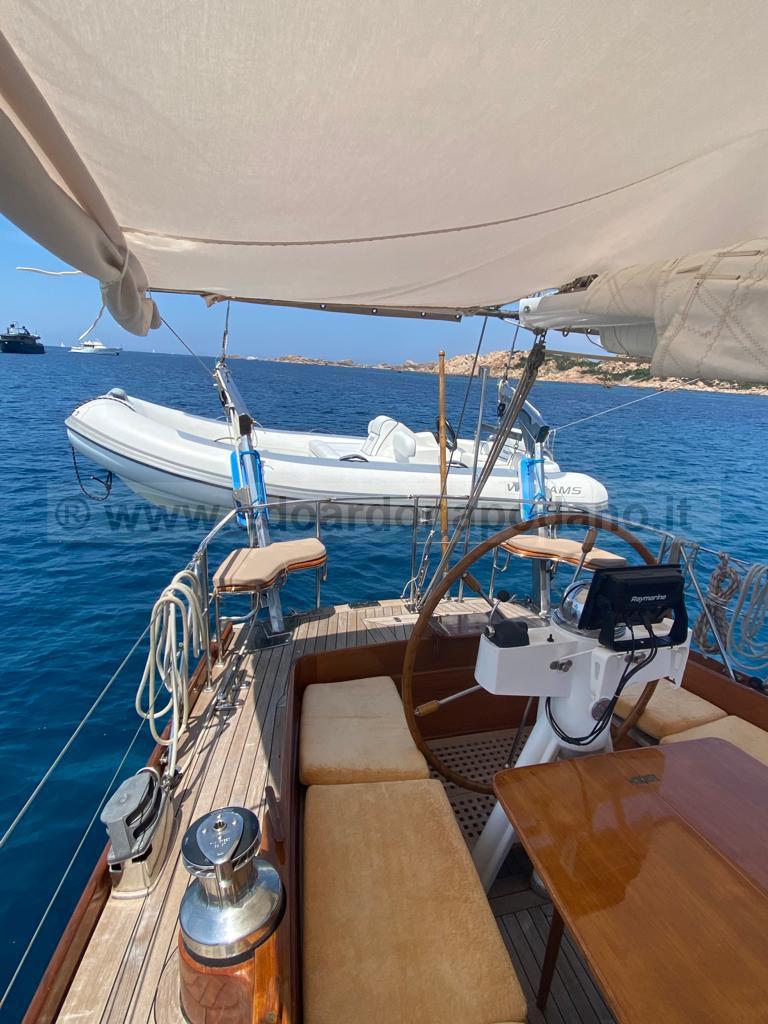

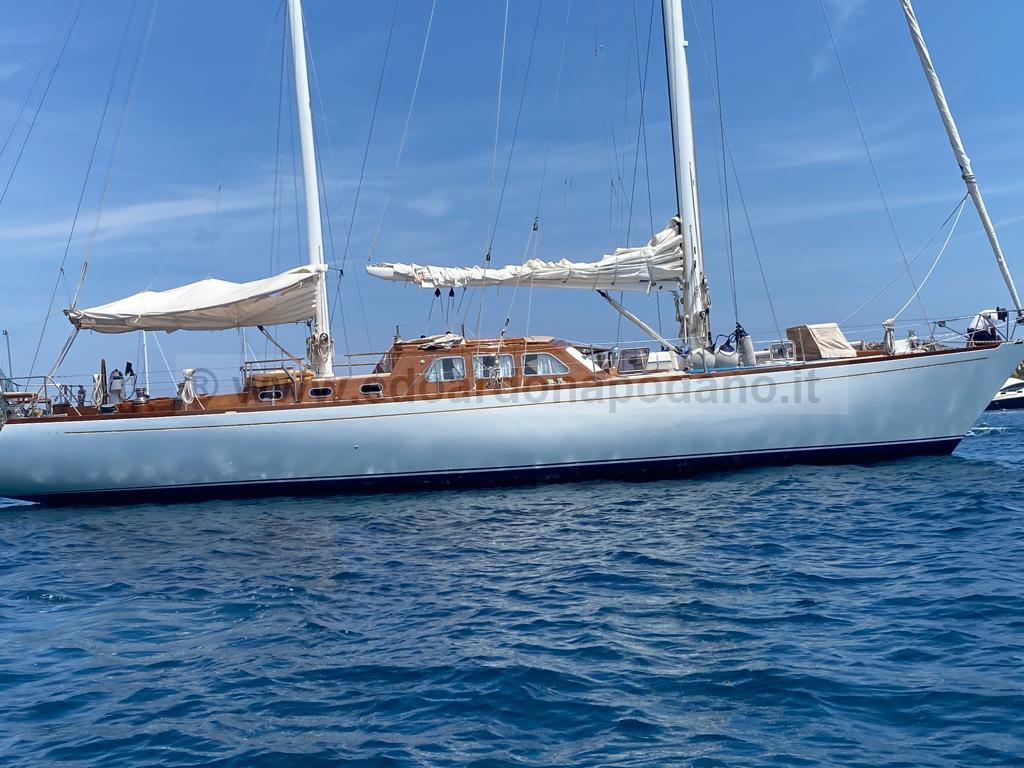

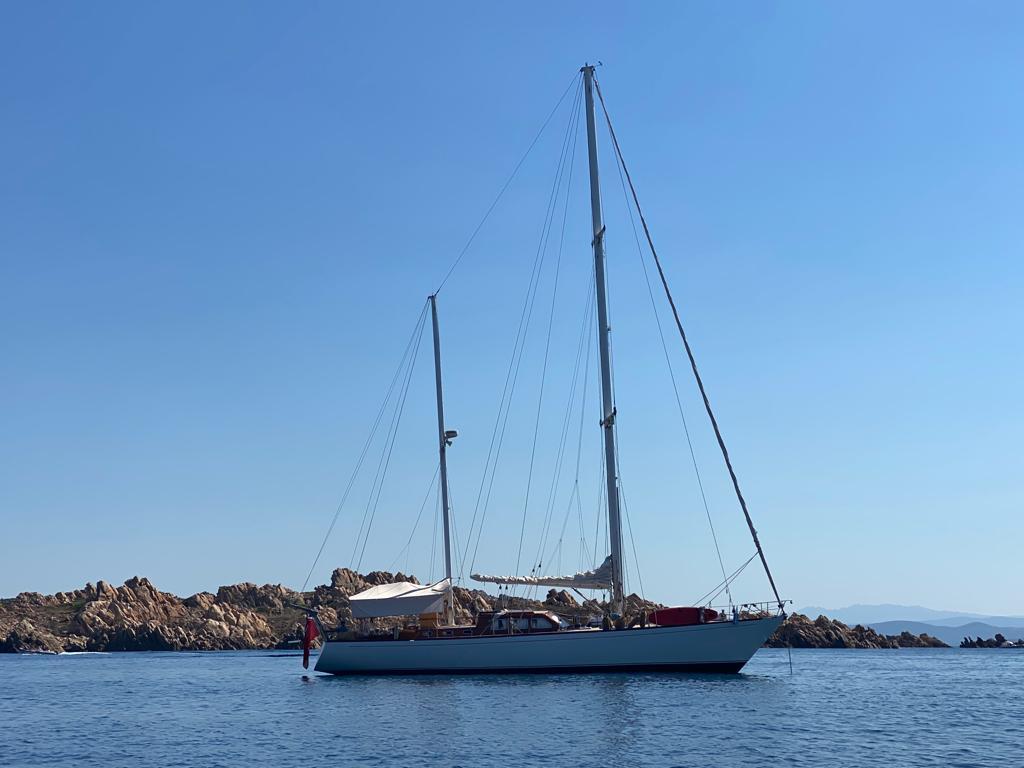

Last pics of June 2023

Works year 2021-2022

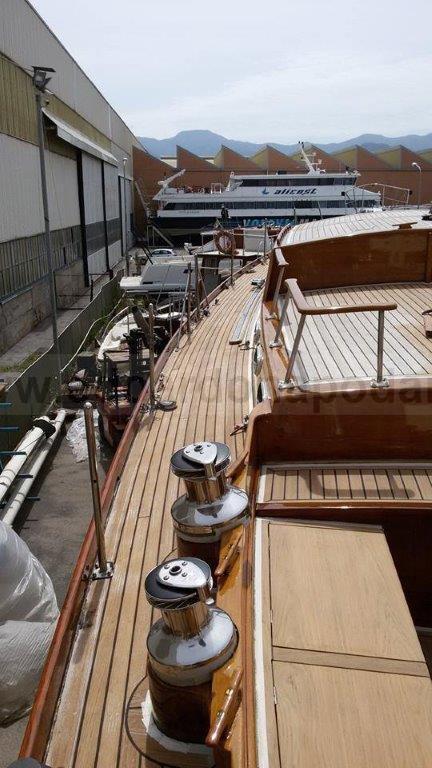

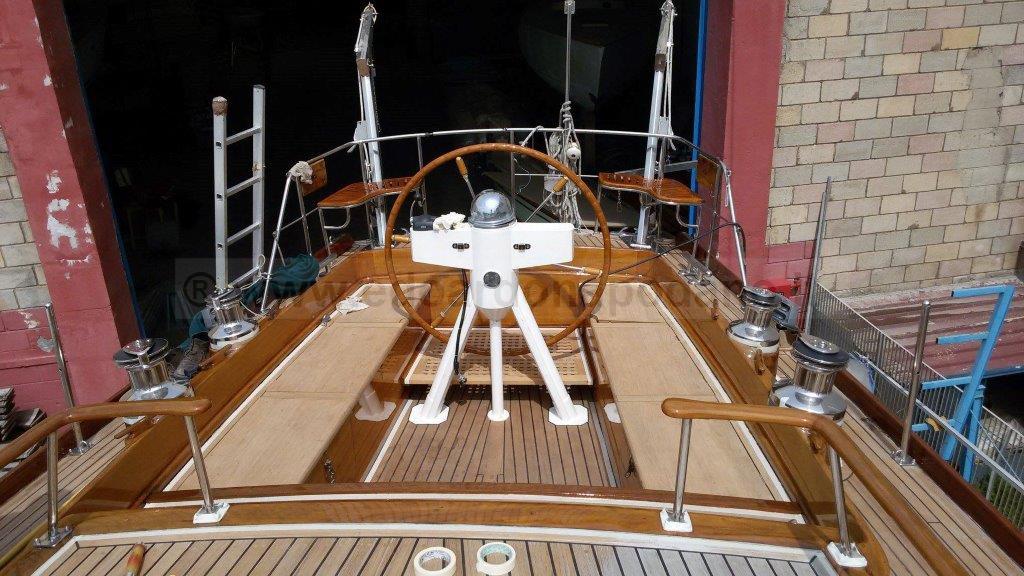

DECK
1) Rehabilitation of beams and stanchions attachment holes in rotten areas
2) Internal disassembly and reassembly for access to the beams and pins tightening areas
3) Control and reconstruction on the all chain plate ( main, jigger, mizzen, backstay, fore ) with new pins
And with new steel bars under the beams attacks
4) Marine plywood replacement and painting of the beams structures before assembly

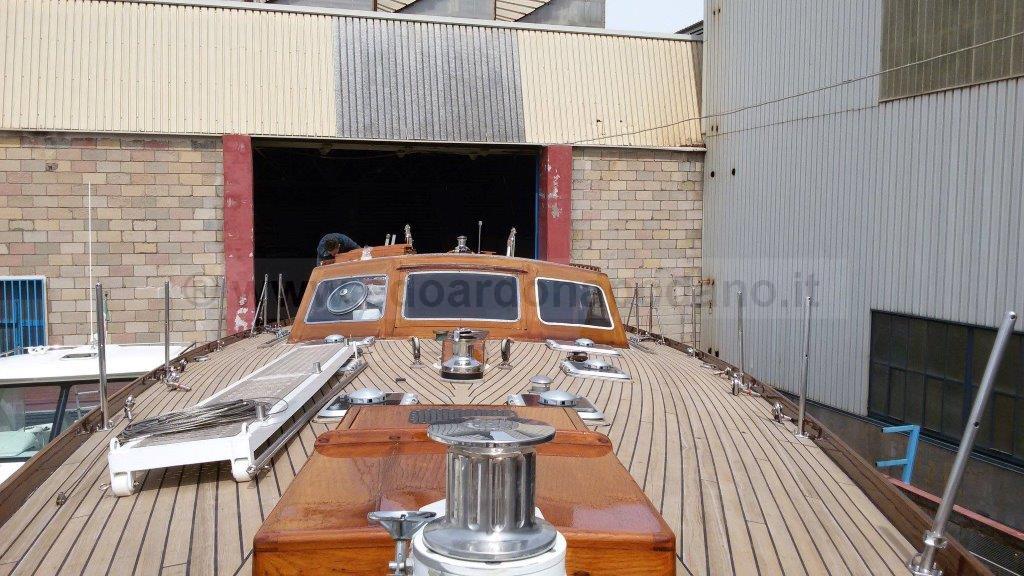

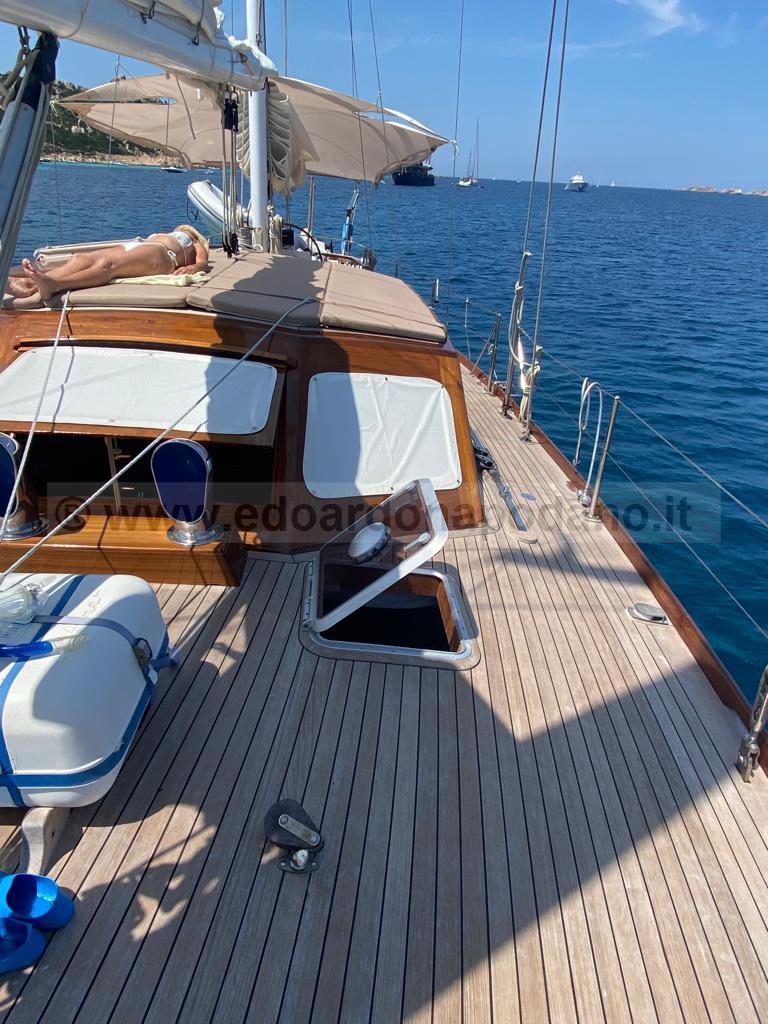

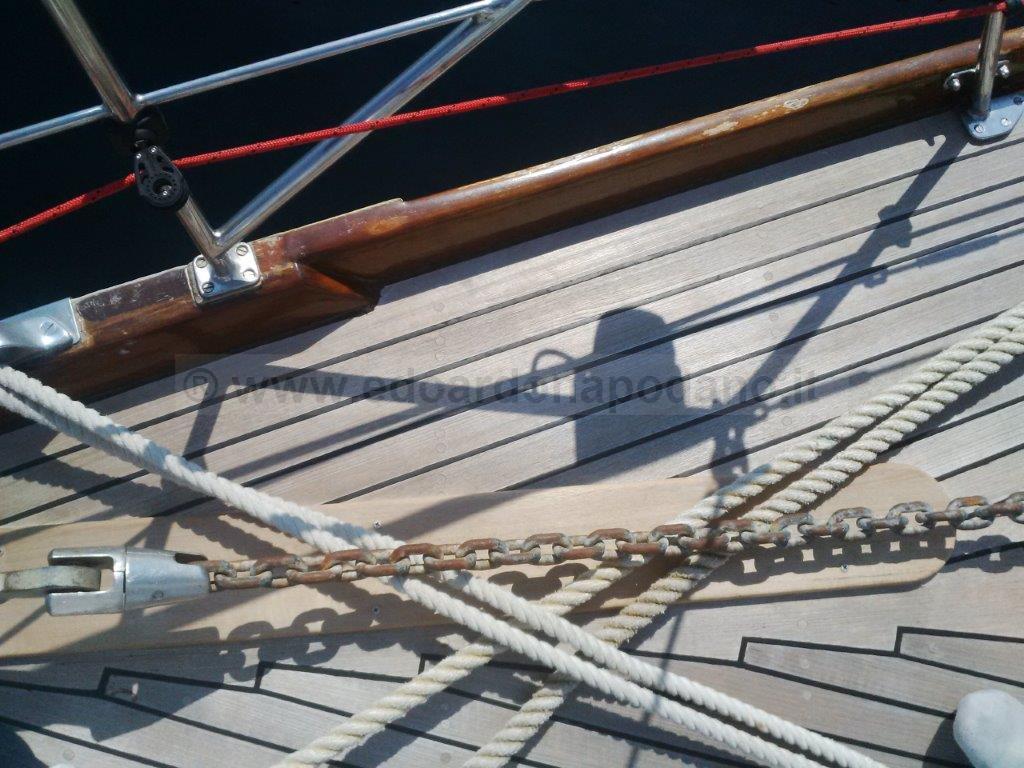

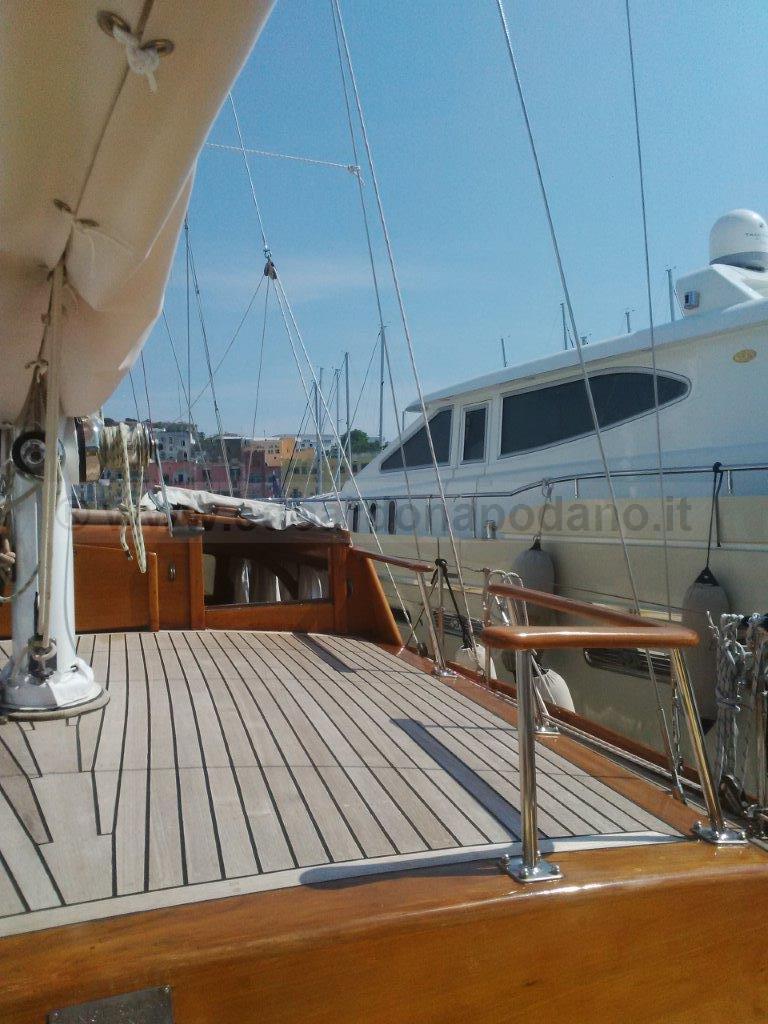

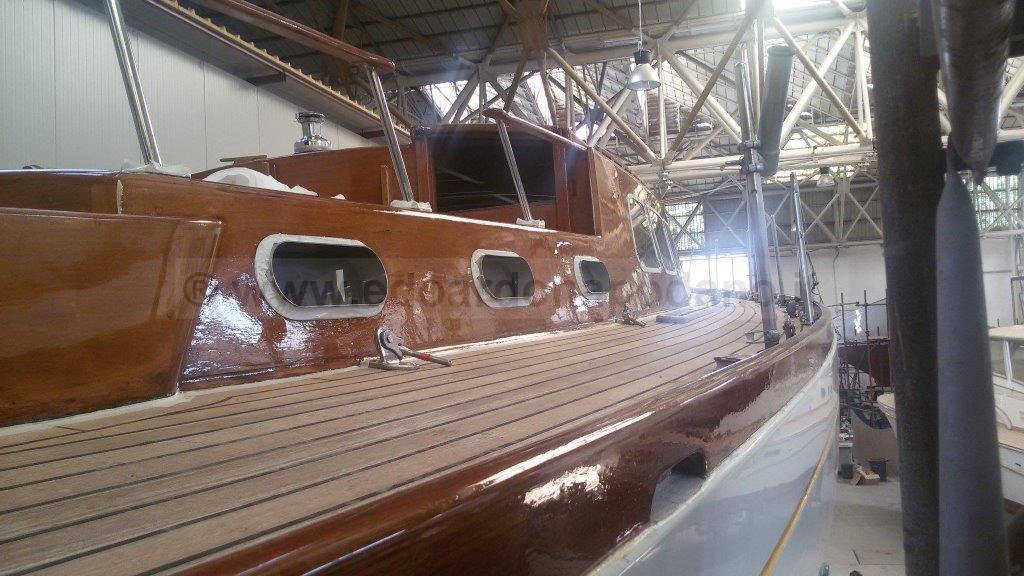

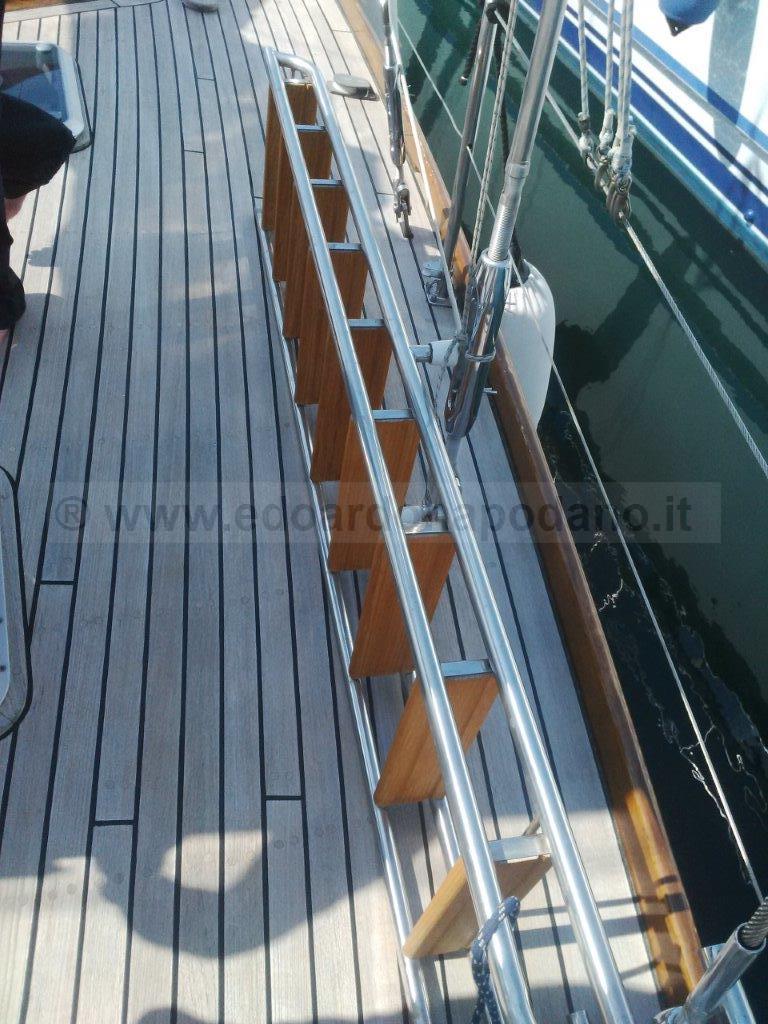

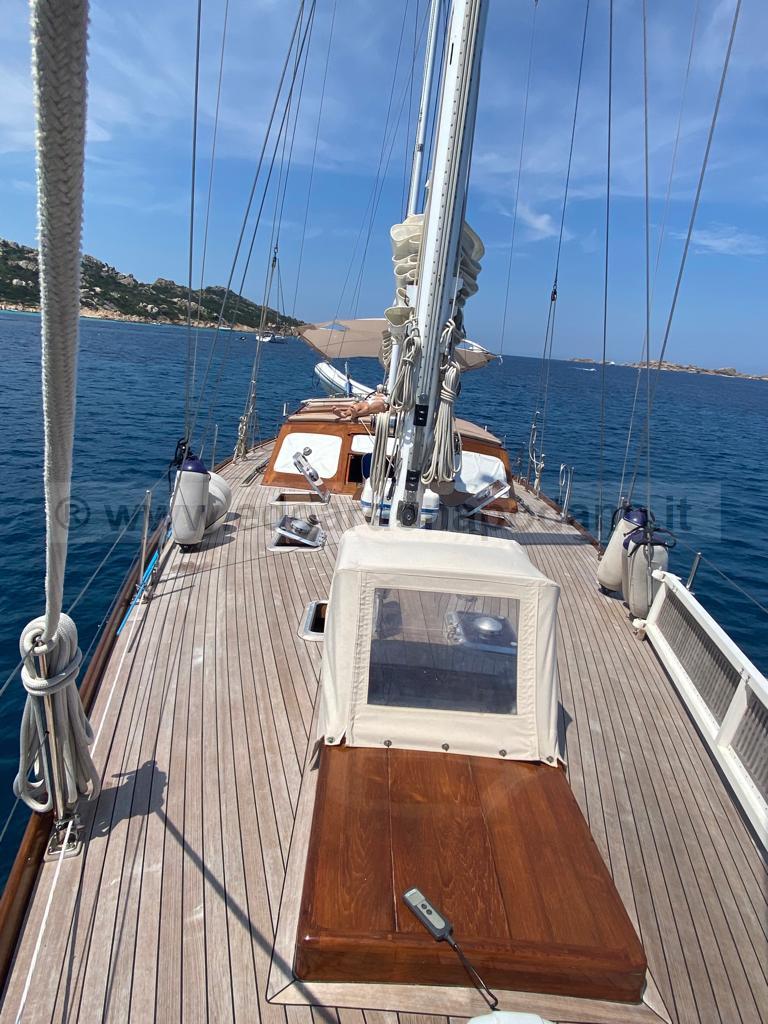

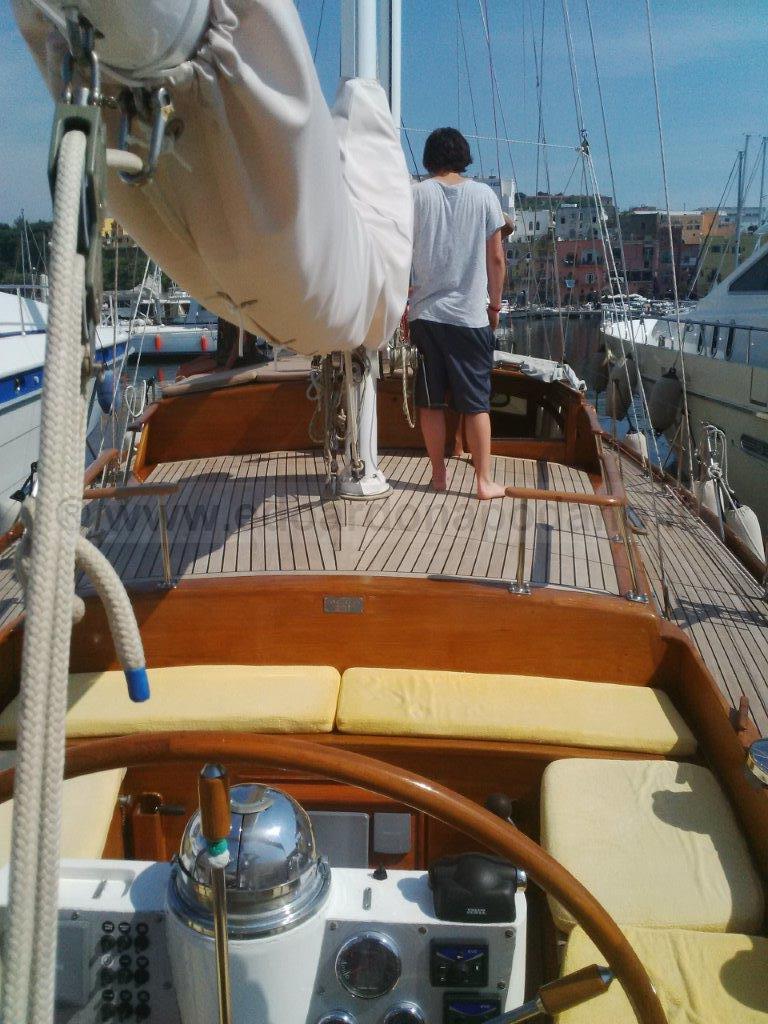

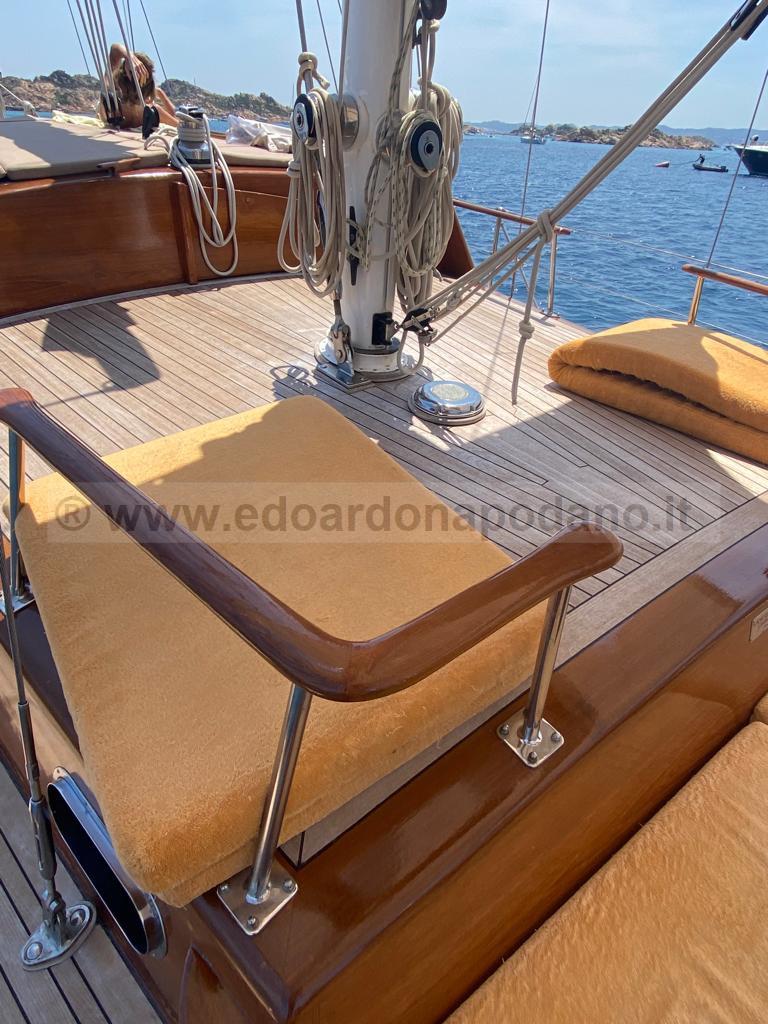

5) New teak deck 15 mm thick

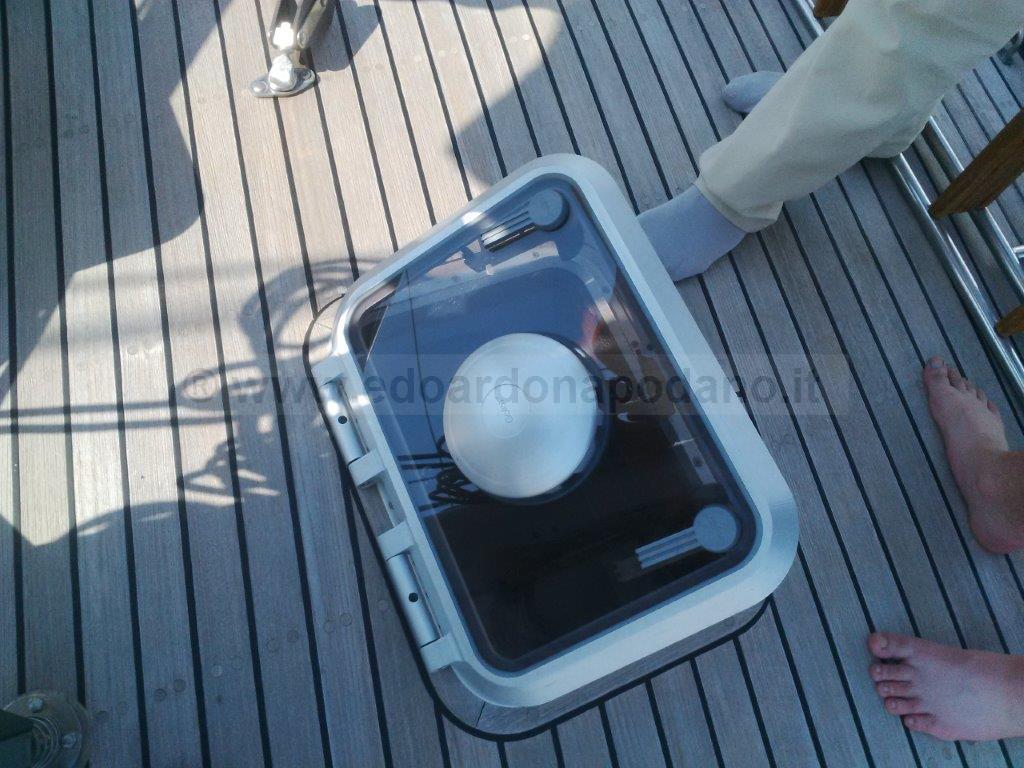

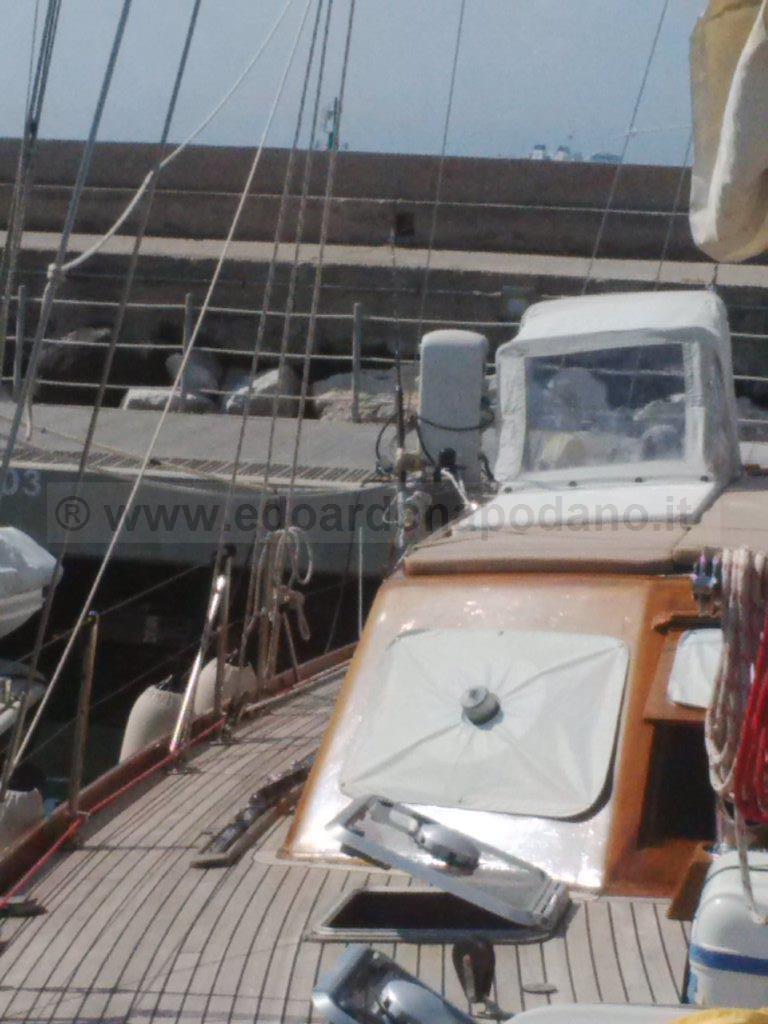

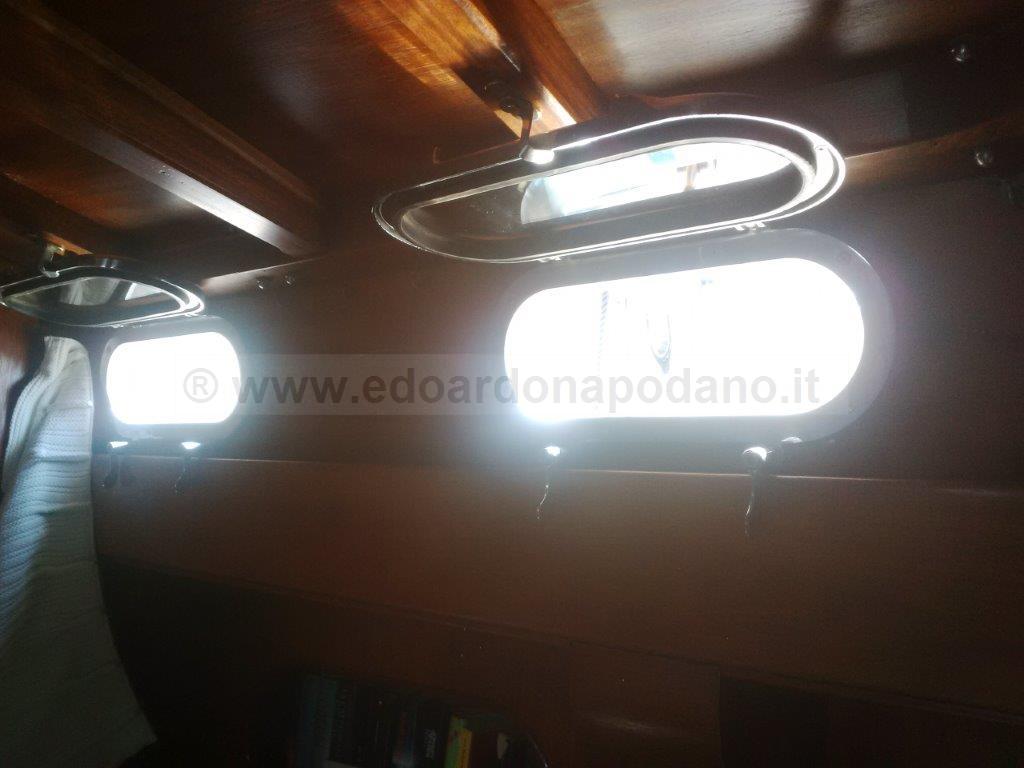

6) New manhole on the deck. New 6 porthole in the main cabin.
7) New teak internal panel of all manhole

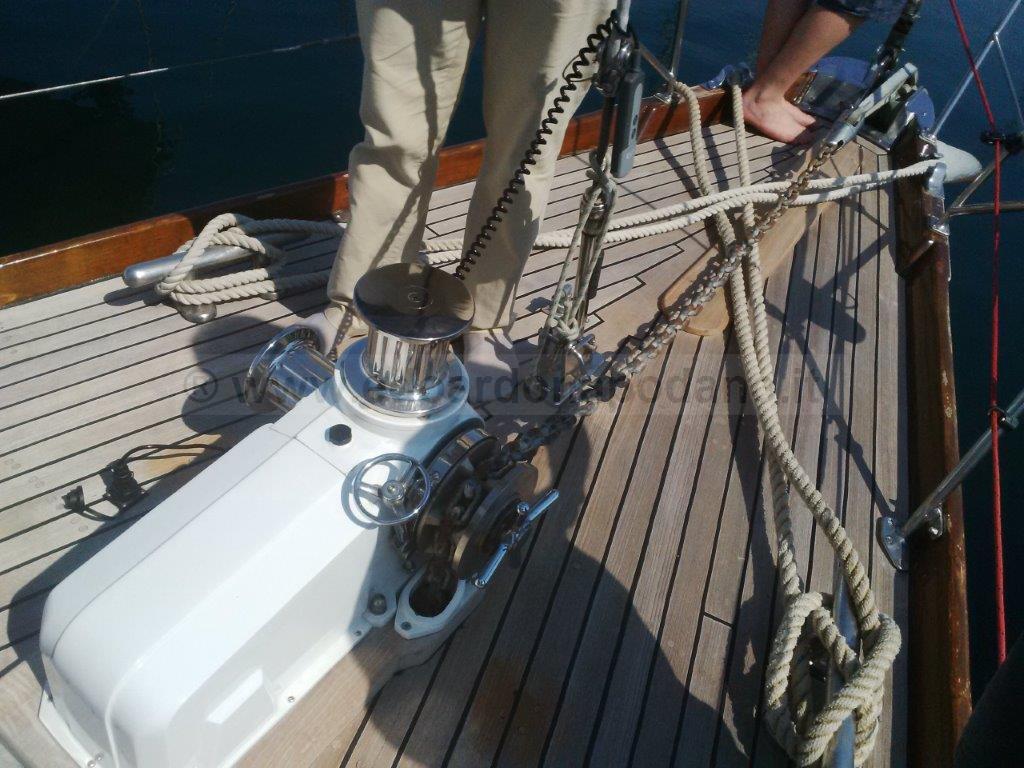

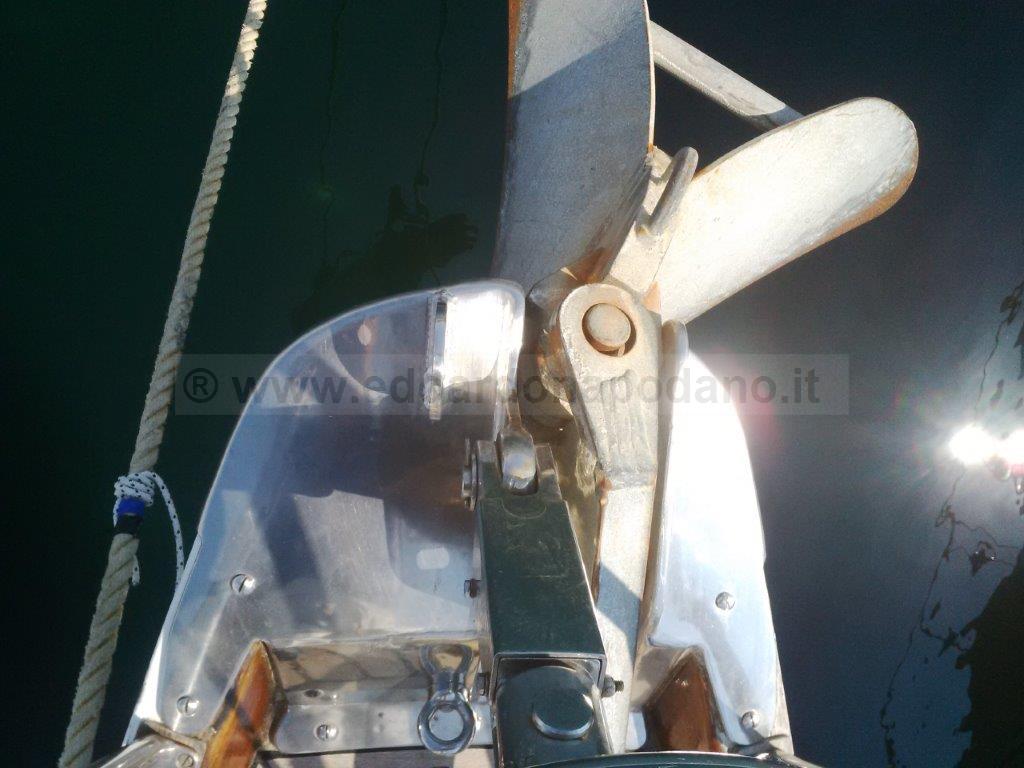

Bow anchor winch : overhauled, painted, chromed

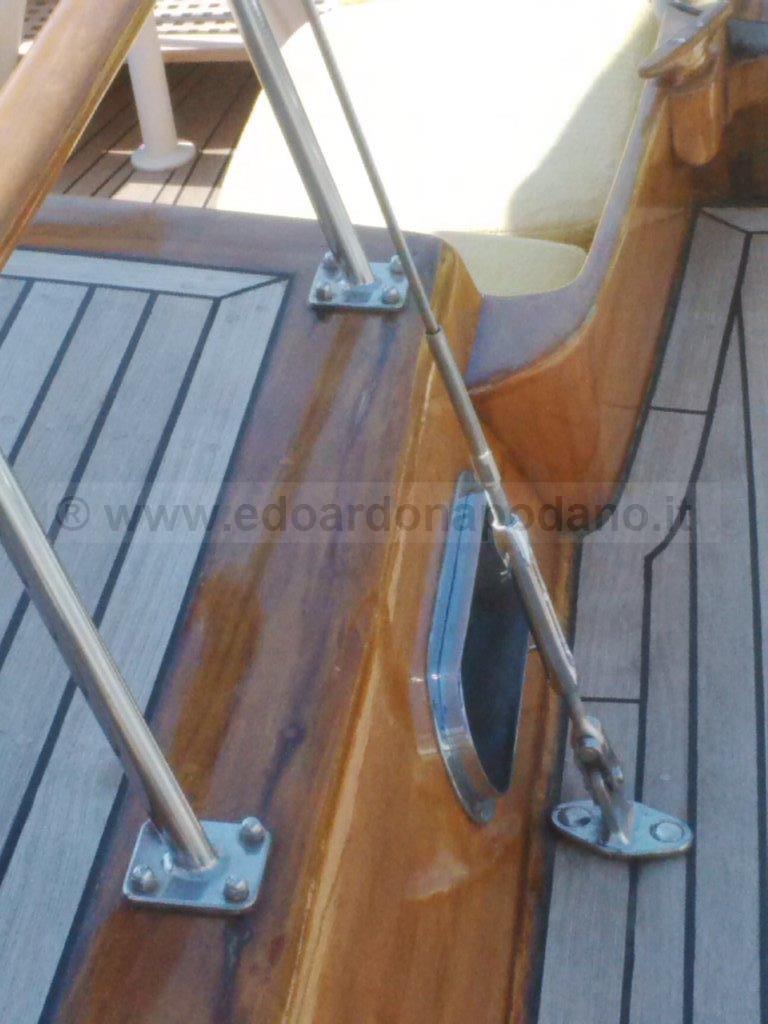

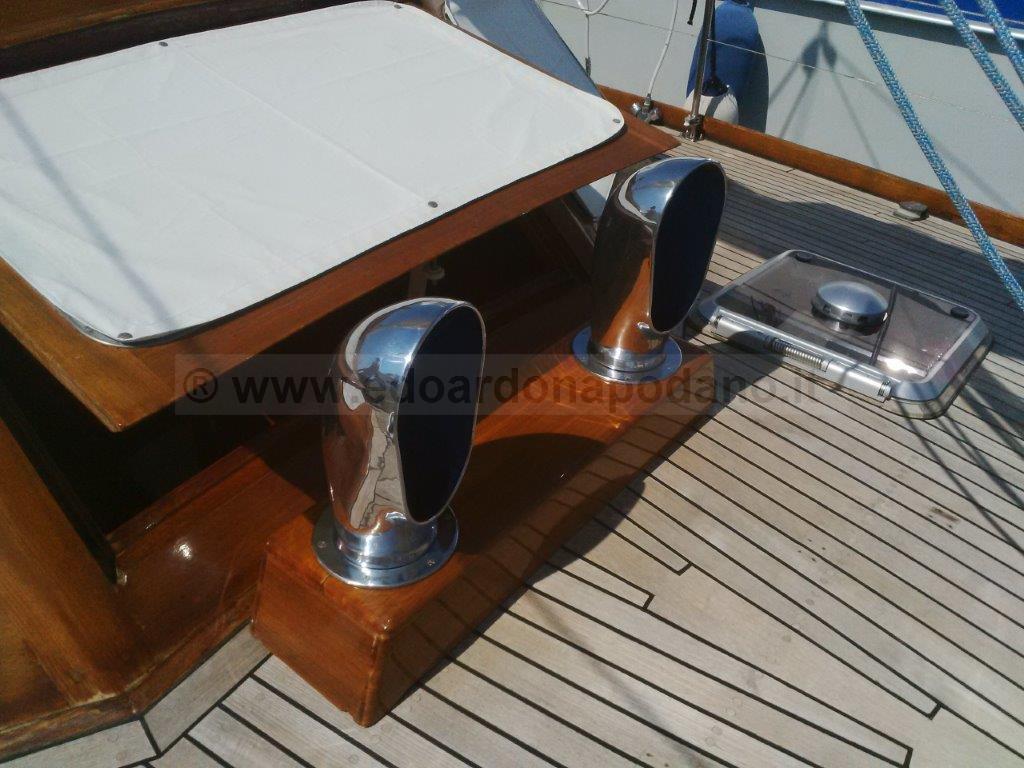

9) Chrome plating, vents polishing, stanchion + new fixing pins
10) Rails return ropes for Genoa or Jib : all new Pins with reinforcement under the rails
11) Removal of star mirror paint

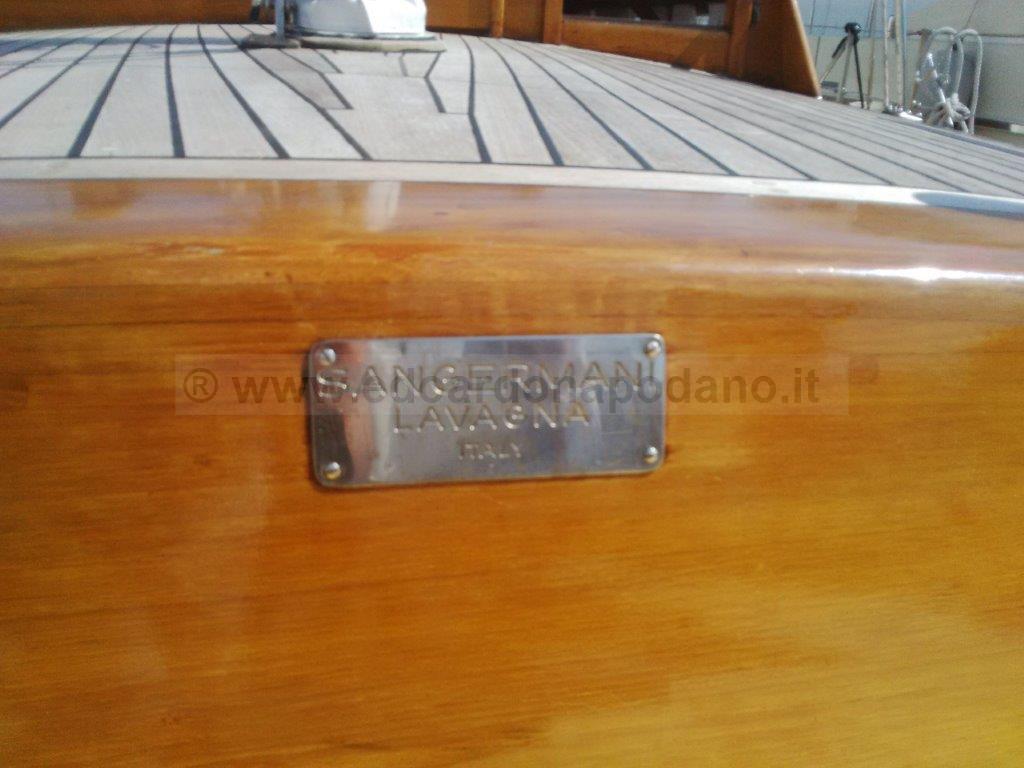

12) Stripping-painting of the entire deck copal, sanding, application of n. 10 coats of copal
EPIPHAN On the whole boat ( gunwale, bow tanbuccio, aft cockpit)

RUDDER 2022
1) Disassembly and assembly stern wheelhouse
2) Pull-out of the rudder
3) Rudder stripping and reconstruction
4) New rudder attack with new insert
1

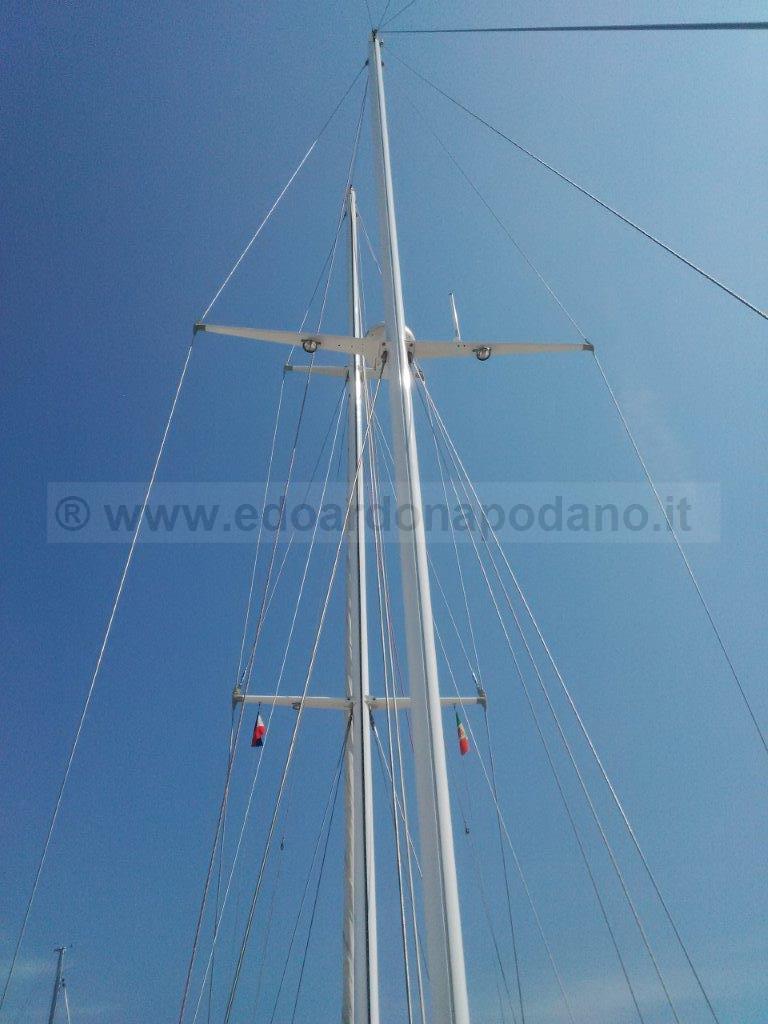

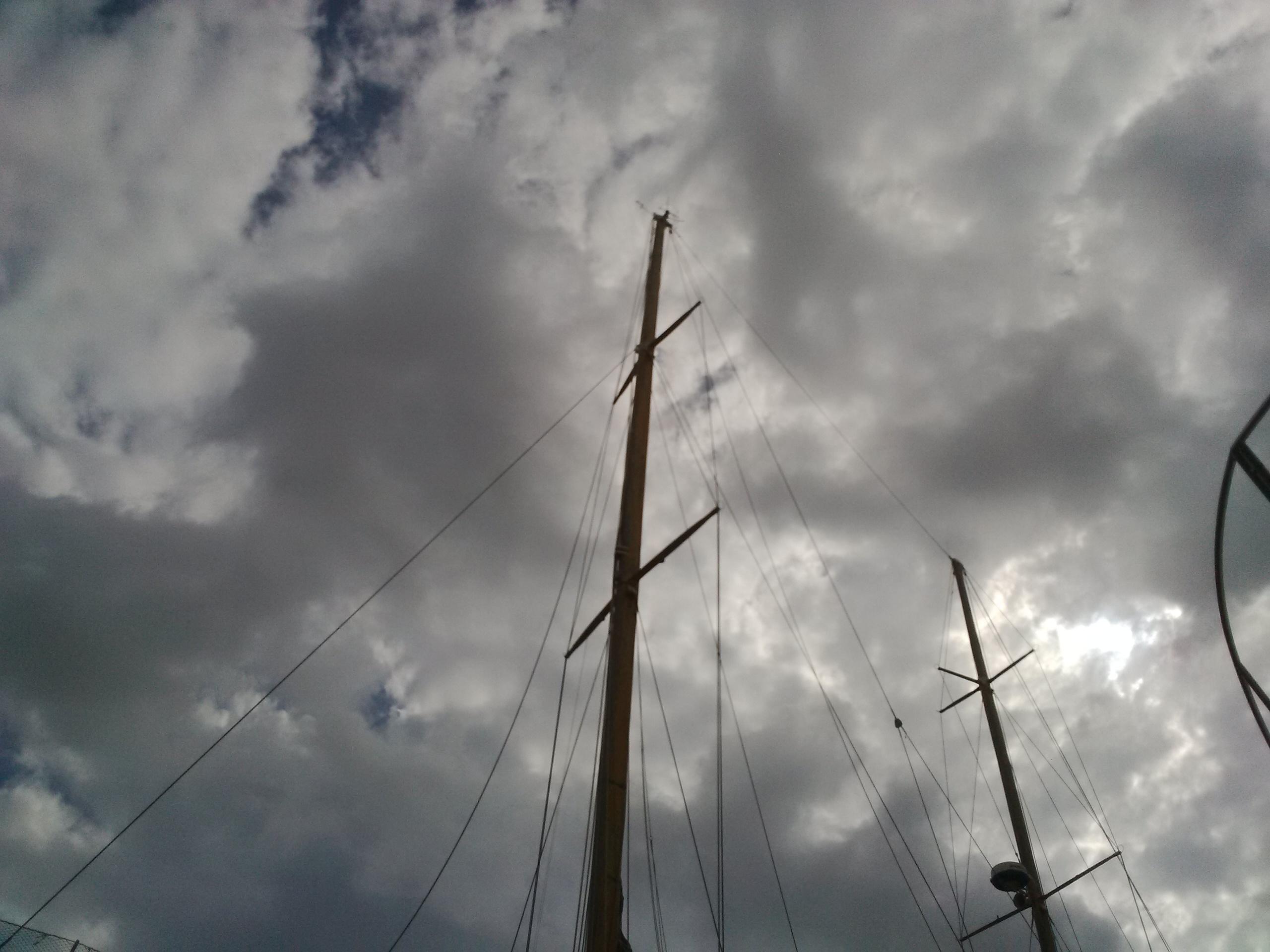

MAST and BOOM 2022
1) Masts disembarkation and embarkation
2) Disassembly and assembly of all equipment from the masts and booms
3) Painting of masts and booms

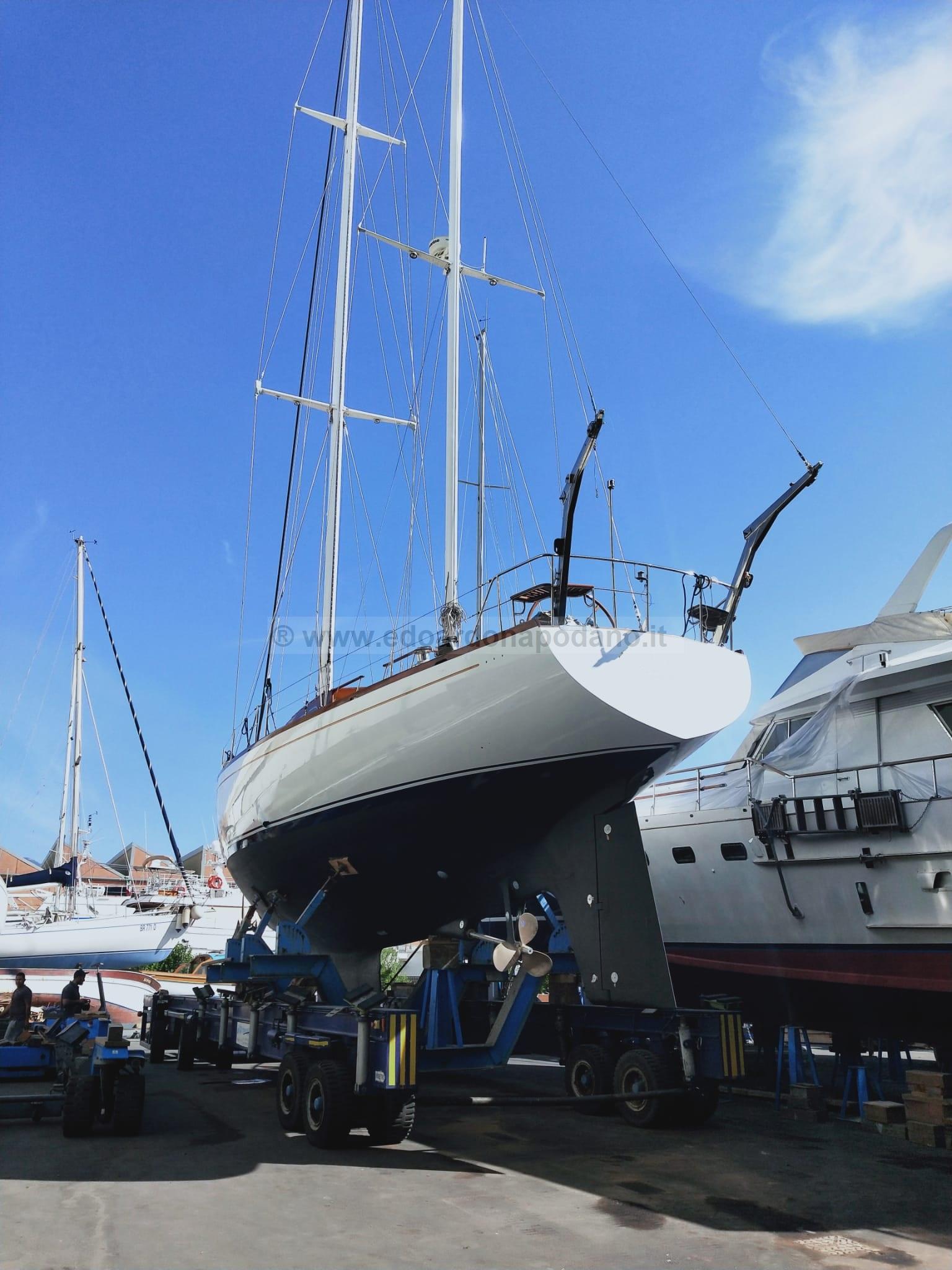

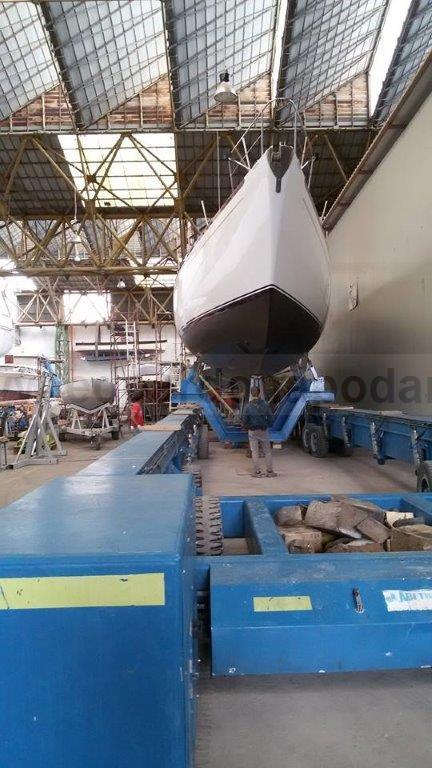

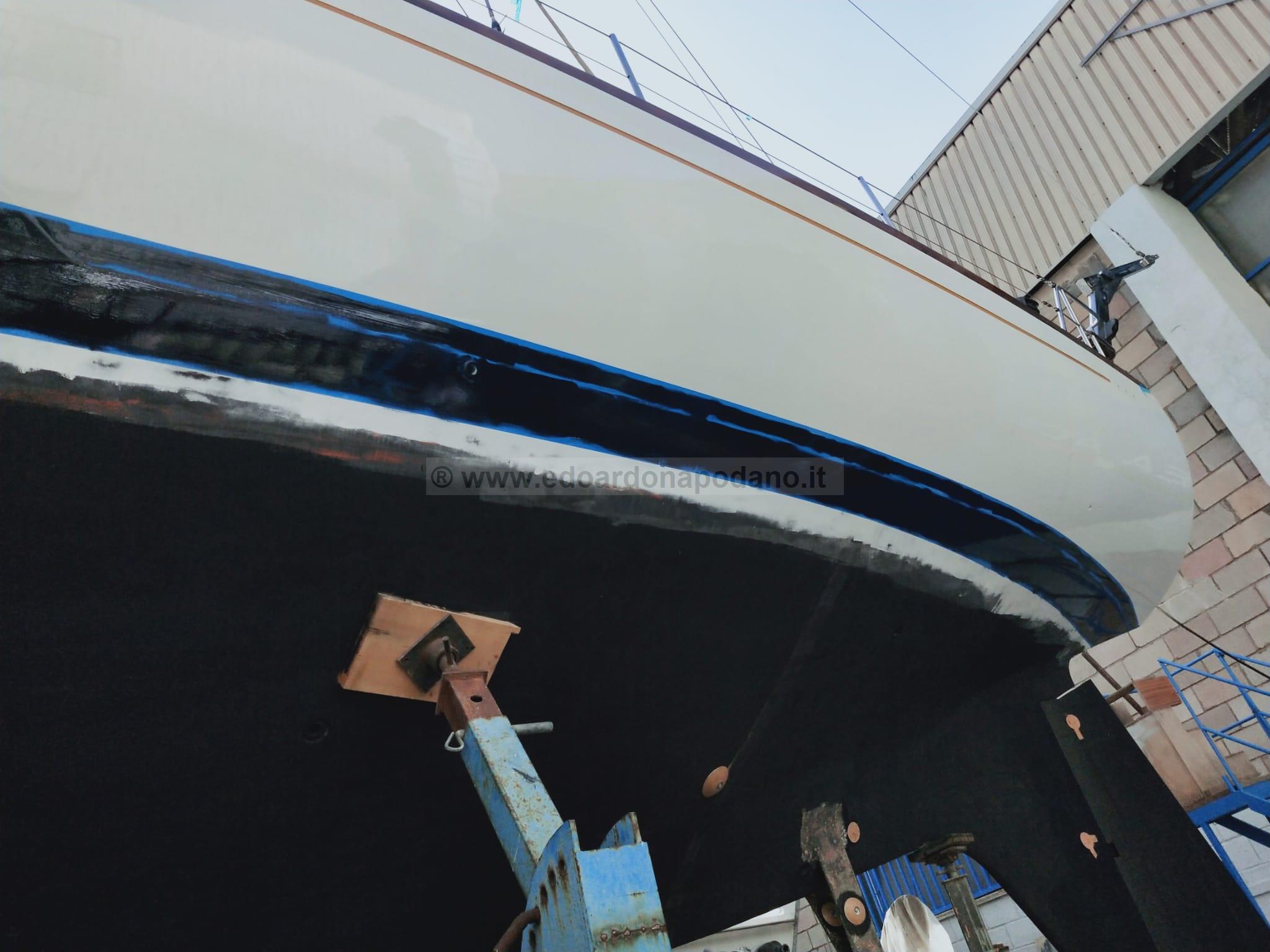

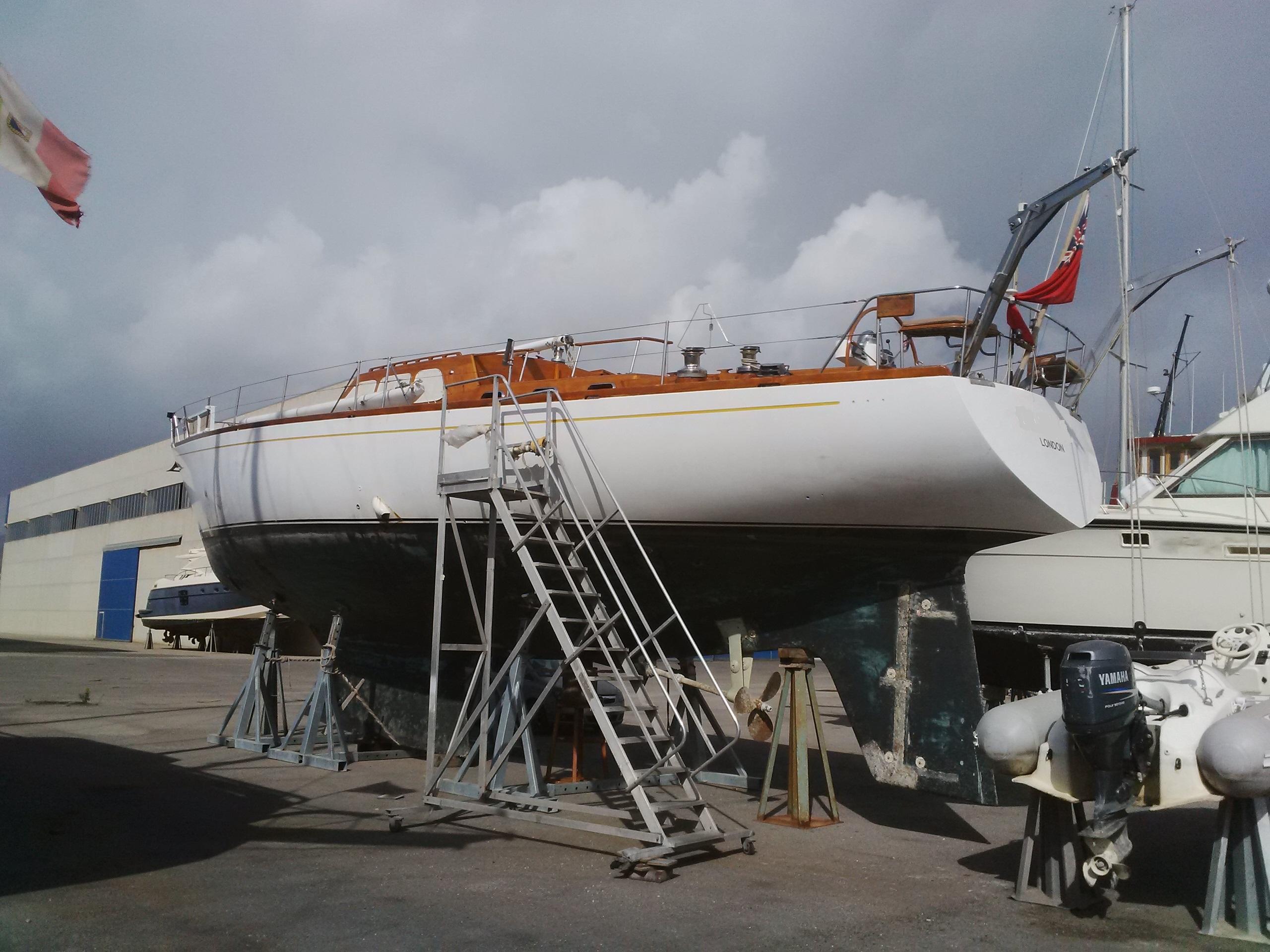

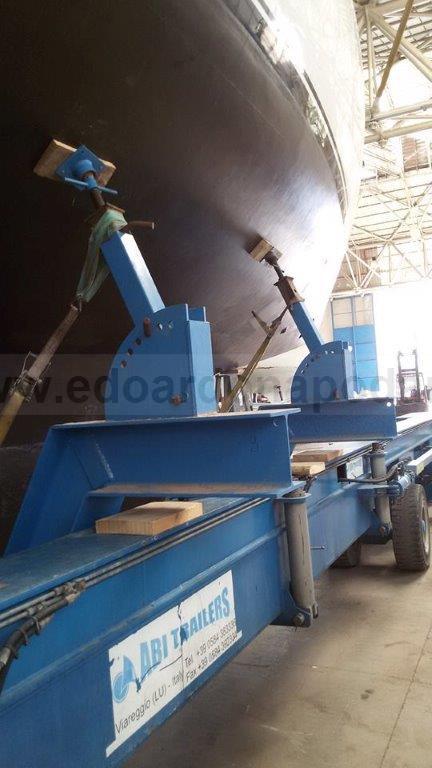

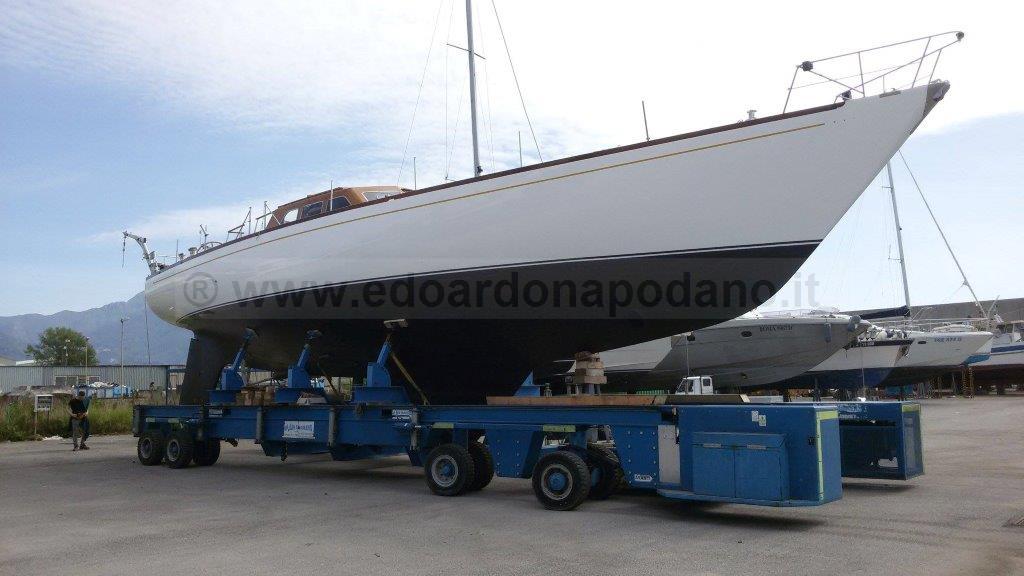

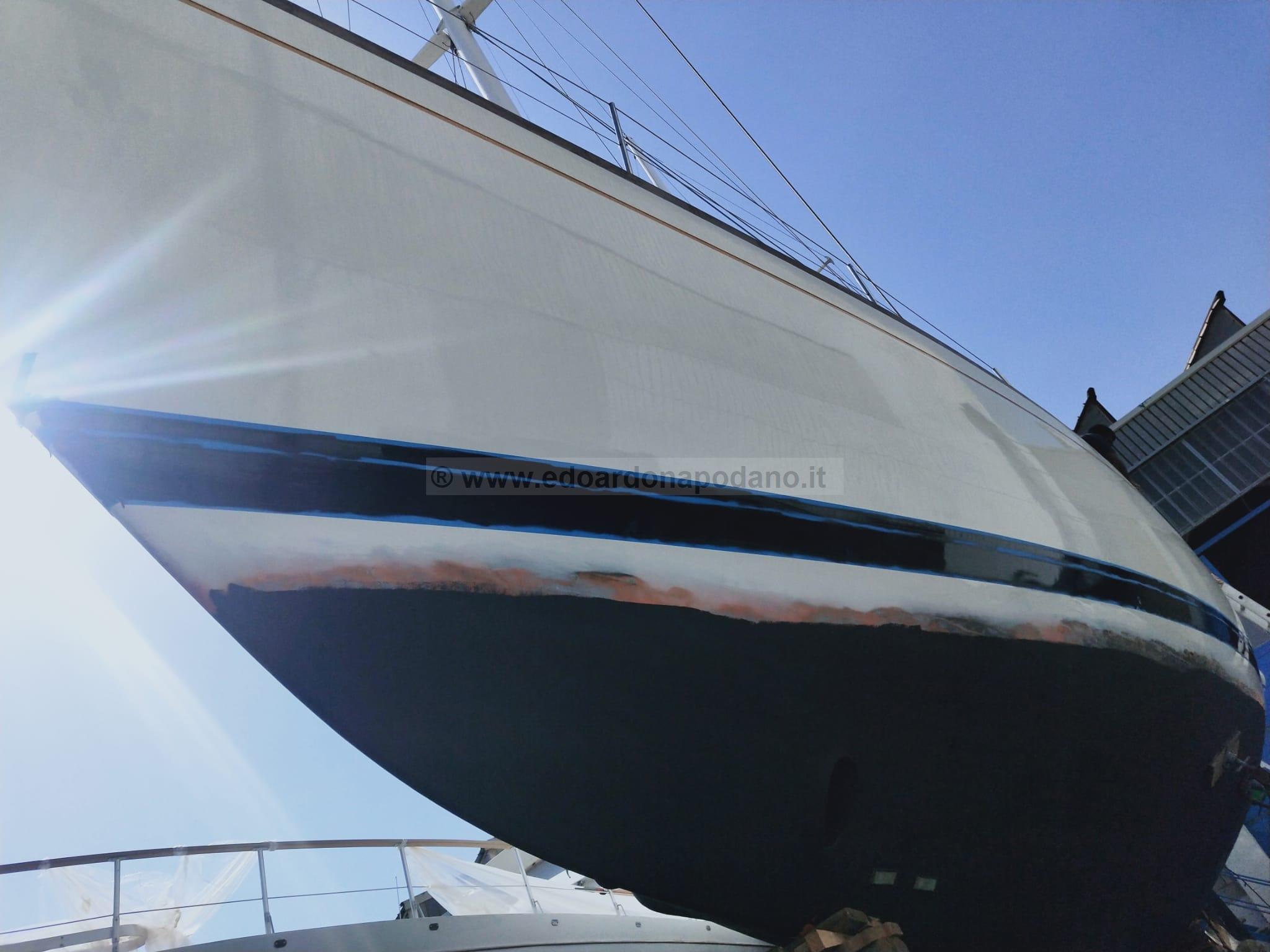

Quickwork 2022
1) Stripping all painting and repairing with tightening in some points
2) Caulking, painting and antifouling painted

Shaft line transmission 2022
1) Disassembly of shaft line with propeller
2) Propeller balancing
3) New shaft and new homokinetic joint water drive and bearing
4) Seal PSS 60 and bushs

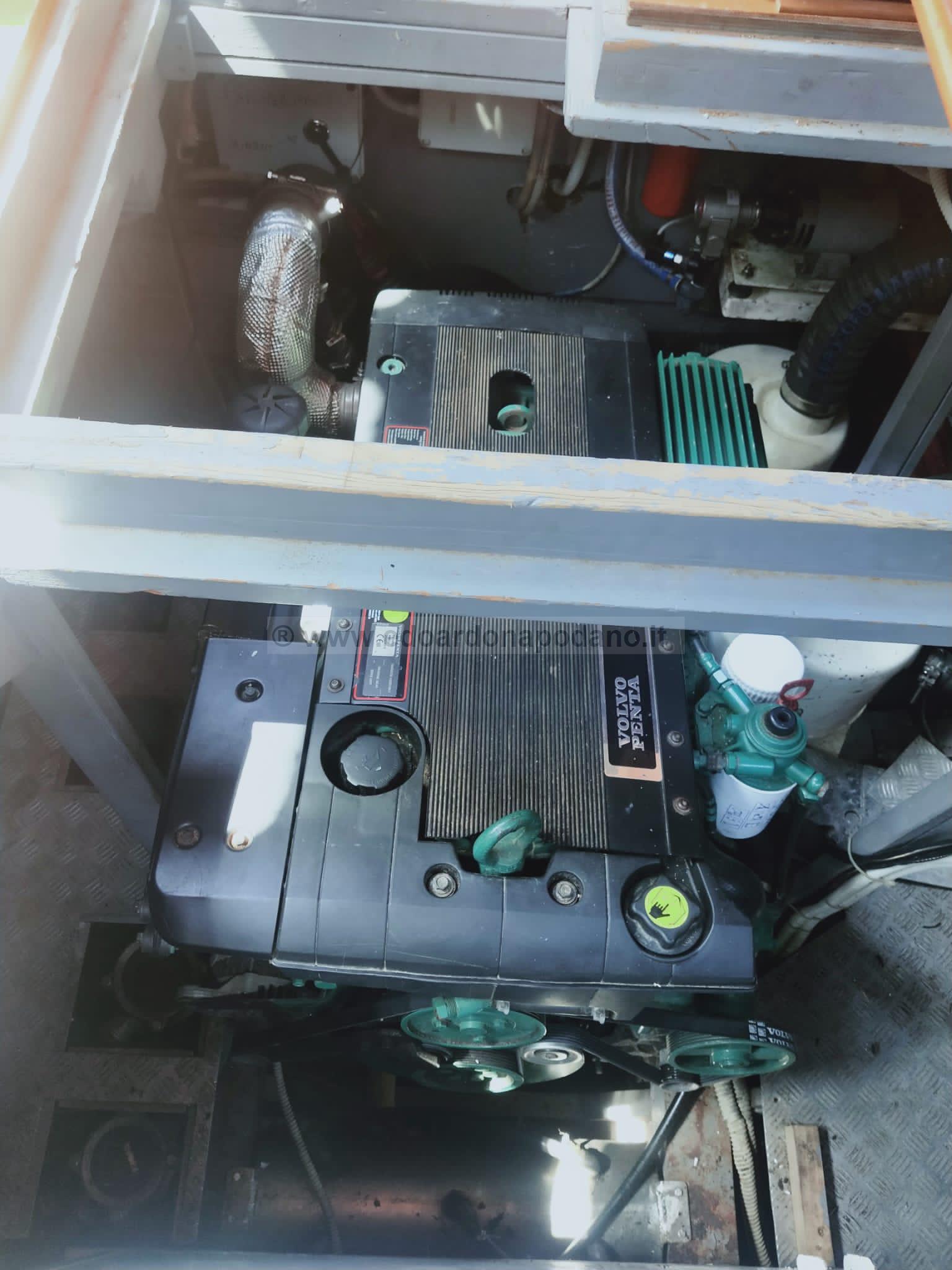

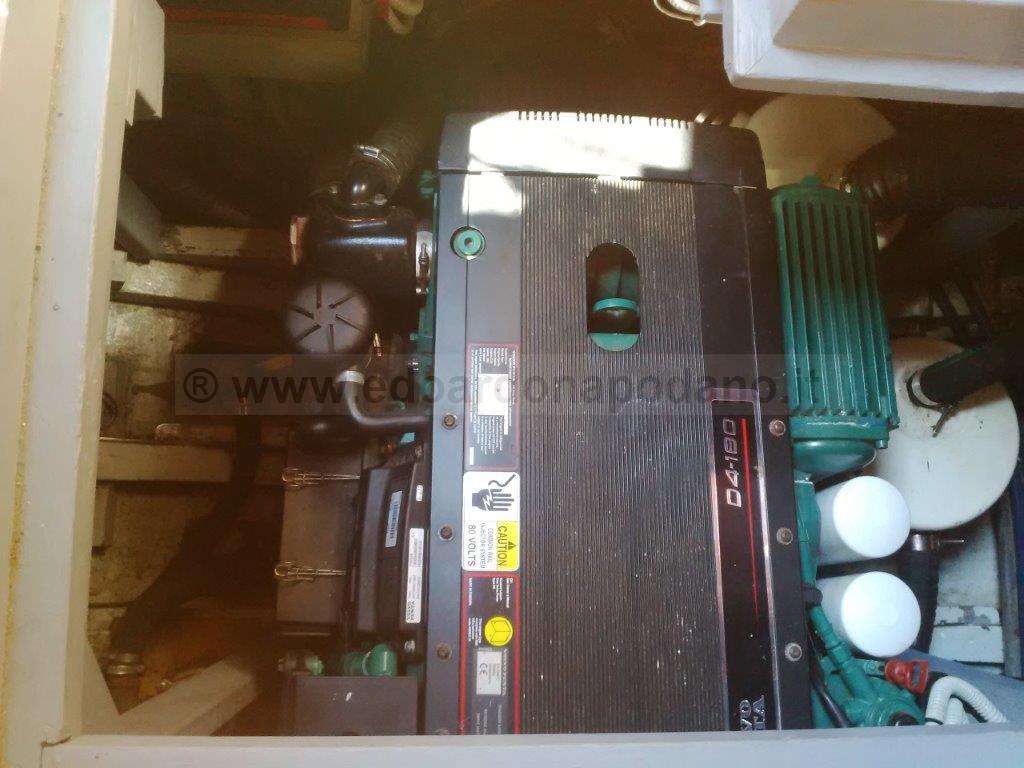

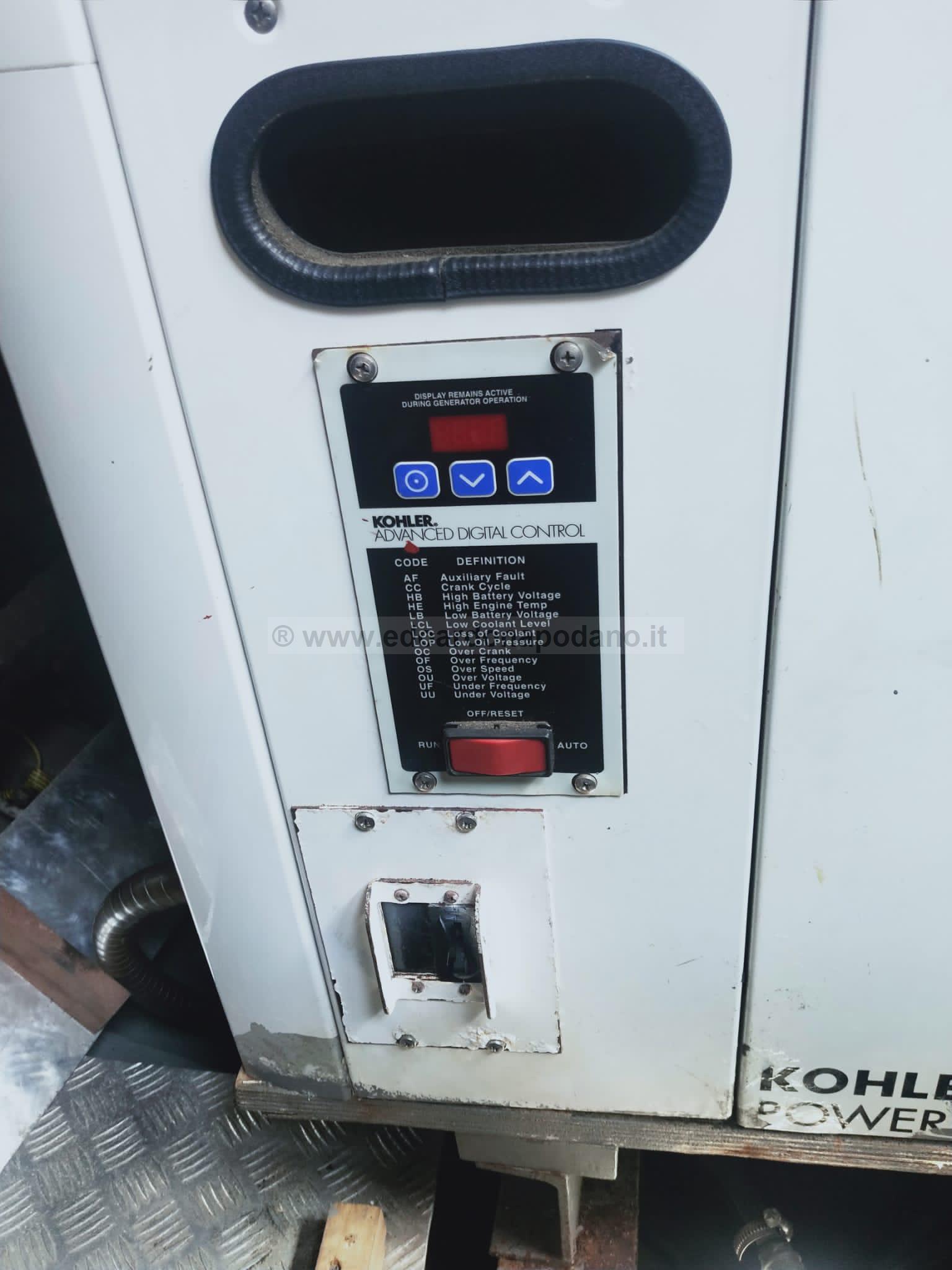

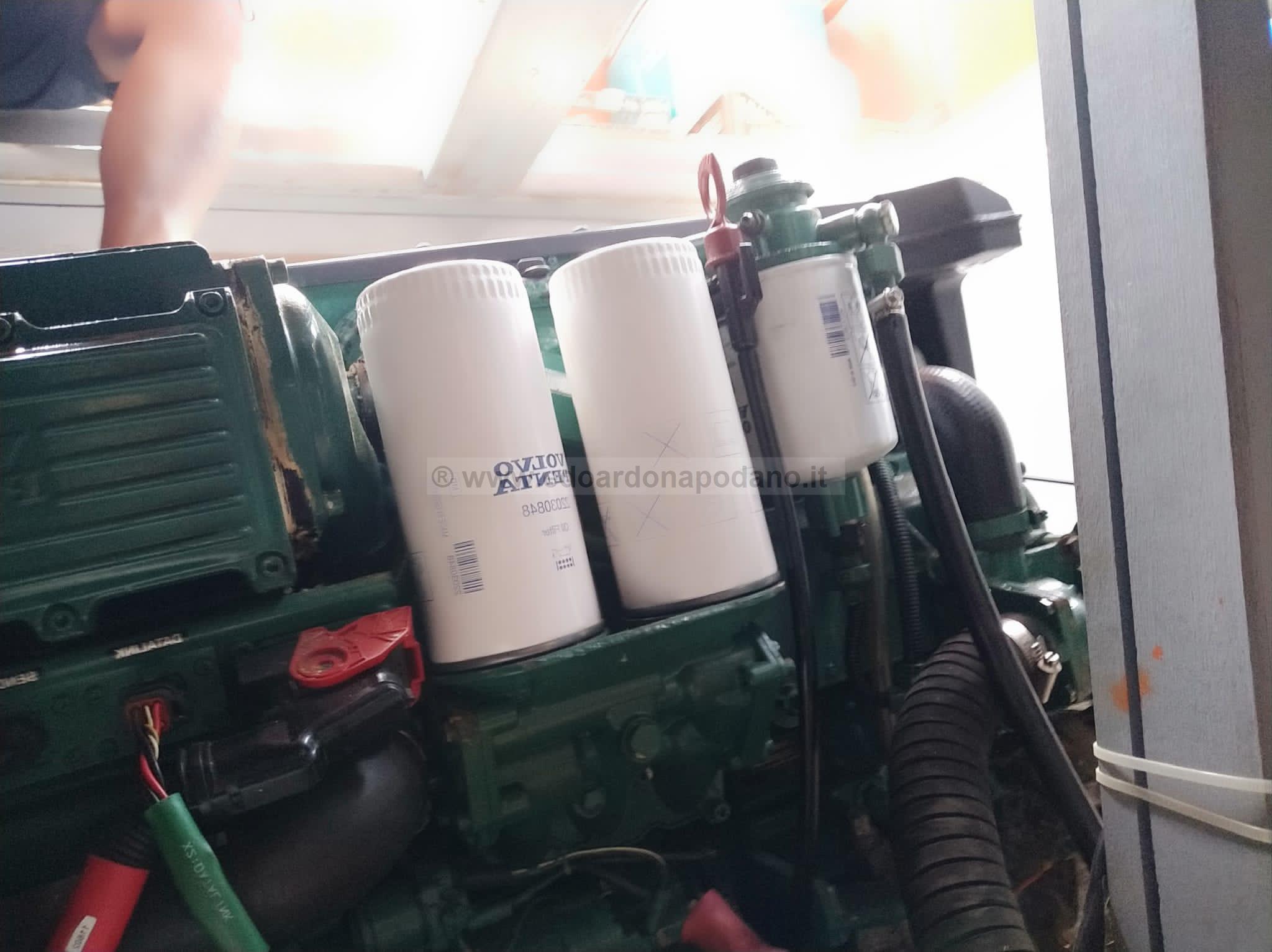

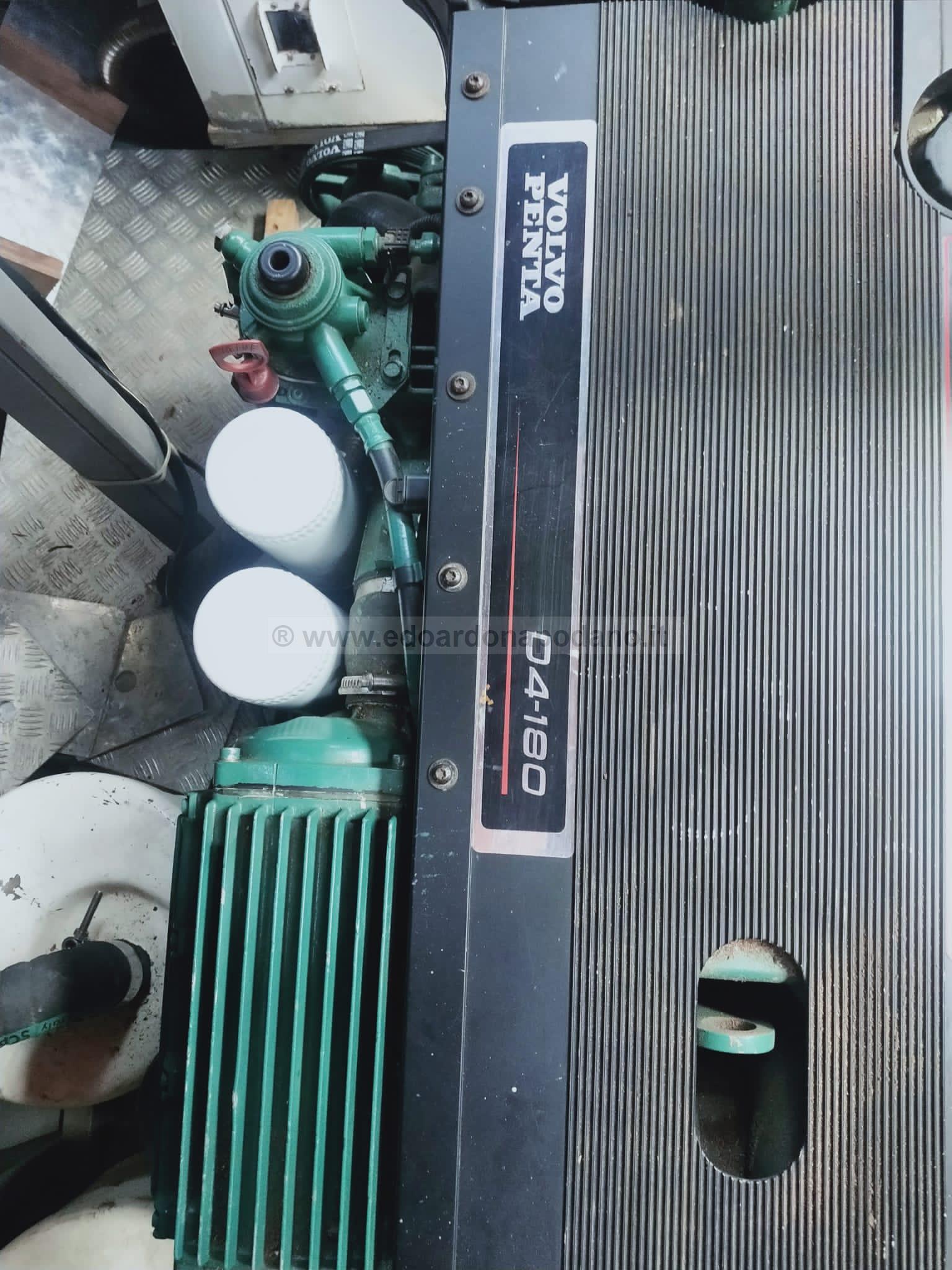

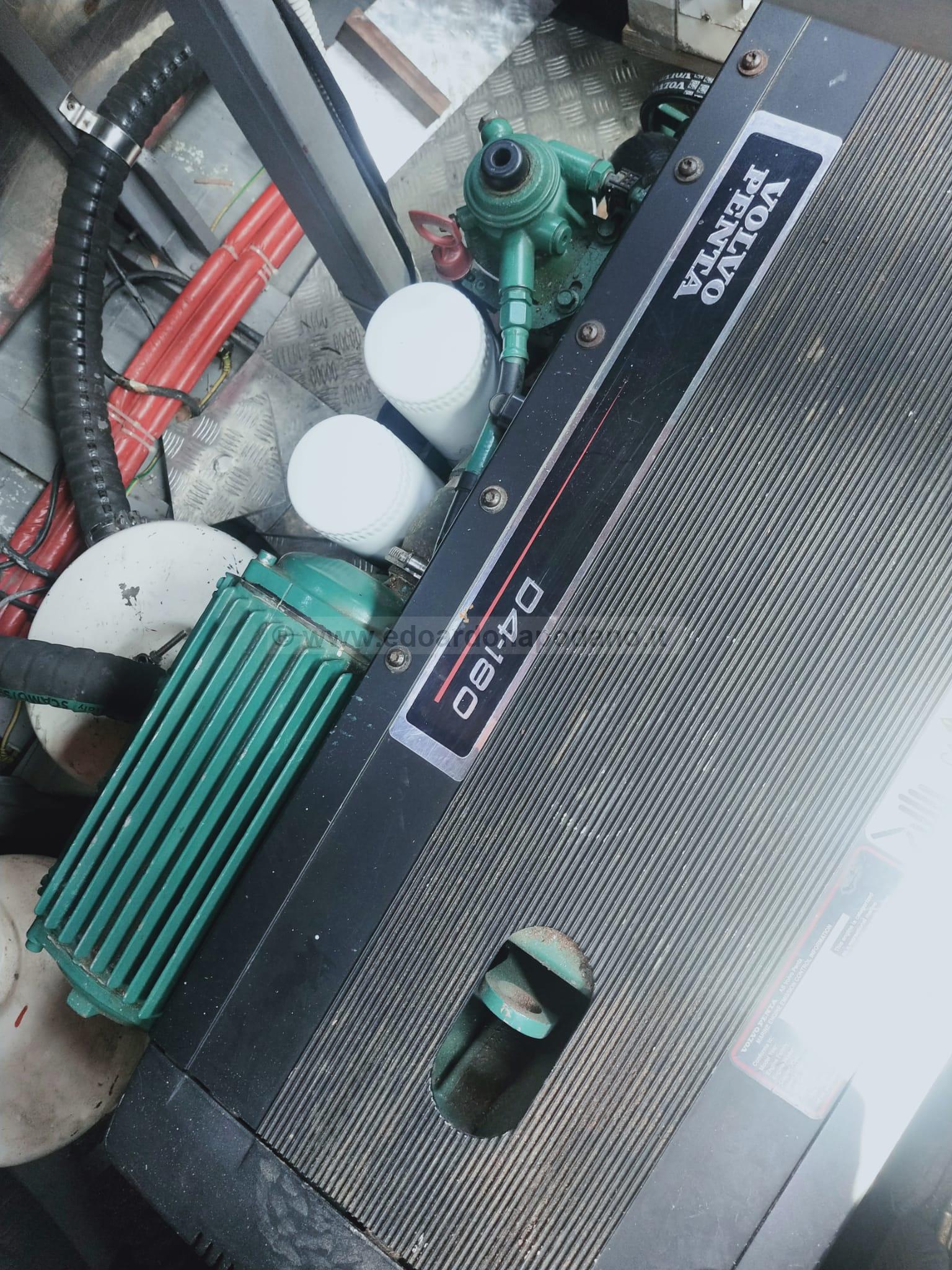

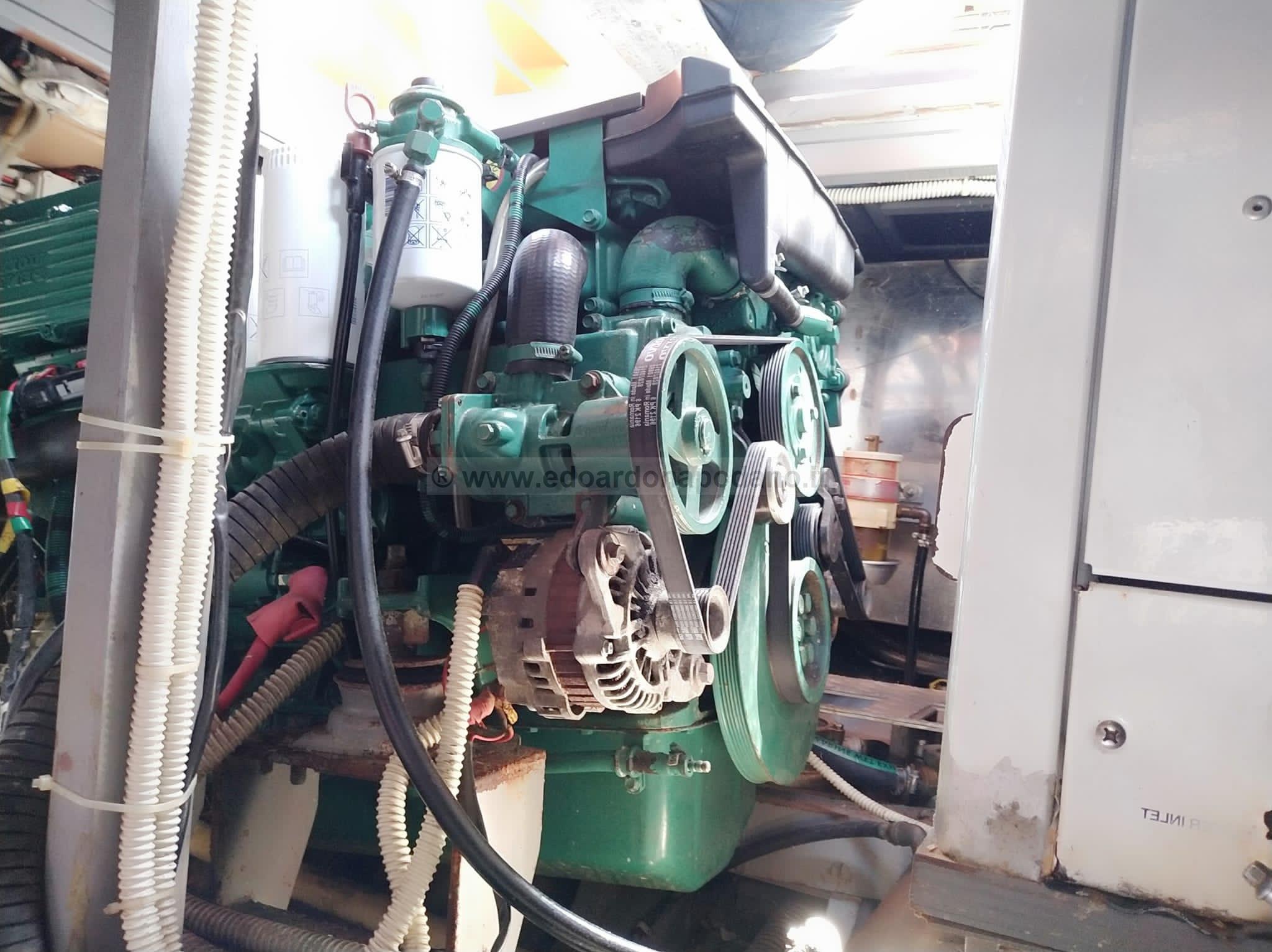

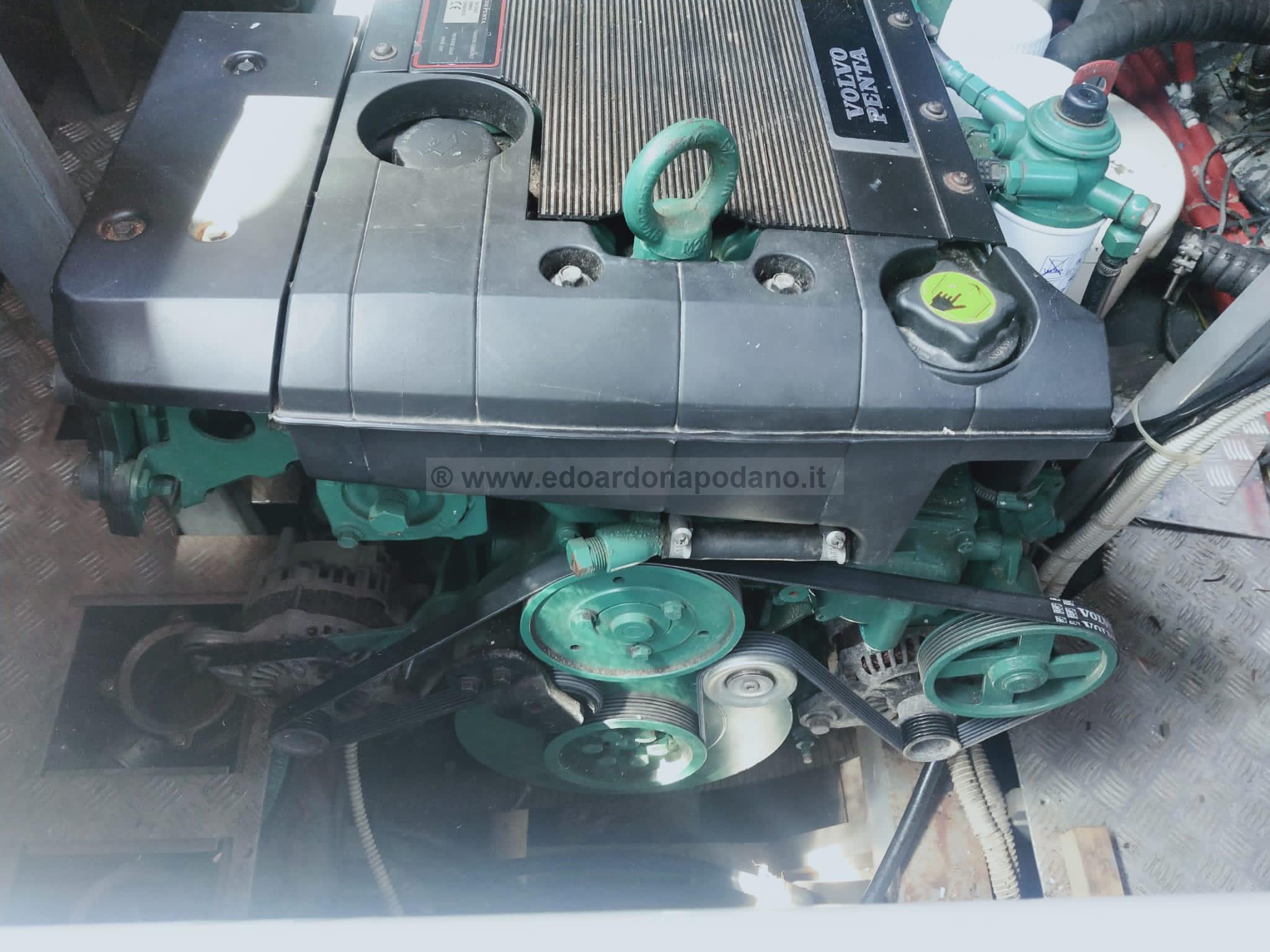

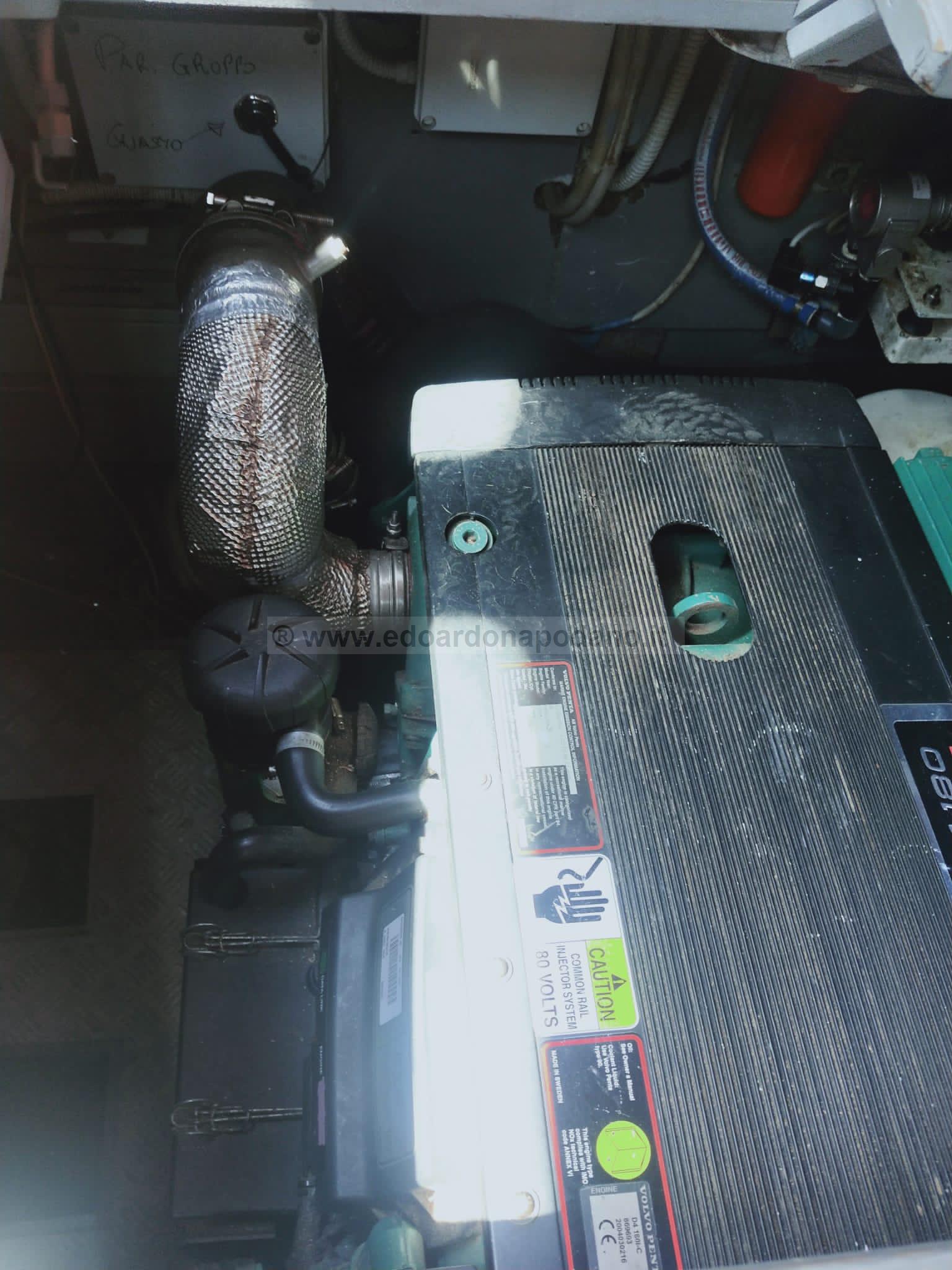

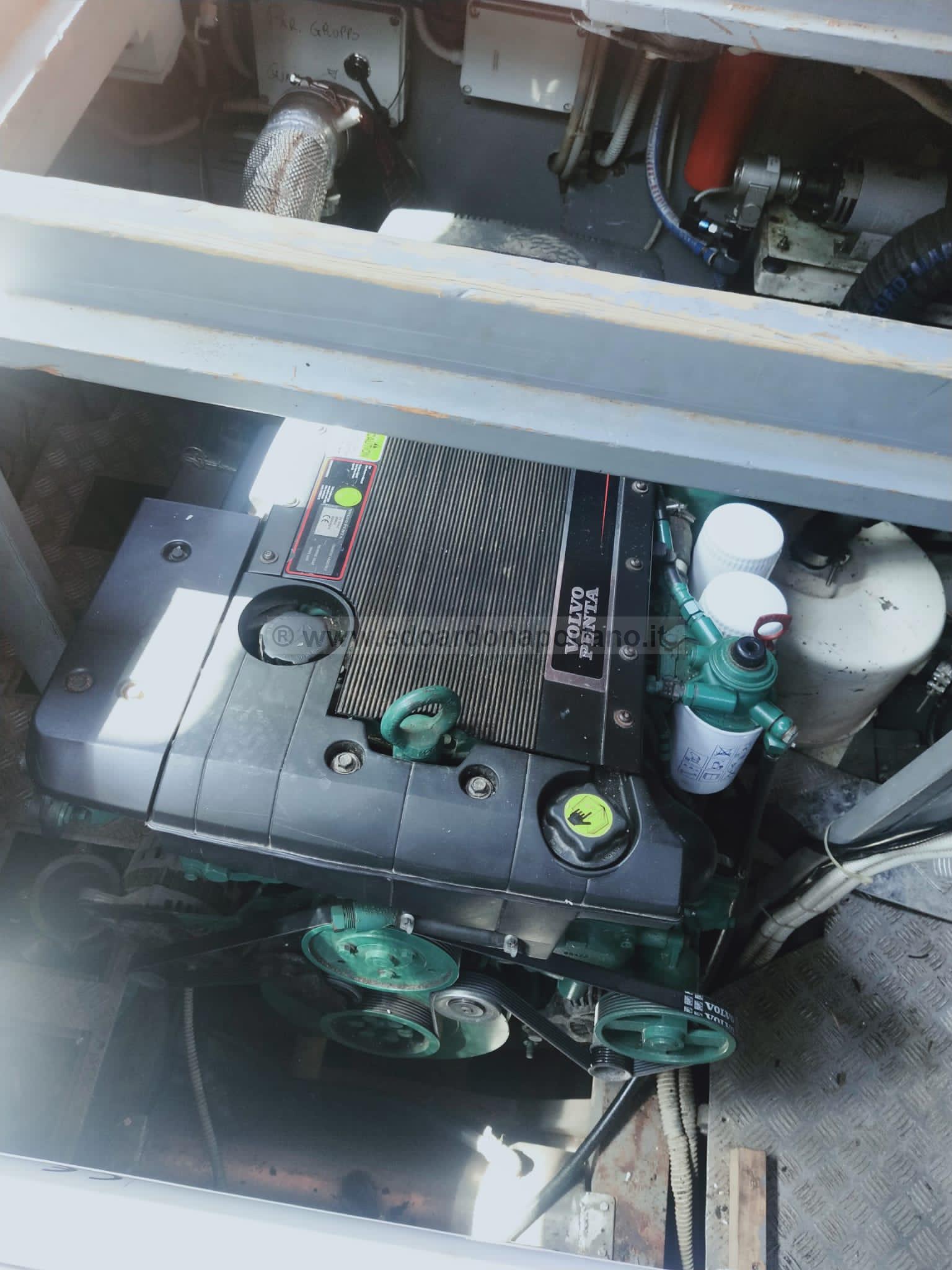

Engine and Koler maintenance with replacement of filters, oil, impellers, belts

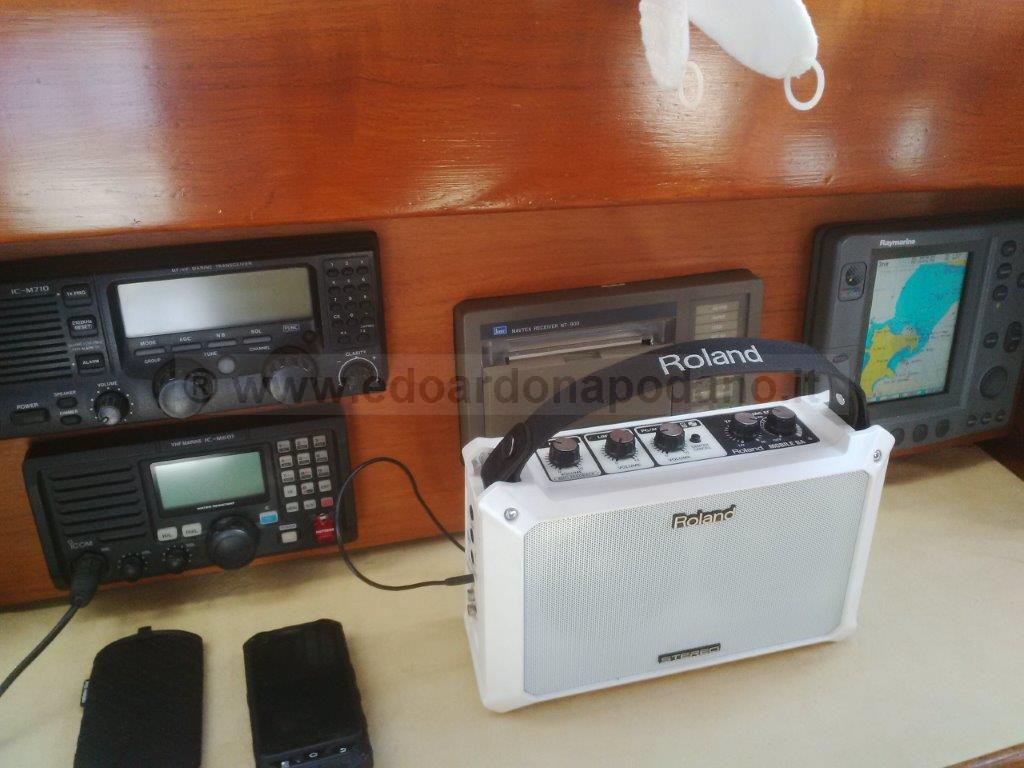

Electrical System 2022
a) New electrical system for the Italian rules

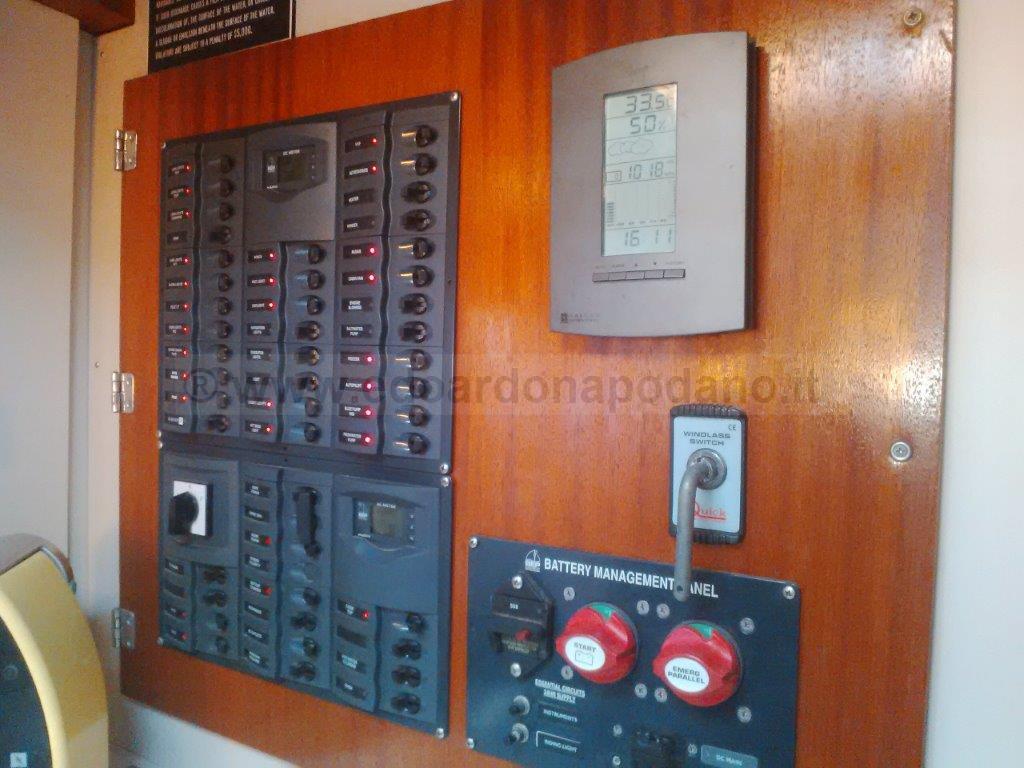

b) New distribution panel

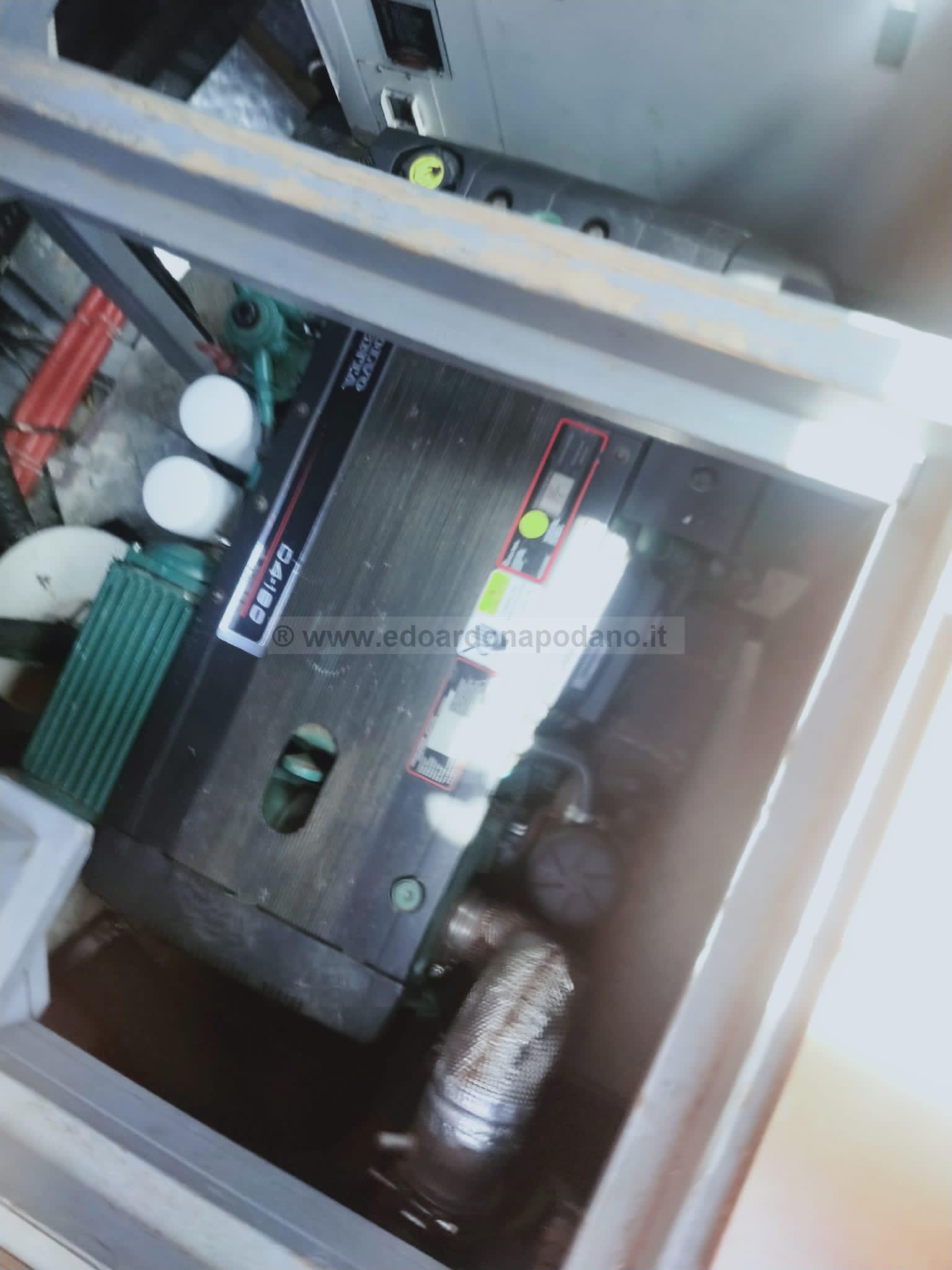

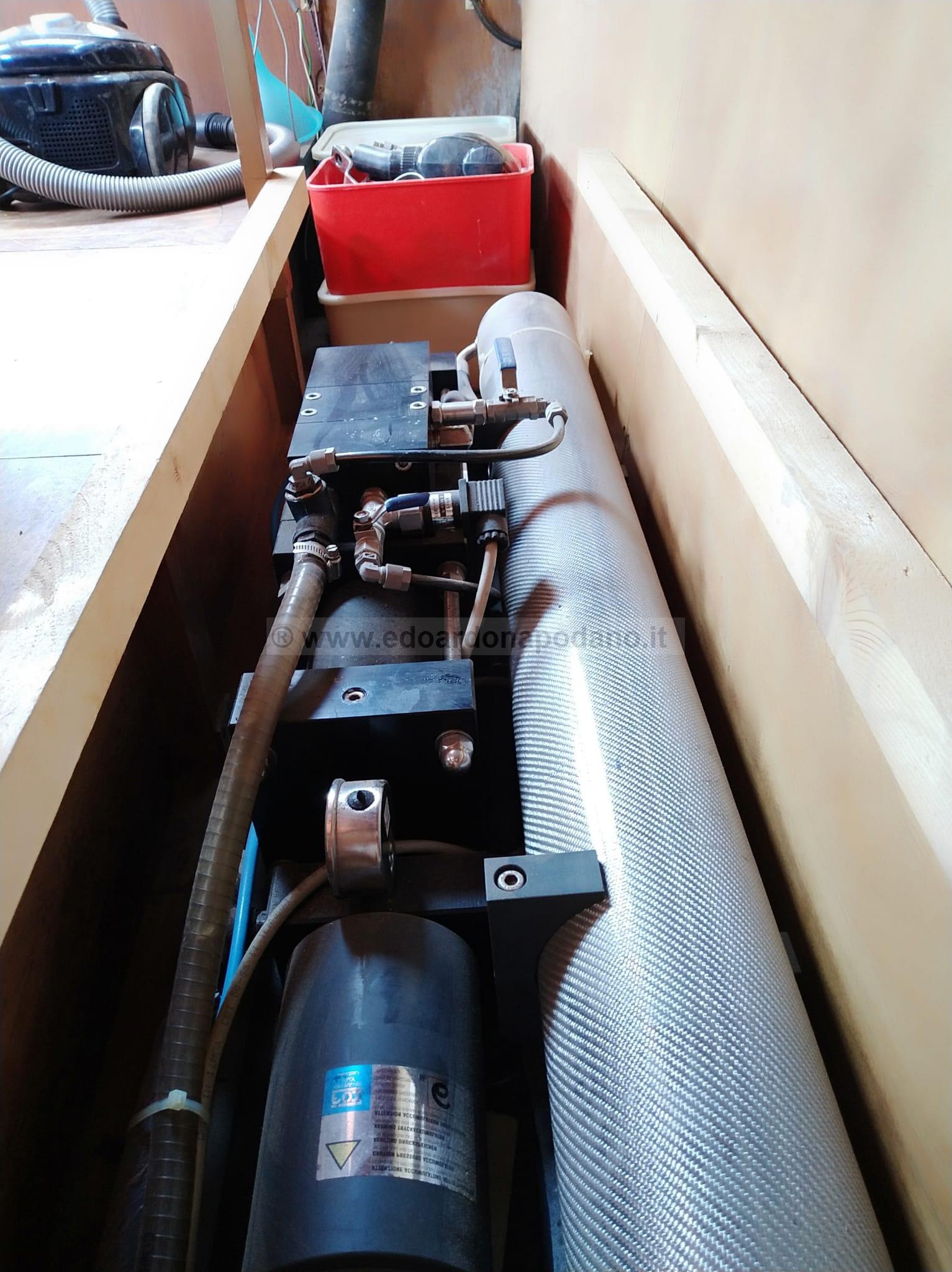

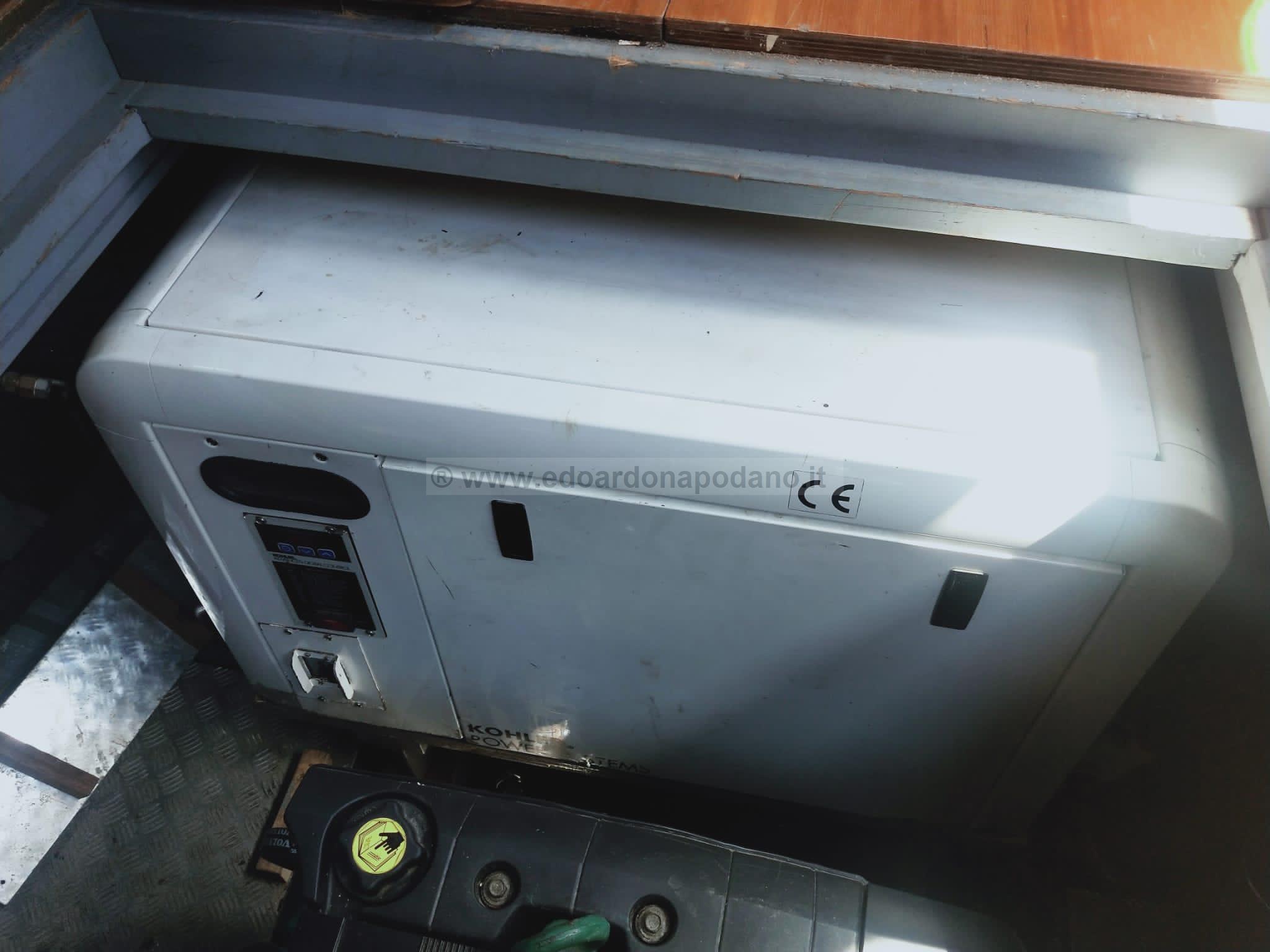

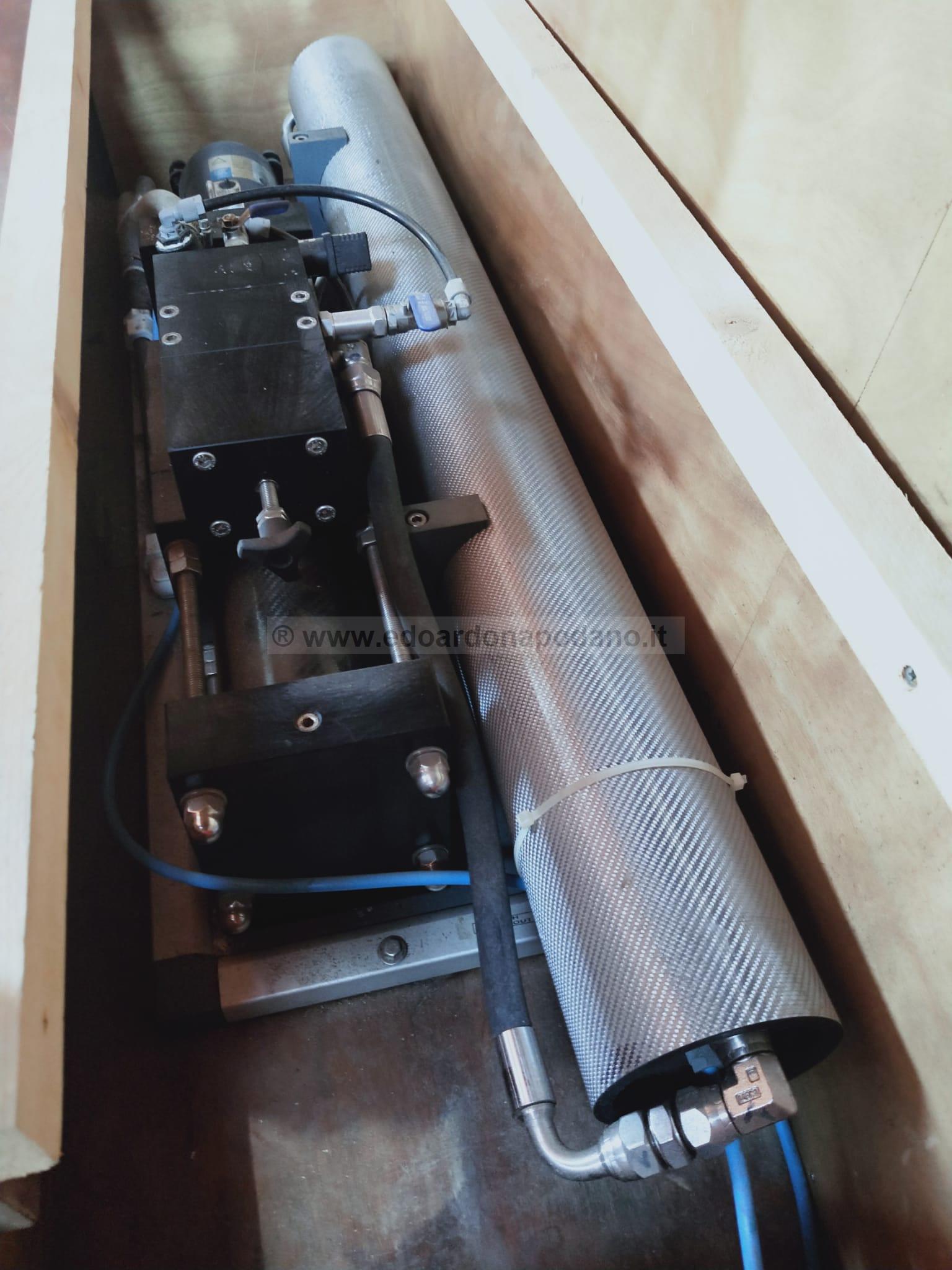

Motore-generatore 13kw- Dissalatore 2400 lt/giorno
