2016 Alia Yachts Alia Yachts 60M | 197ft
SAMURAI
Boat Highlights:
Year of Vessel
2016
Fuel Type
DIESEL
Length
197 ft
Manufacturer
Alia Yachts
Condition
Pre-owned
Boat Type
Power

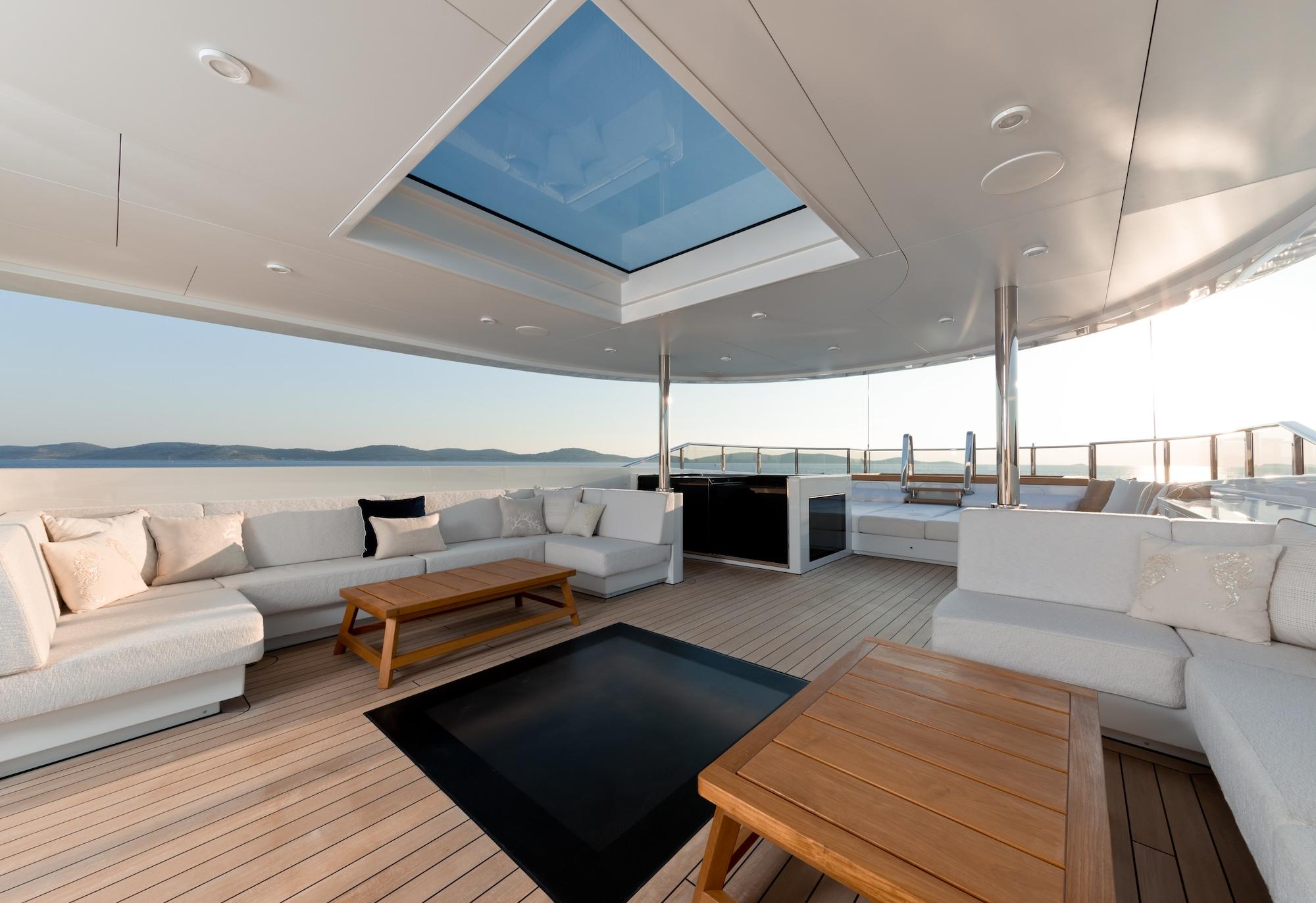

SUN DECK

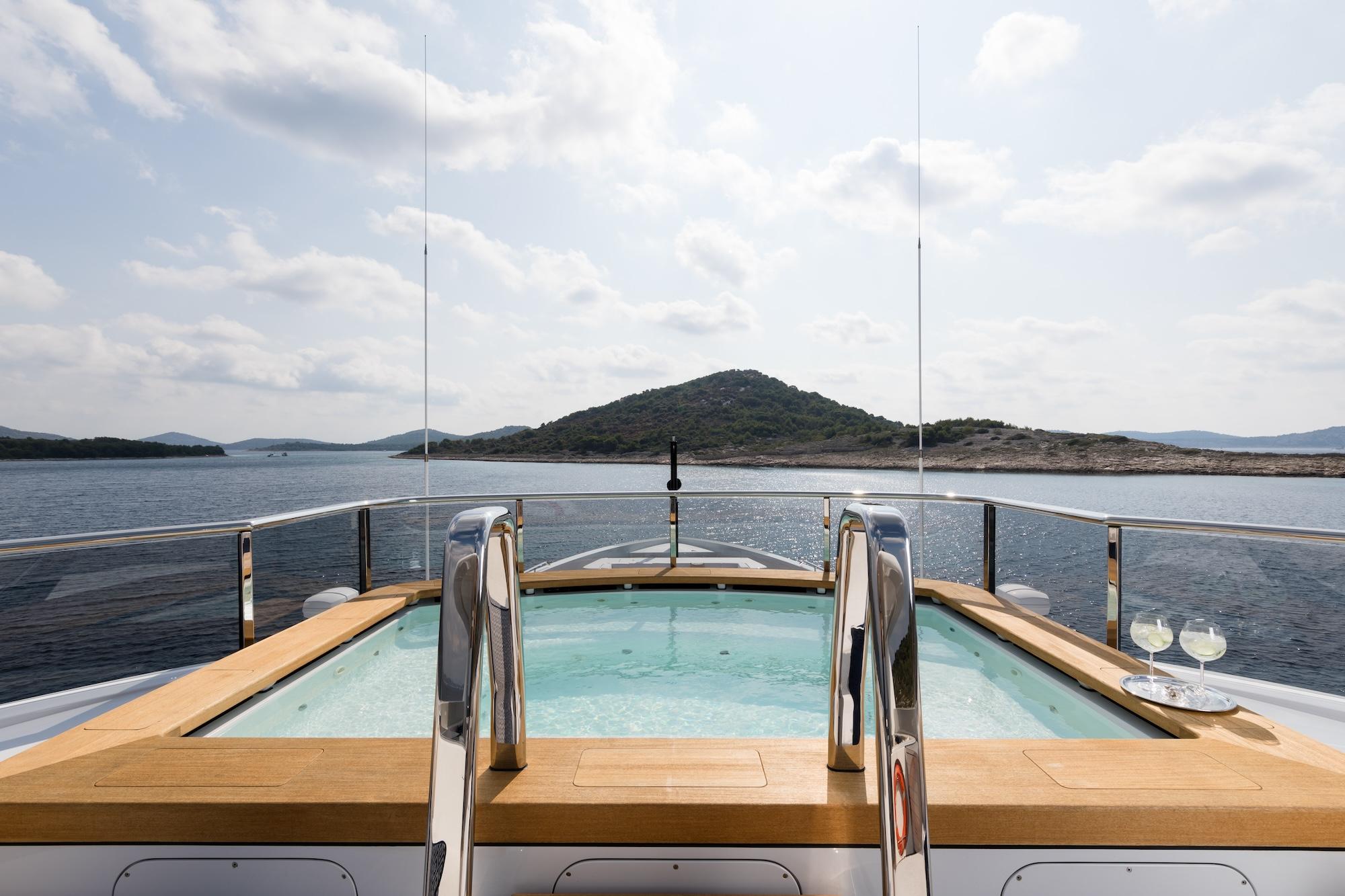

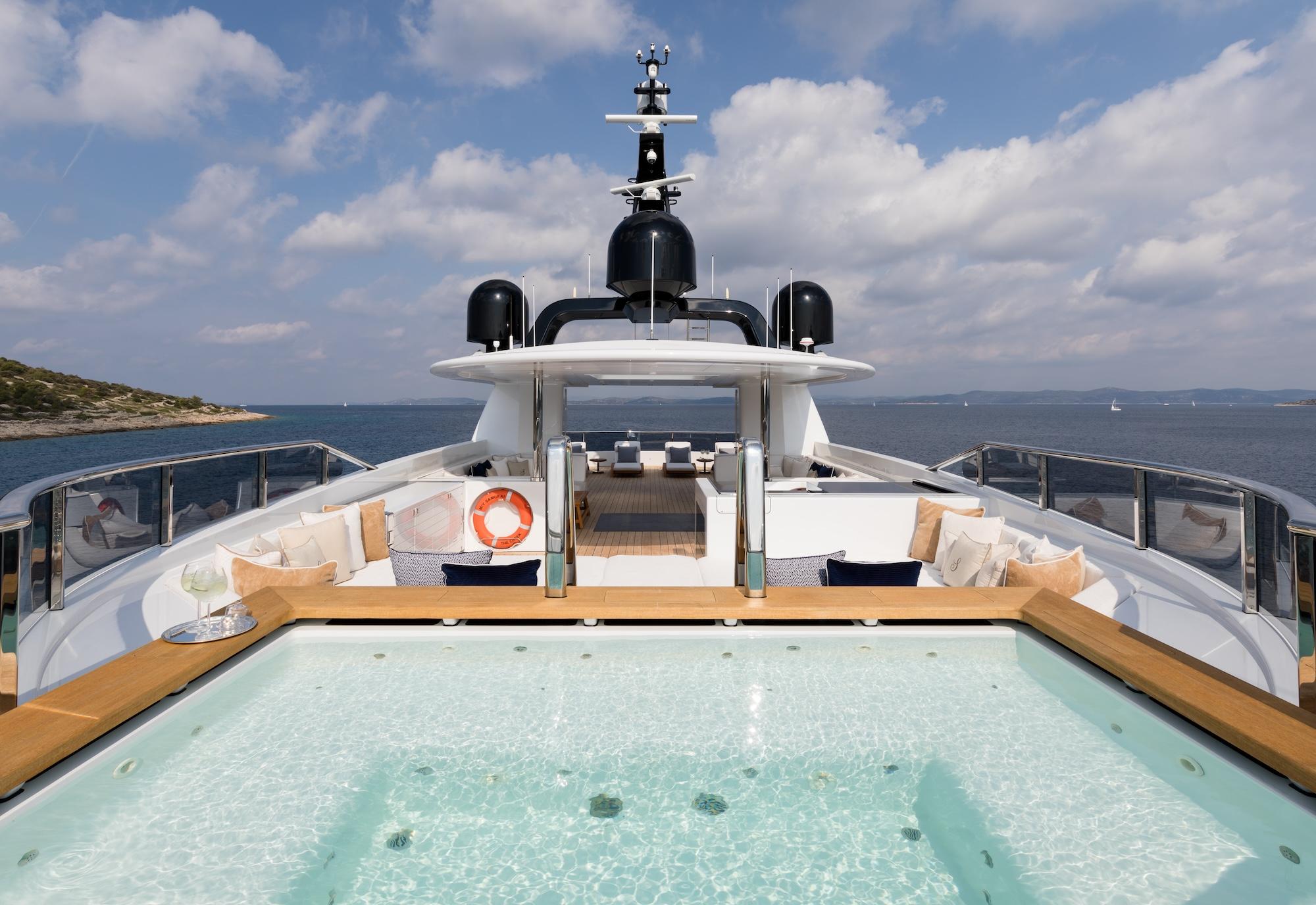

Beginning up top, Samurai’s vast sun deck features an elevated Jacuzzi from which guests can take in the panoramic views and water-jet massage. Large sunpads here offer lots of space for sunbathing, while a protected lounging area nearby offers respite from the sun. Guests are shielded from the wind by glass paneling that surrounds the deck and offers unobstructed views of the water.
WHEELHOUSE DECK

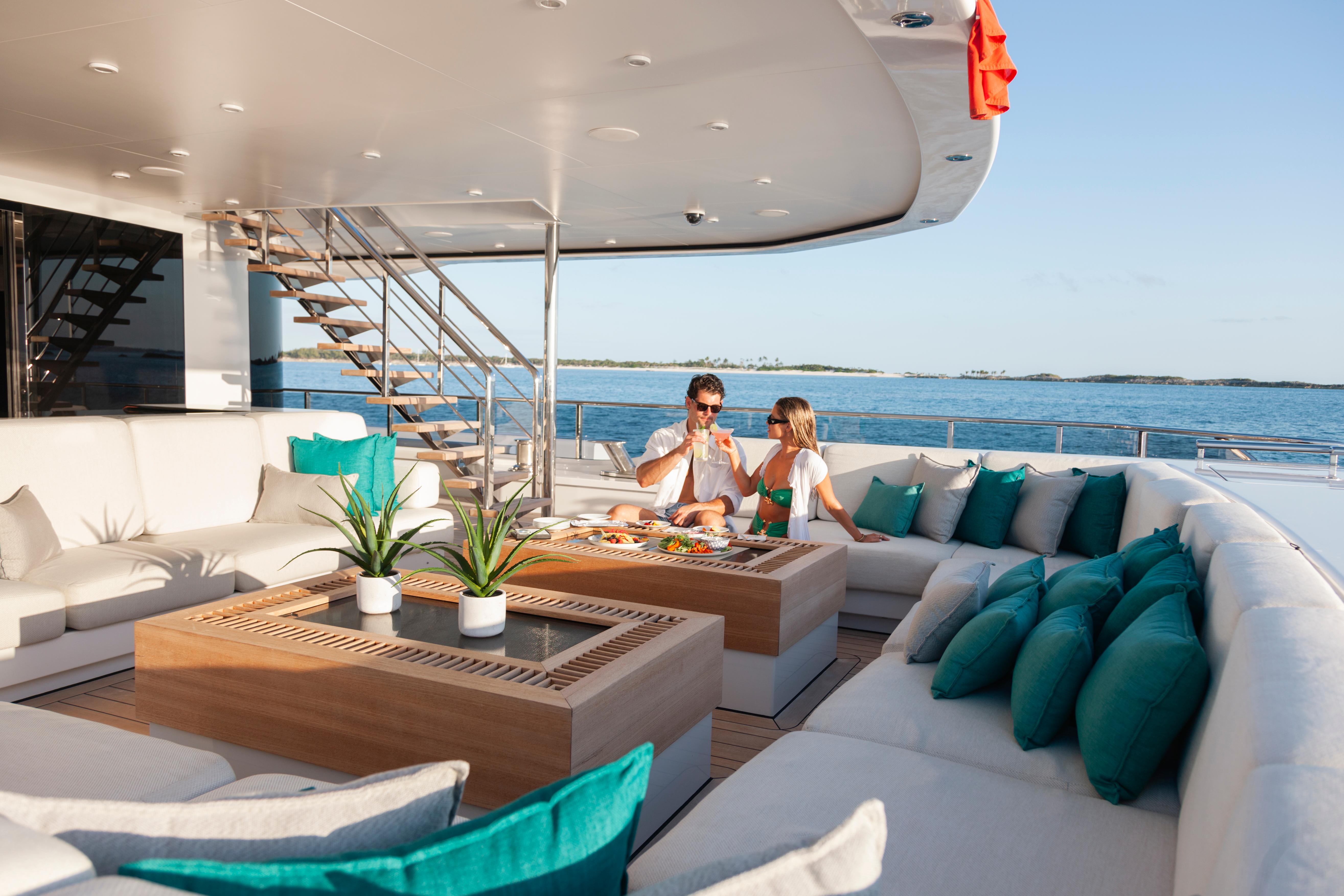

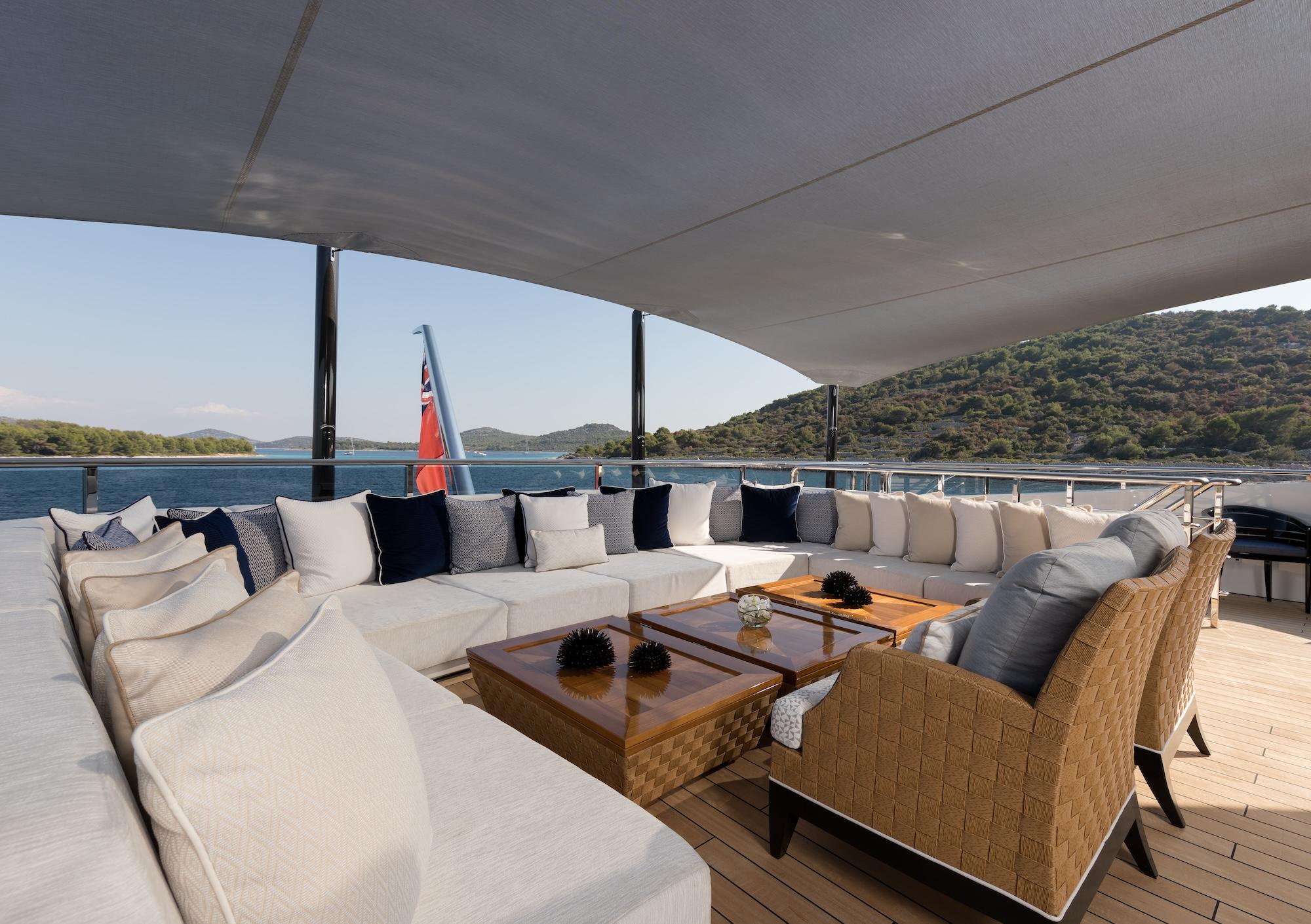

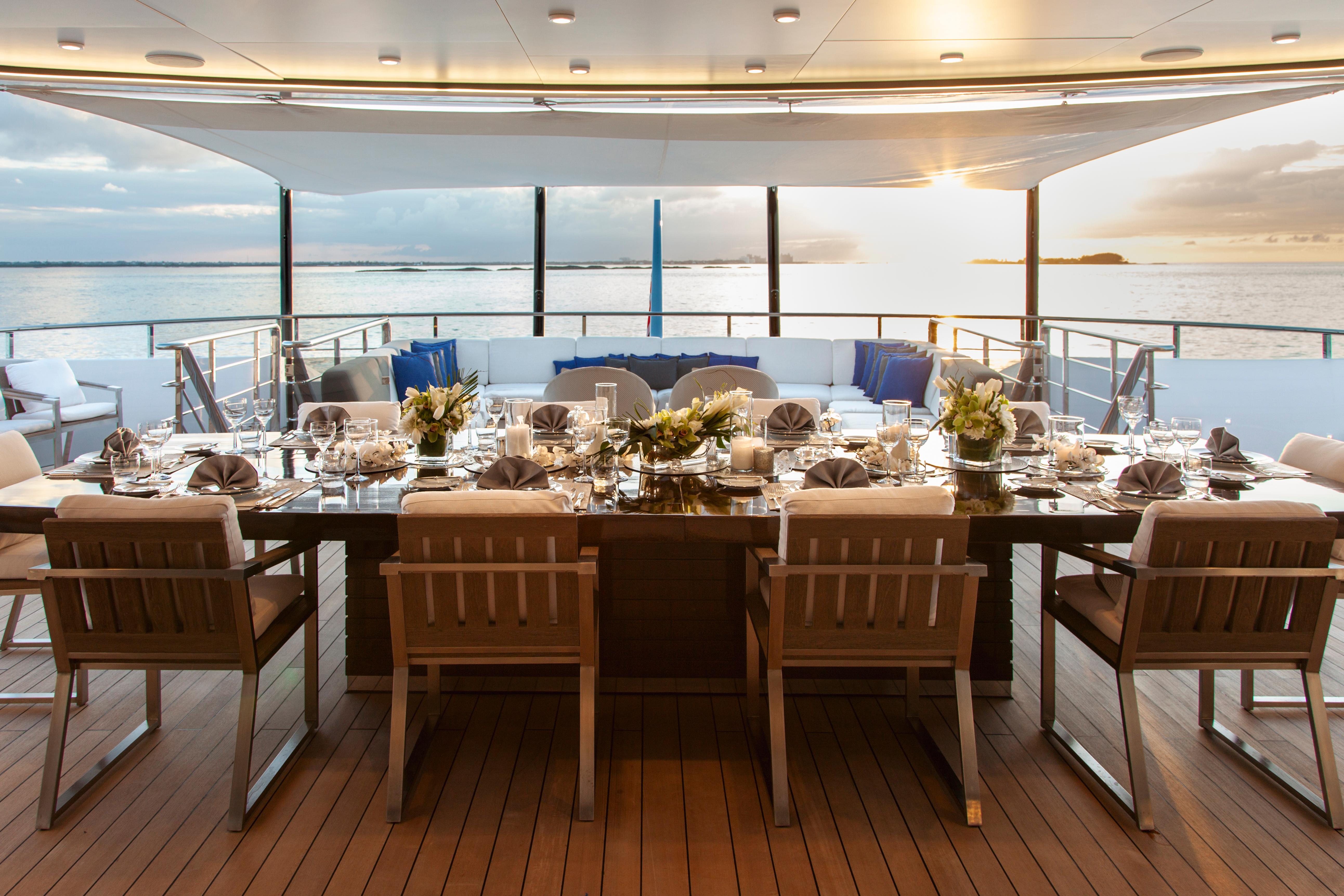

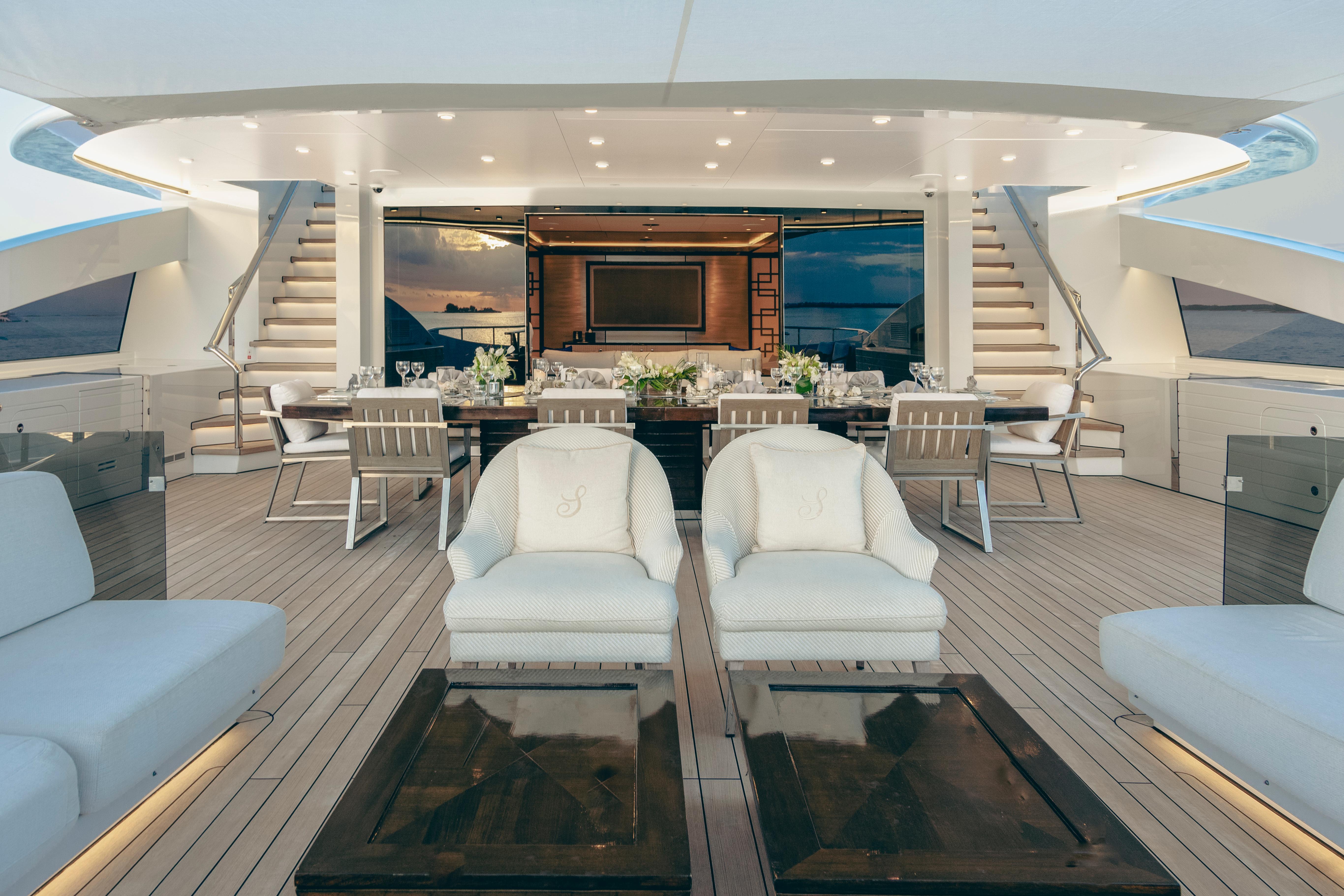

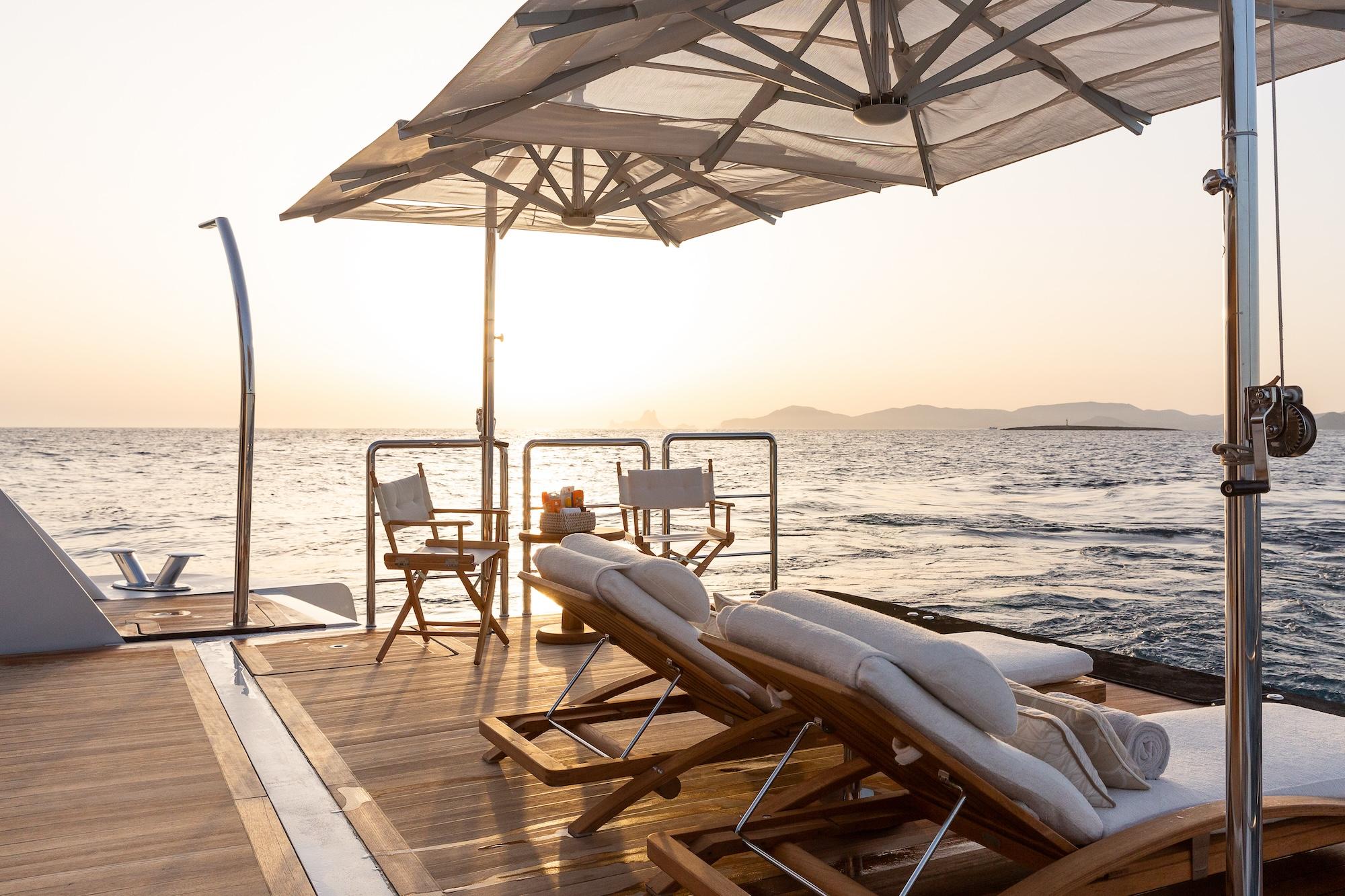

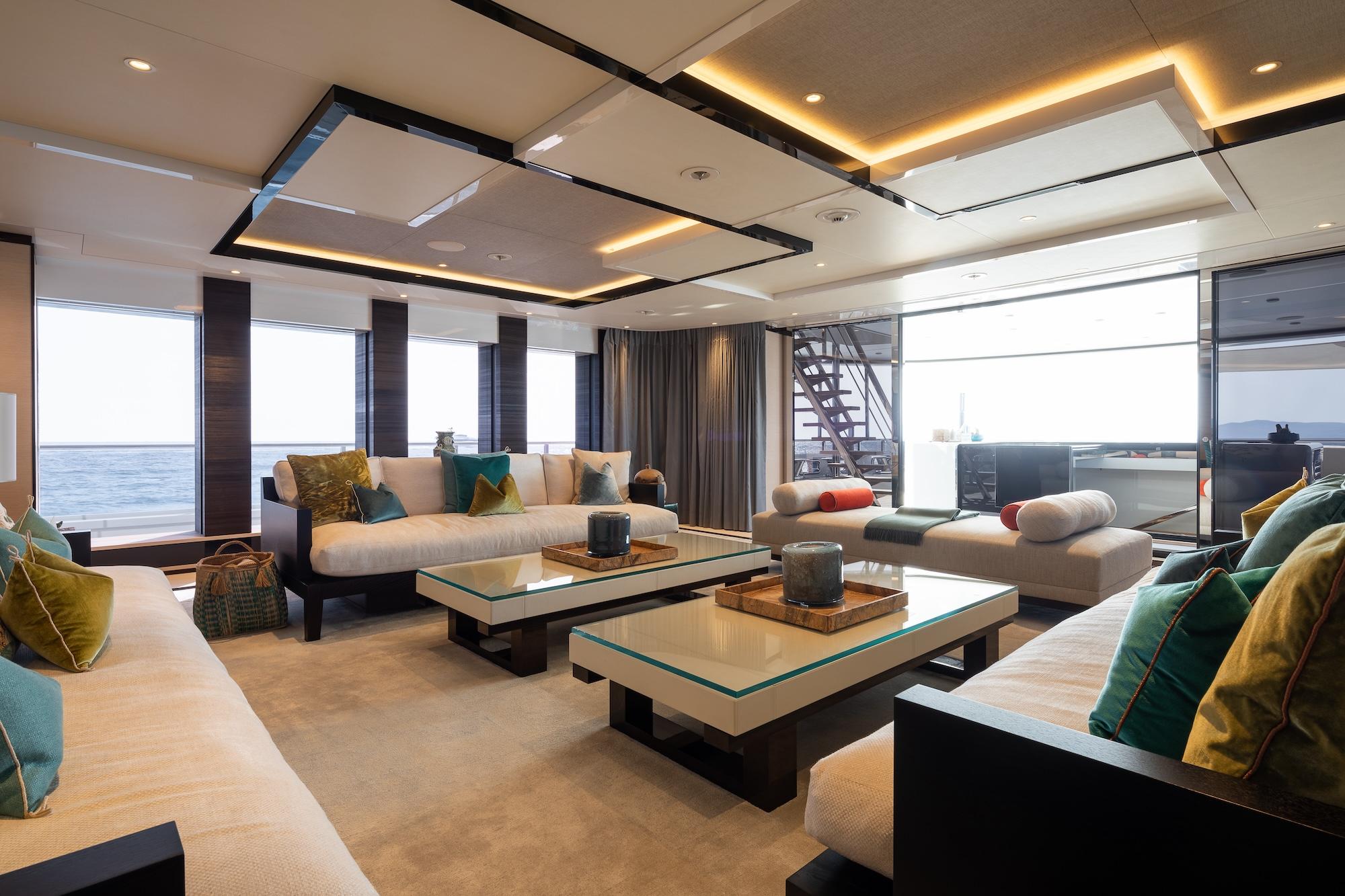

This spacious level of the yacht is reserved for outdoor dining on the aft deck, or indoor relaxation in the salon. An oversized outdoor table is ideal for meals prepared by the yacht chef or Sunday morning brunch served by the crew. Aft of the table is an outdoor living space edged with white sofa seating and centered by two large low tables. Moving indoors, the salon offers various conversation areas with sofas and loose armchairs, and is an excellent option for movie nights or social gatherings. All the way forward, a Portuguese bridge leads to a quiet spot laden with sunpads and optional shading to take in the views.
MAIN DECK

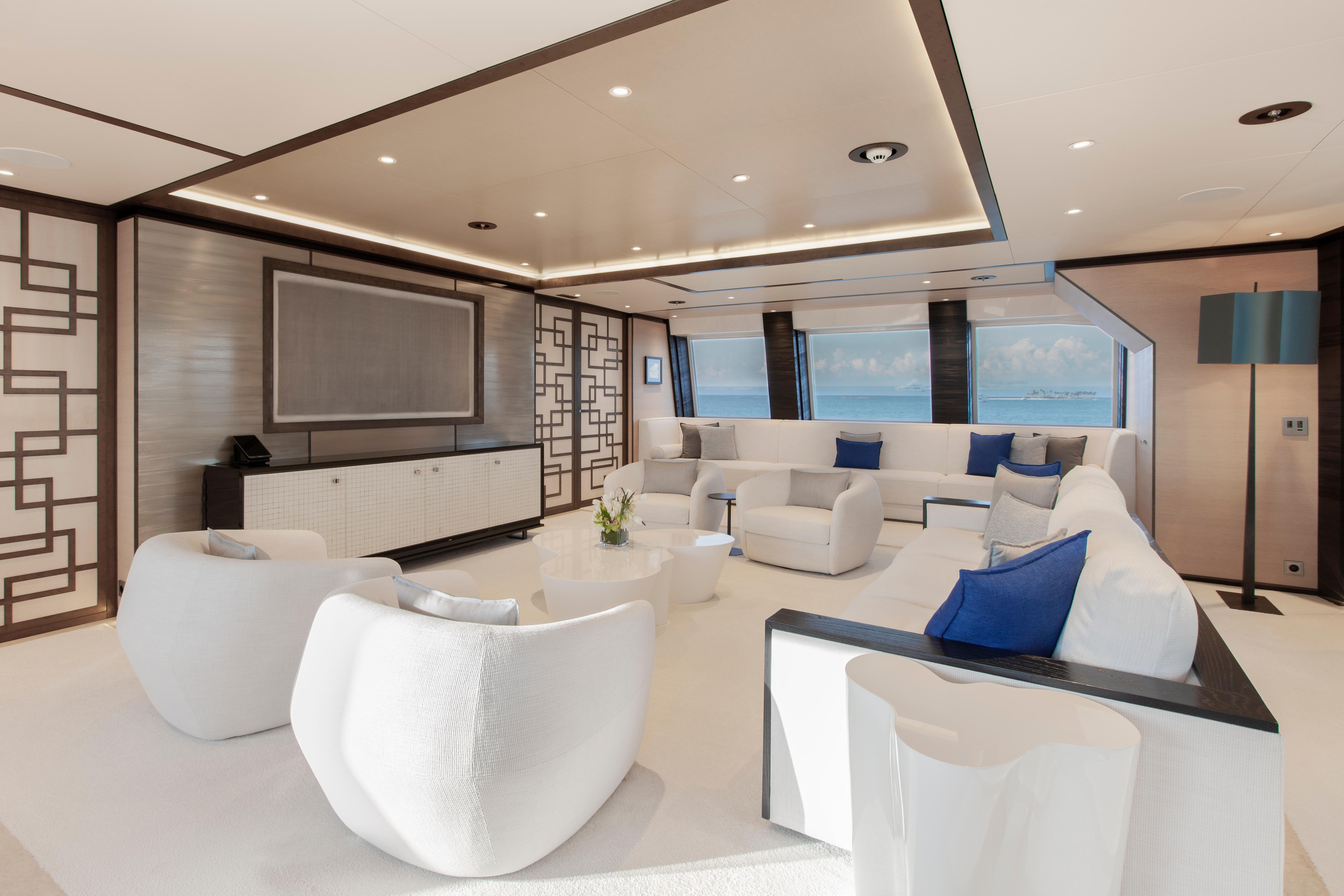

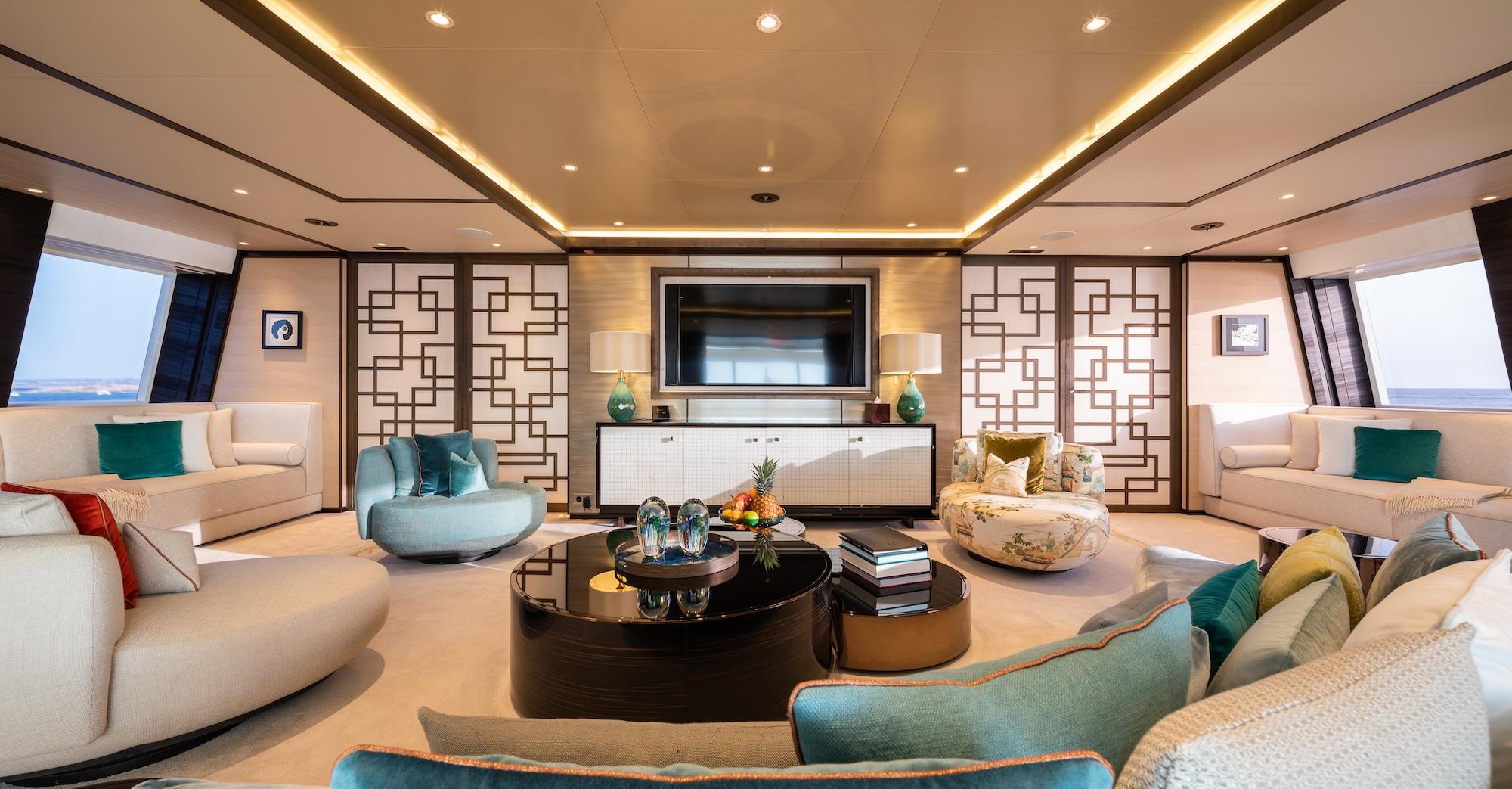

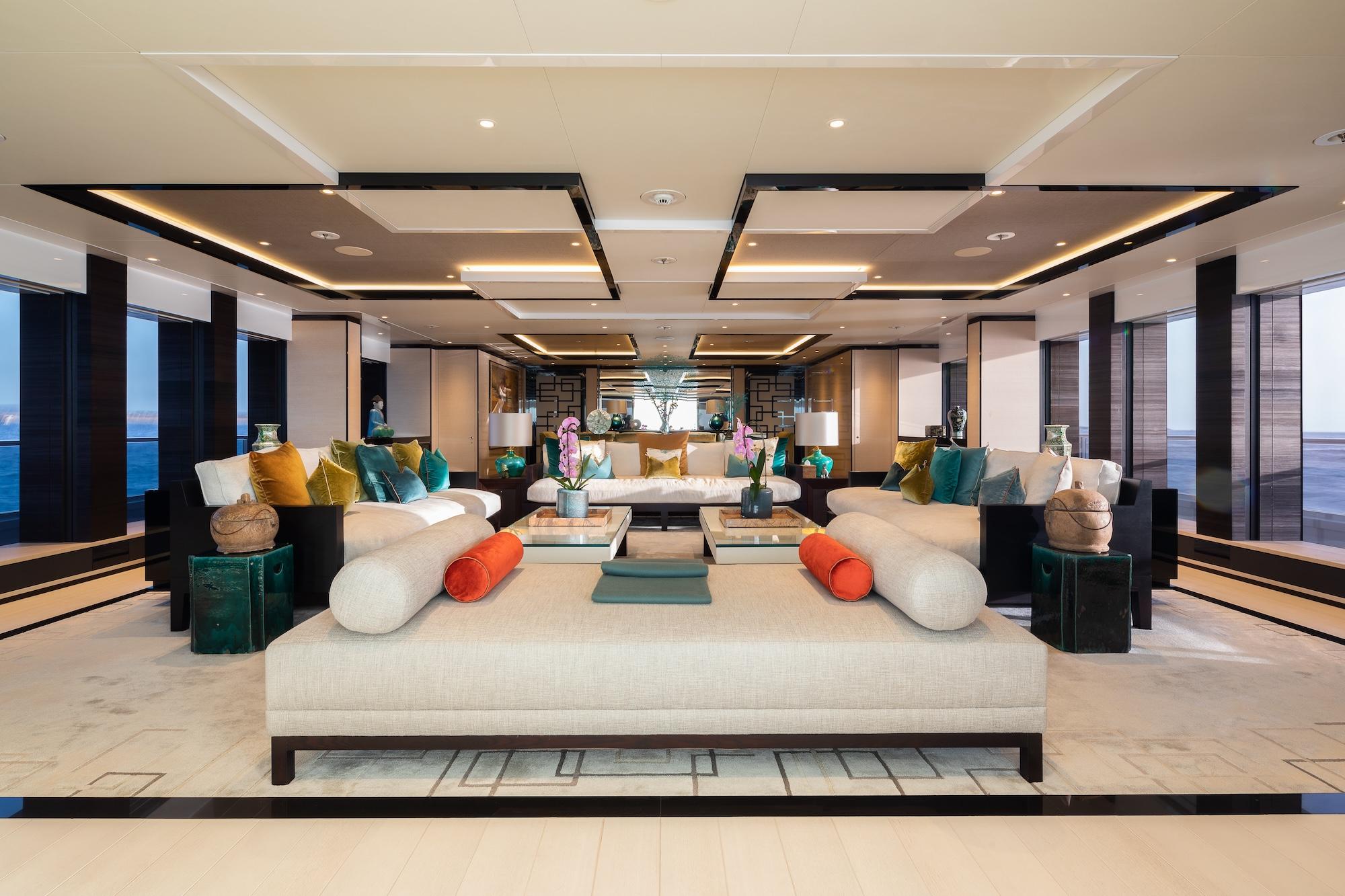

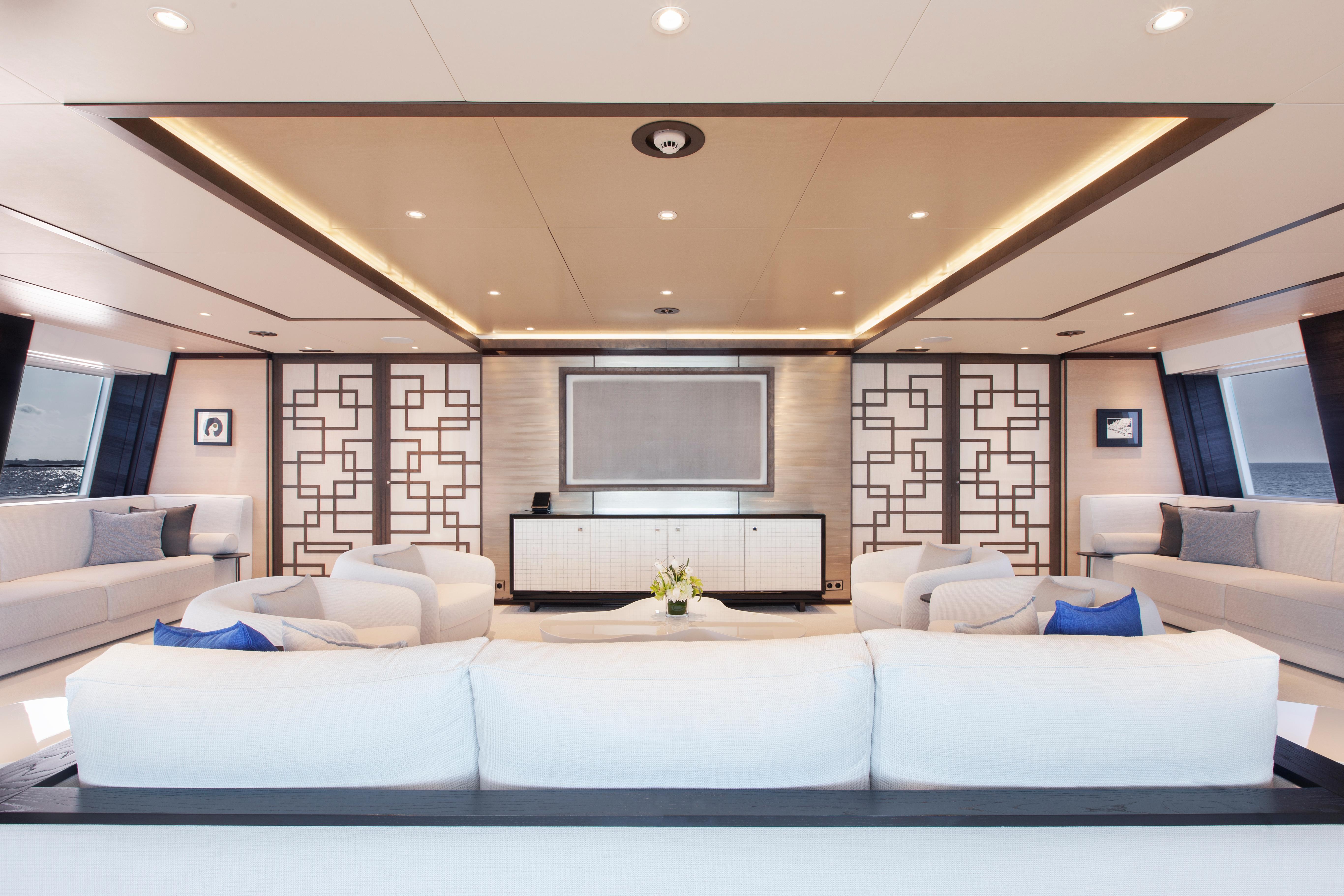

The main deck aft features an intimate seating area outdoors, ideal for a late-night cocktail. Once inside, a vast, full-beam main salon with Asian-inspired décor welcomes guests to a plush lounging space with plenty of seating and floor-to-ceiling windows that bring in the outdoors. Just forward, a formal dining space seats up to ten guests and boasts two recessed ceiling panels that are well lit and edged in black lacquer.

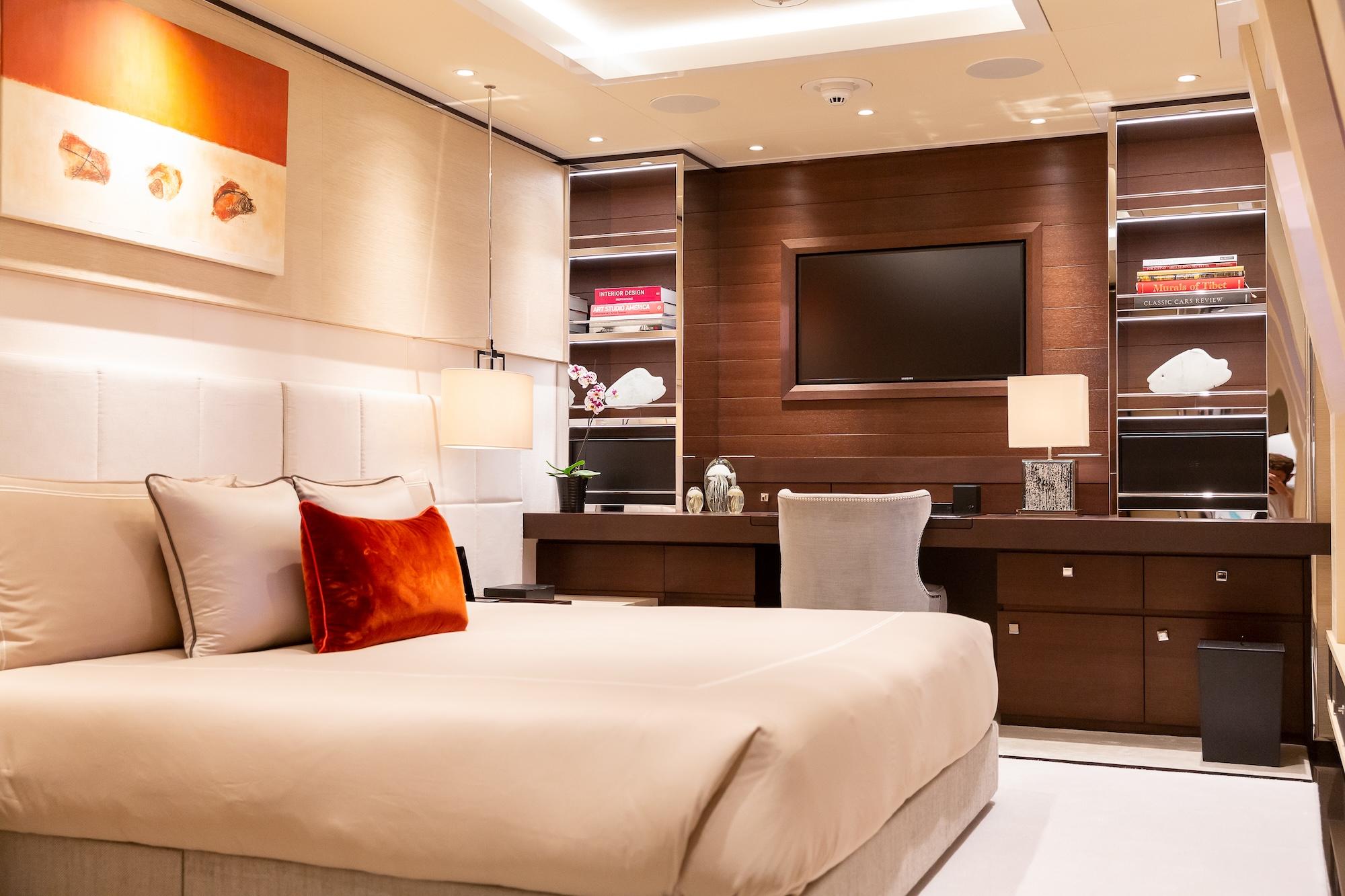

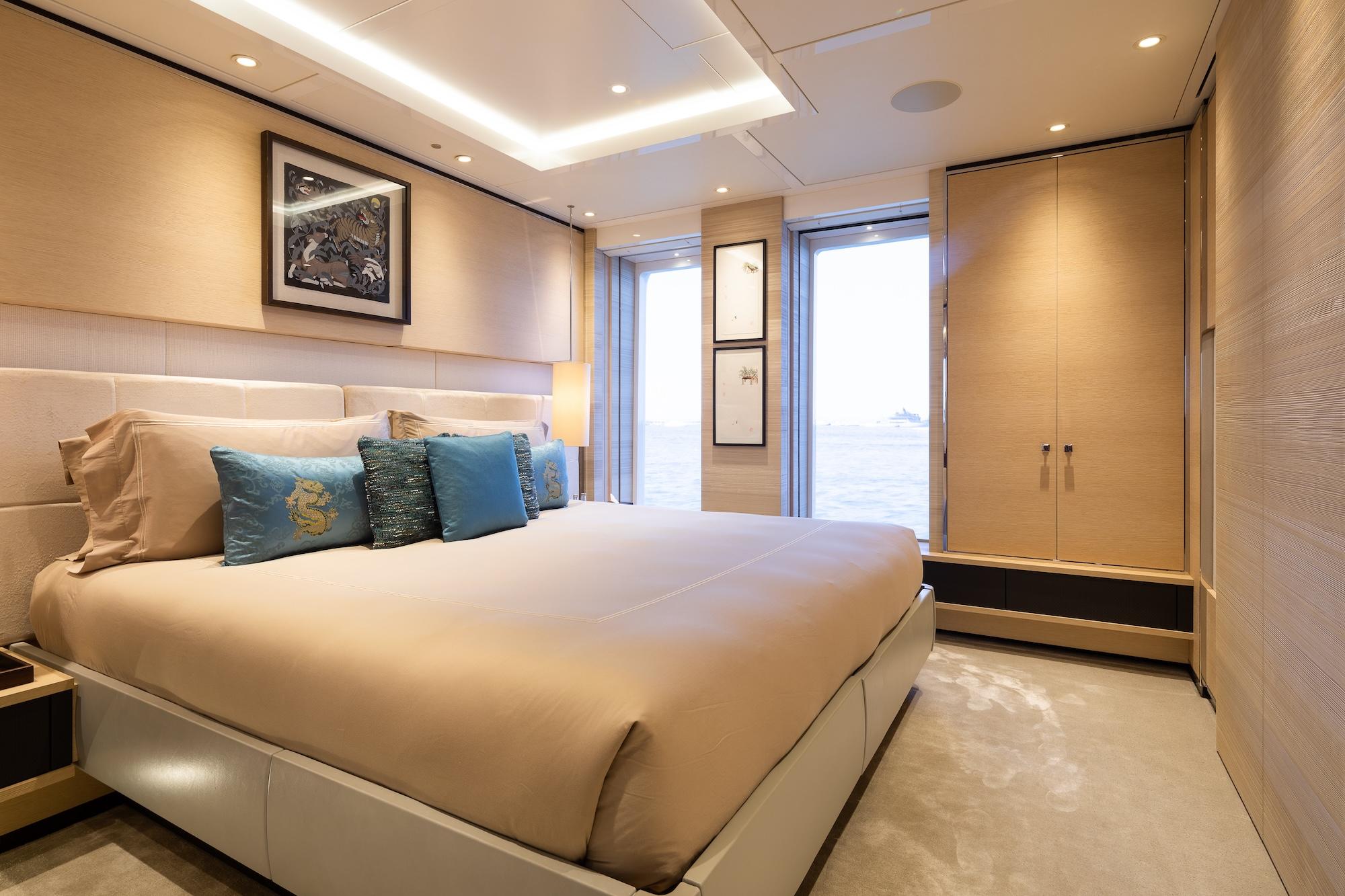

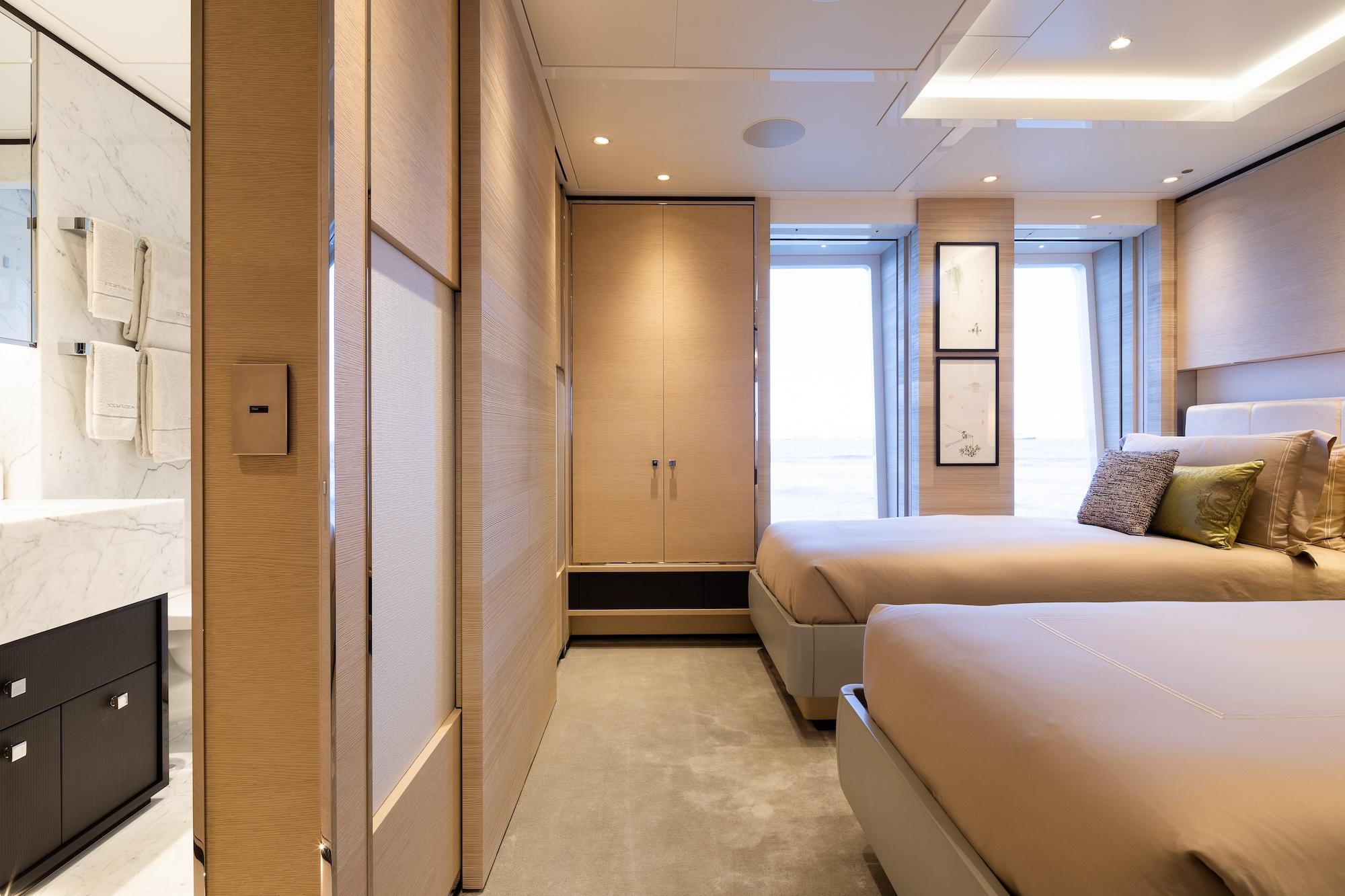

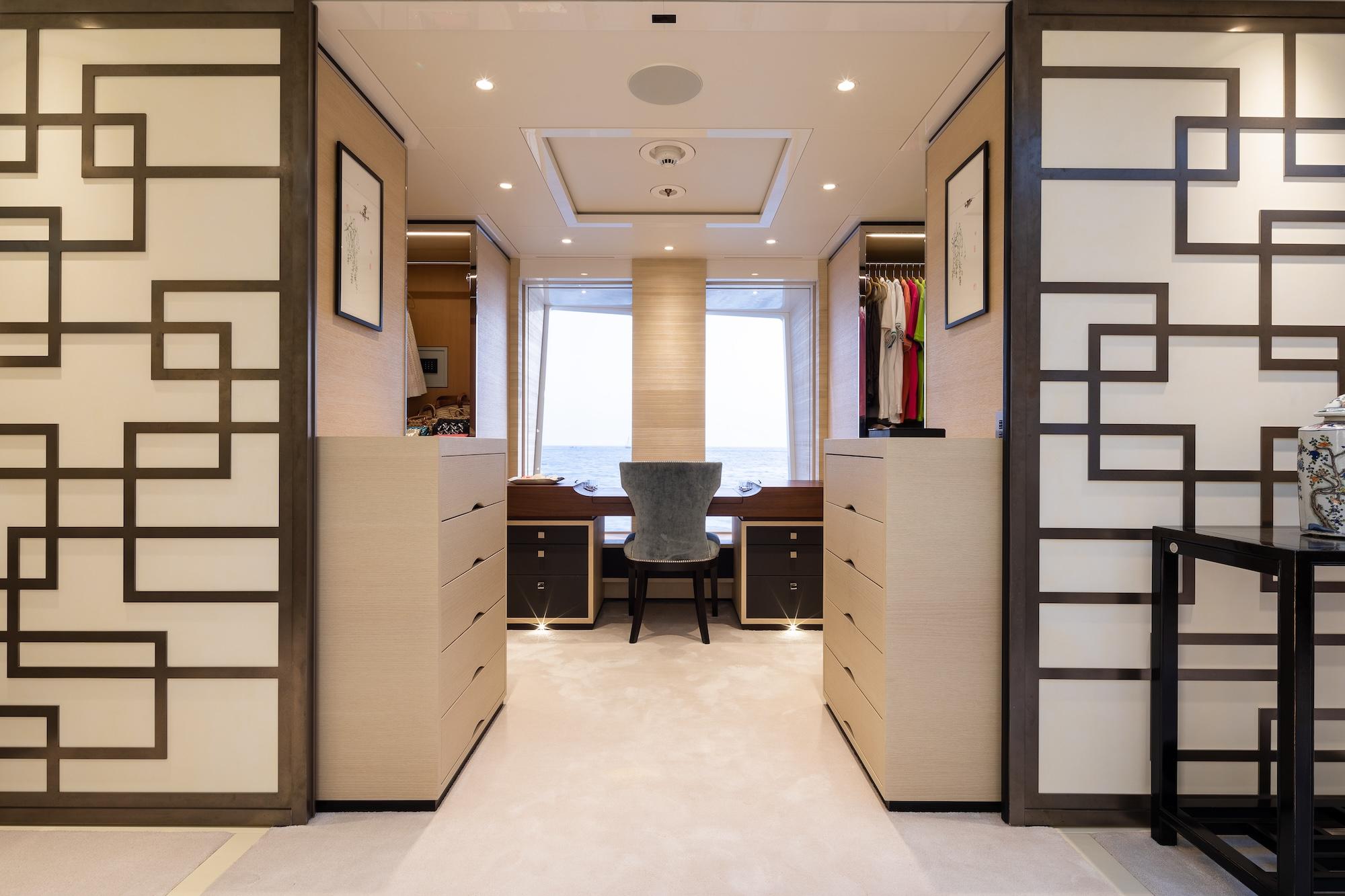

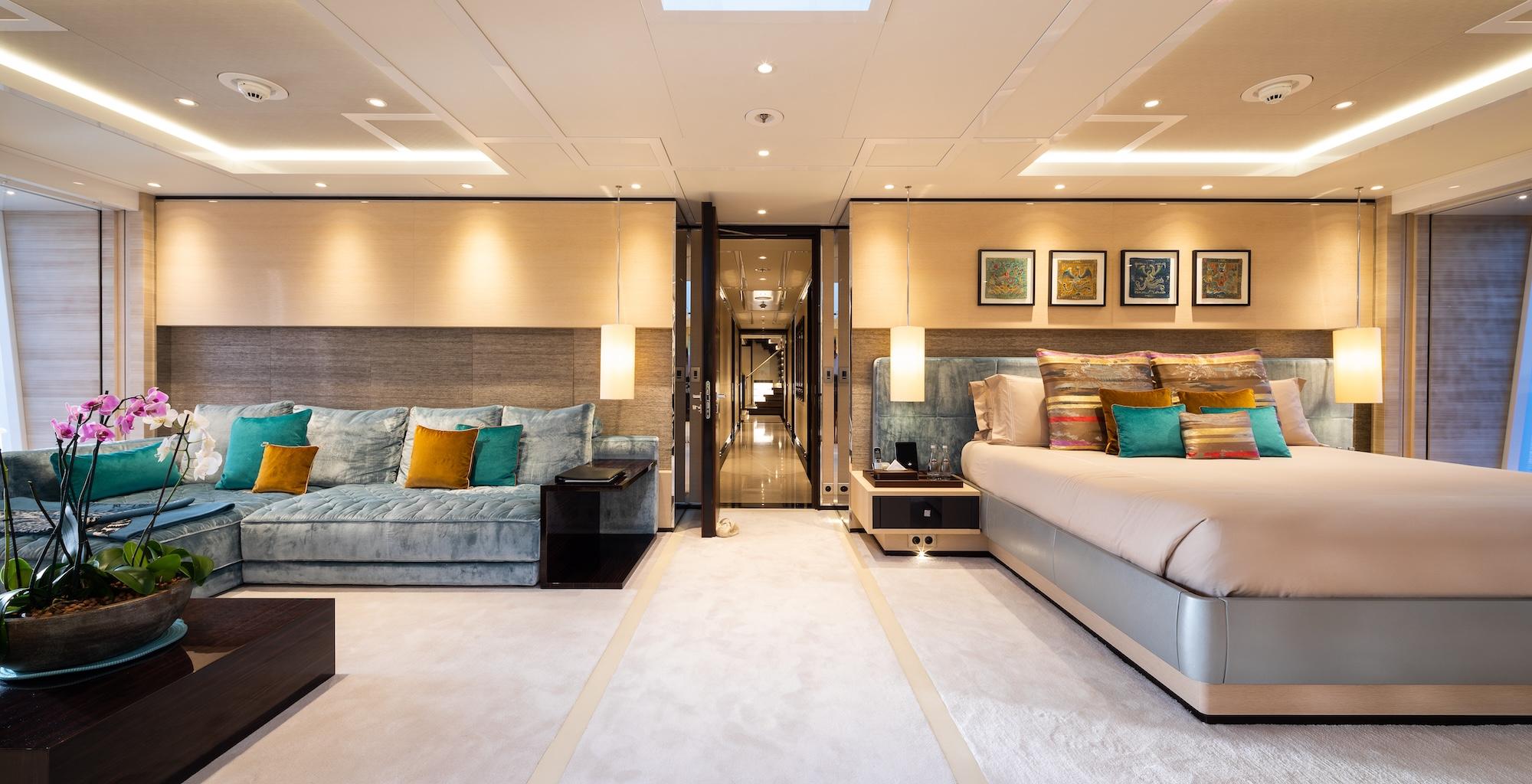

Moving forward on this deck, guest accommodations each feature a private en suite. The master suite is located all the way forward, and features a private lounging area, as well as an oversized dressing area.
ACCOMMODATION DECK

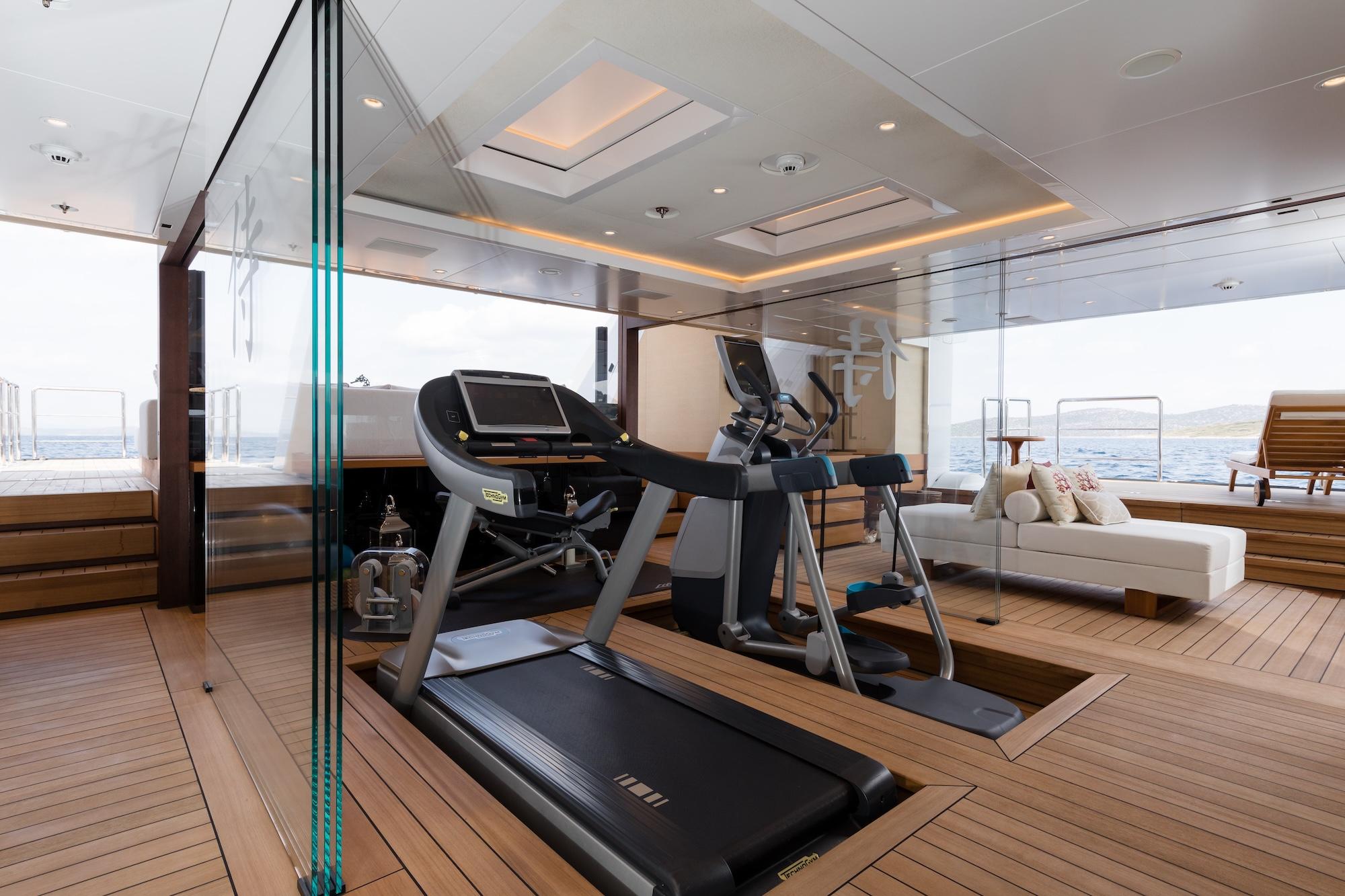

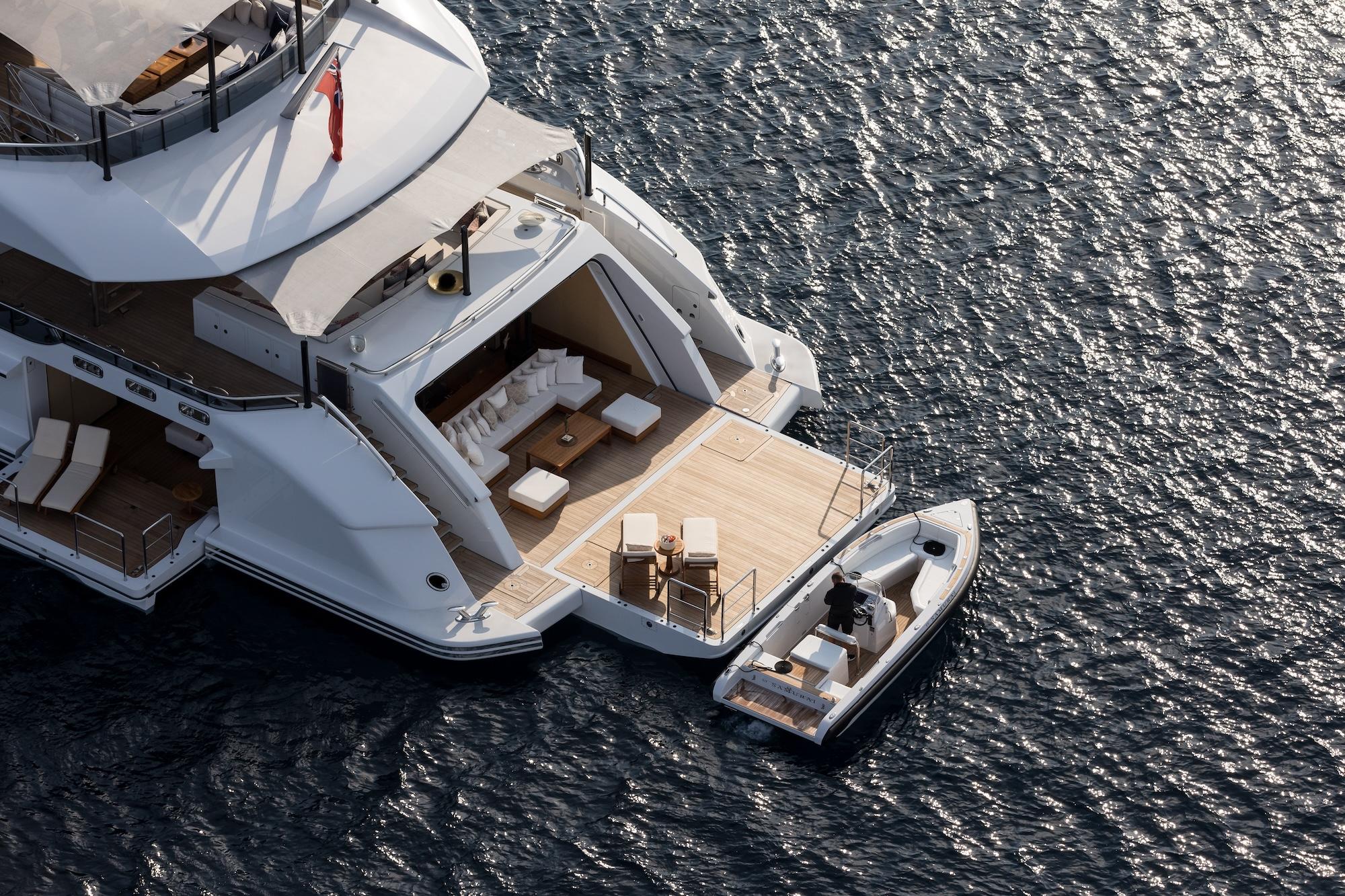

A true indoor/outdoor haven, this deck is host to a large beach club edged by a fold-down swim platform offering direct access to the water. On this level, a massage room, steam room and shower allow for a full-on wellness experience. Just aft of the beach club is a fitness area, where guests can enjoy a workout at water level within an enclosed air-conditioned space.
Main Engines
Engine Type: MTU 16V4000M73L
Gearboxes for Main Engines: ZF 9350
Drive + Propeller Type: Shaft, out turning
ME PT 9000 hr – QL3 - top end rebuild done dec 2024 at 9486 / current hrs 10252
ME STB 9000 hr – QL3 - top end rebuild done dec 2024 at 9607 / current hrs 10372
Speed (kts) Fuel Consumption (gal/hr) Range (RPM) 10.5 188 1000 12.5 334 1200 14.5 510 1400 20 1440 1950
Generators & Electricity
Output: 200KW
Generators: CAT C9 DITA X3 / CAT C4.4BITA
Gen PT 12000hr- complete rebuild done dec 2022 @ 12791 / current hrs 20085
Gen Cen - complete rebuild in March 2025 / current hrs 12510
Gen STB 12000hr- complete rebuild done dec 2022 @ 11535 / current hrs 19816
Generator Fuel Consumption (gal/hour): 25L/H
Shorepower: MAGNUS SP 200 250KVA
Batteries
Main Engine Starting: MASTERVOLT AGM 225AH X 12
Generator Starting: MASTERVOLT AGM 225AH X 12
Emergency: MASTERVOLT AGM 130AH X 4
Air Conditioning
Type: HIEN & HOPMAN - CHILLED WATER
Other Machinery
Watermakers: HEM H30 DUPLEX MINI X2
Stabilizers: Naiad Dynamics Model 820
Bow Thruster: ZF TT 2001 FP Thruster systems (tunnel thruster fixed pitch)
Steering system: JASTRAM Twin S2-21-1-35
Fuel Separator / Filtration: GEA Westfalia Separator OTC 2/OTC 3
Sewage System: HAMANN - HL-CONT PLUS 05
Fresh Water System: HEM FWS 3305
Bilge Water Filtration: RWO SKITS/S-DEB 0.5
Lube Oil Capacity: 1.62M3
Waste Oil Capacity: 3.36M3
