Manufacturer Provided Description

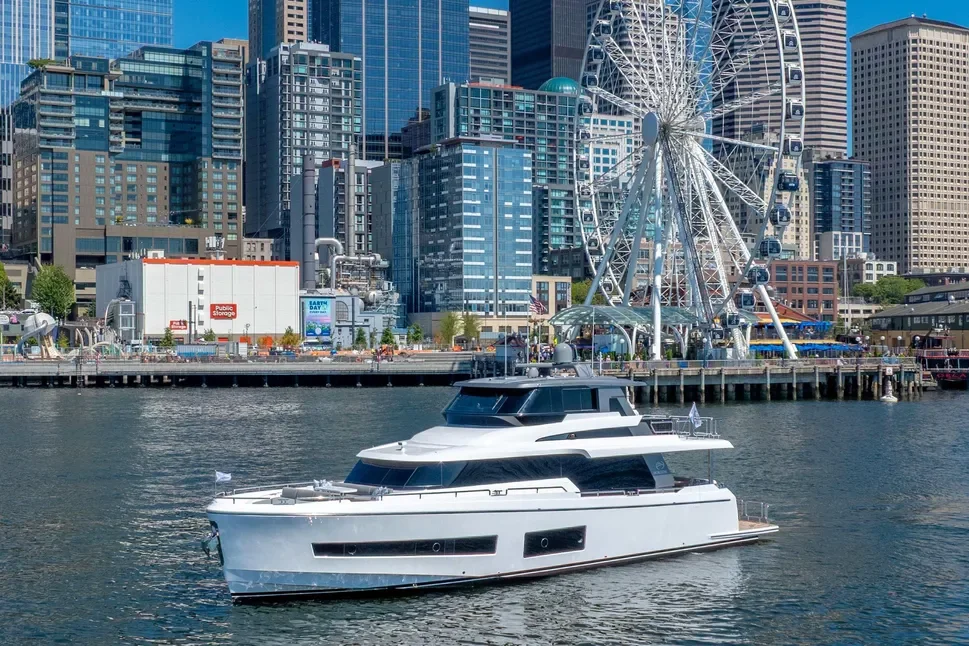

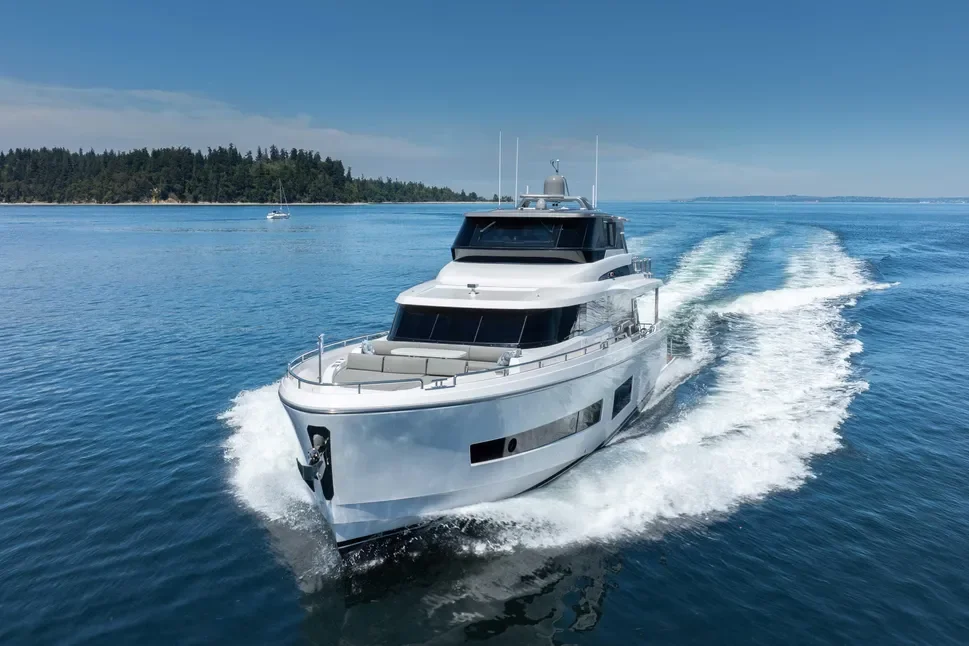

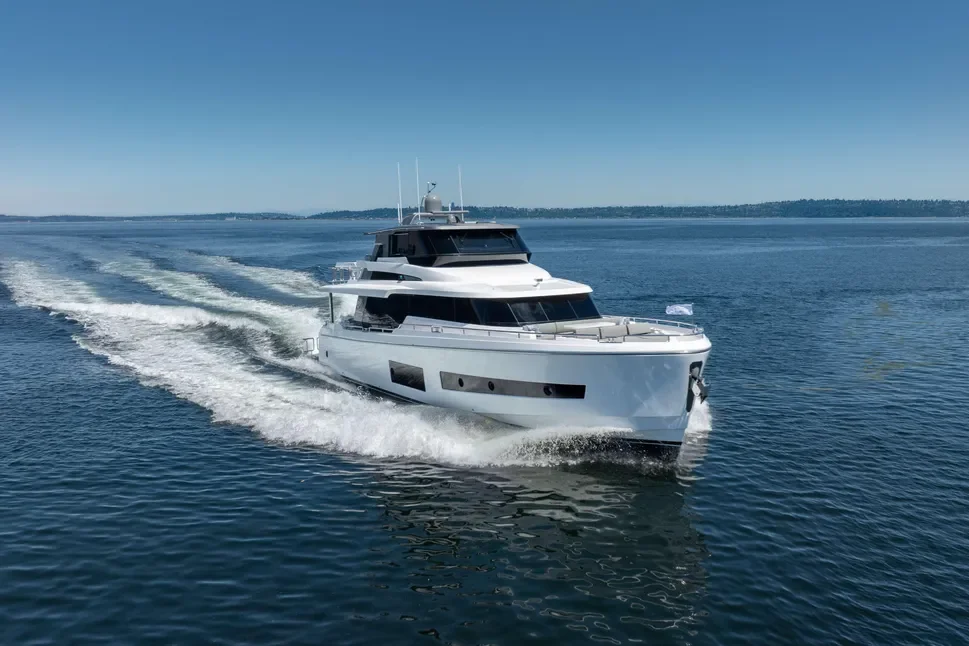

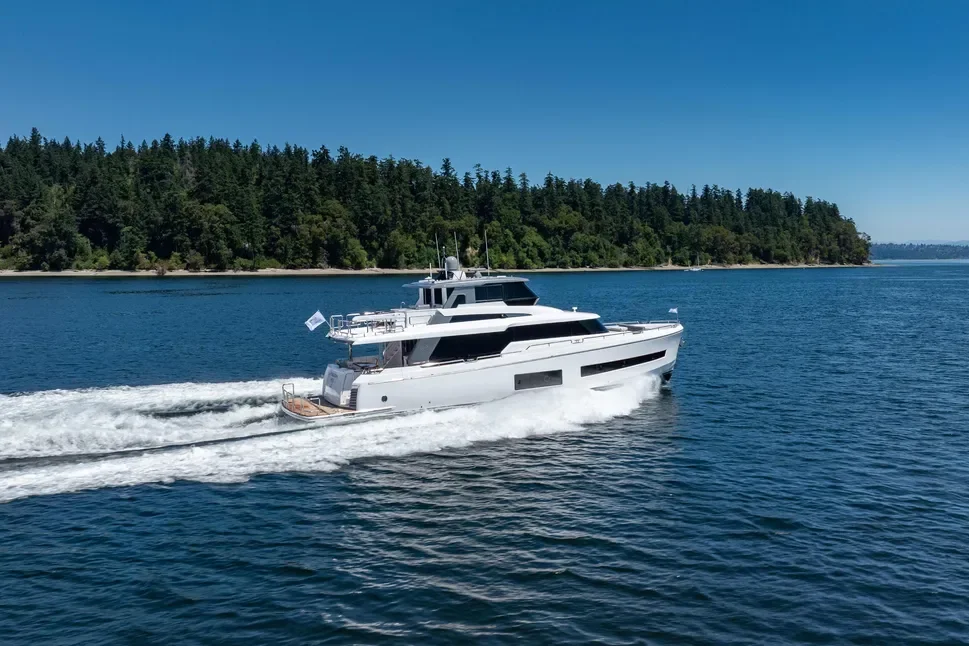

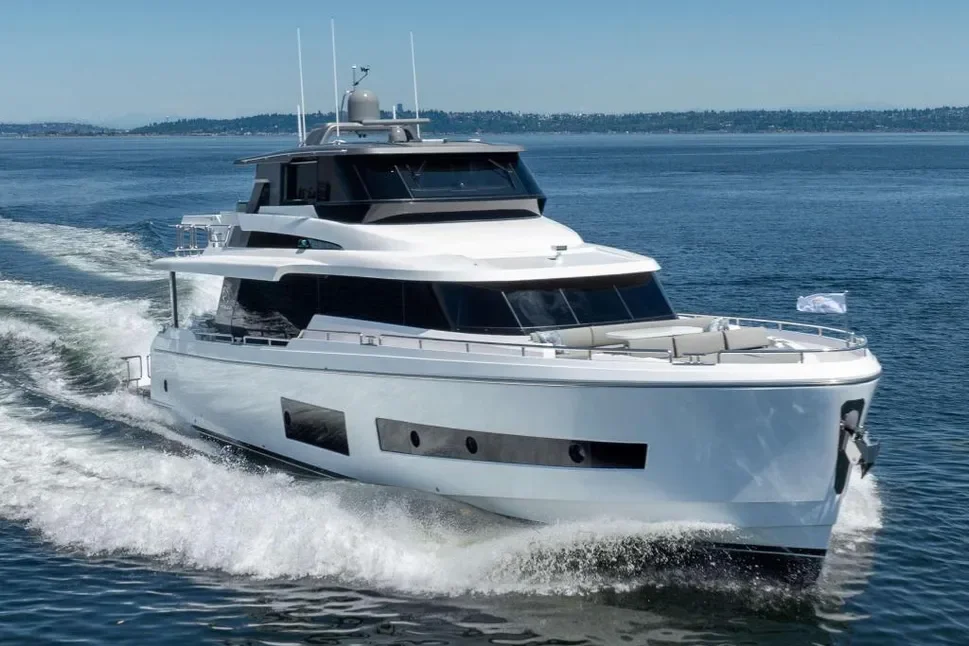

Copious large yacht features ingeniously fitted within a manageable owner/operator framework – this is the cornerstone of the Horizon V68 motoryacht model. Created in collaboration with world-renowned designer Jonathan Quinn Barnett, the V68 has been planned throughout with spacious accommodations, wide side decks, and a voluminous interior on a 19’6” beam that takes advantage of large windows in the main deck and cabins. The V68’s plumb bow design – a striking feature from Stimson Yachts’ hull design – allows for a longer waterline and reduces drag at lower, displacement speeds; the larger hull beam also makes for greater stability when it counts most. Ideal for first or second-time buyers, families and owner/operators, the Horizon V68 luxury motoryacht provides the qualities of a superyacht – safety, solid architecture, and customization – all in under 70 feet.

FORWARD & AFT DECKS

FRP side and foredecks

Heavy-duty S/S handrail w/ 1 ¼” stanchions

FRP cap rail

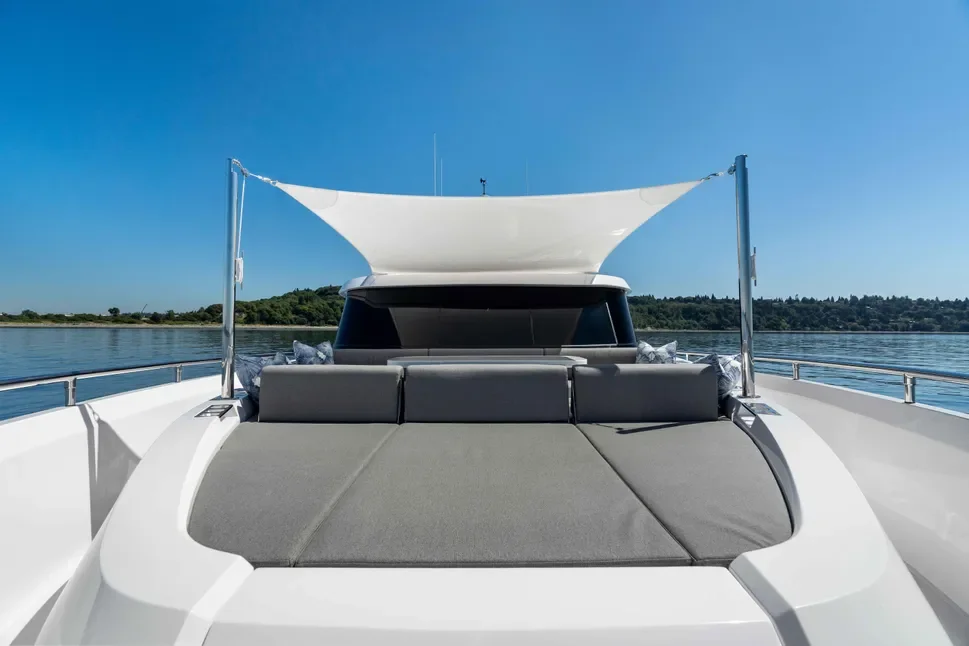

Sunpad on fwd. deck w/drink holders, storage lockers, and pop-up LED lighting

Forward seating w/ Corian table

Custom design bow sunshade over seating with two S/S fittings & poles

Fwd deck (x2) JL Audio speakers w/ amp

(1) Maxwell VWC3500C vertical hydraulic anchor winch

(1) Acco 300’ anchor chain

(1) 70kg S/S anchor

Fresh water & sea water anchor chain washdown (manual)

S/S portholes w/ screens

Frameless windows, tinted Low-E tempered glass

Wired remote control with outlet on aft deck to control engines and thrusters

Side boarding gates port & stbd

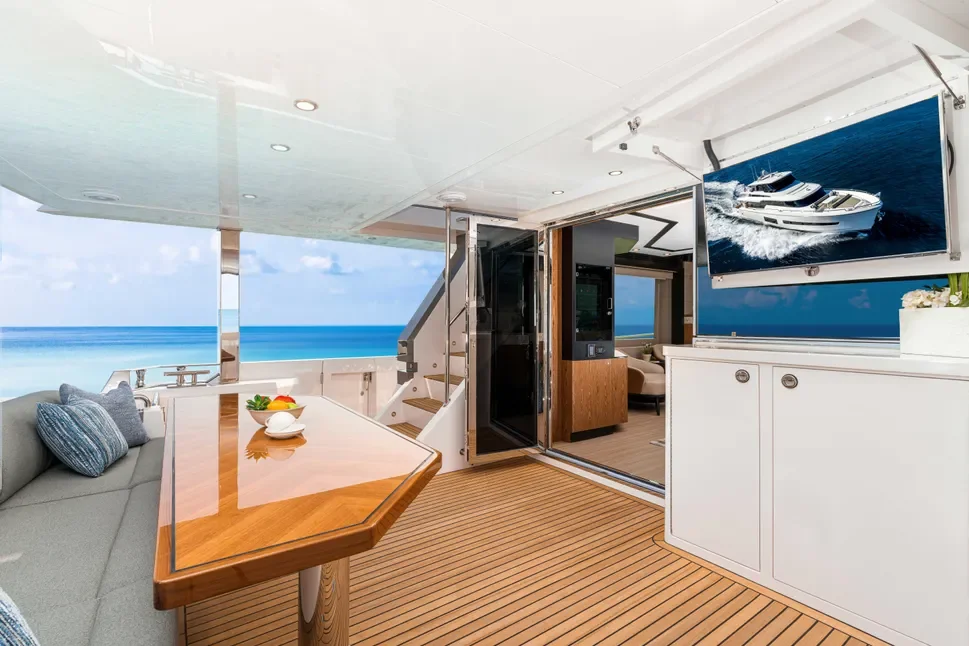

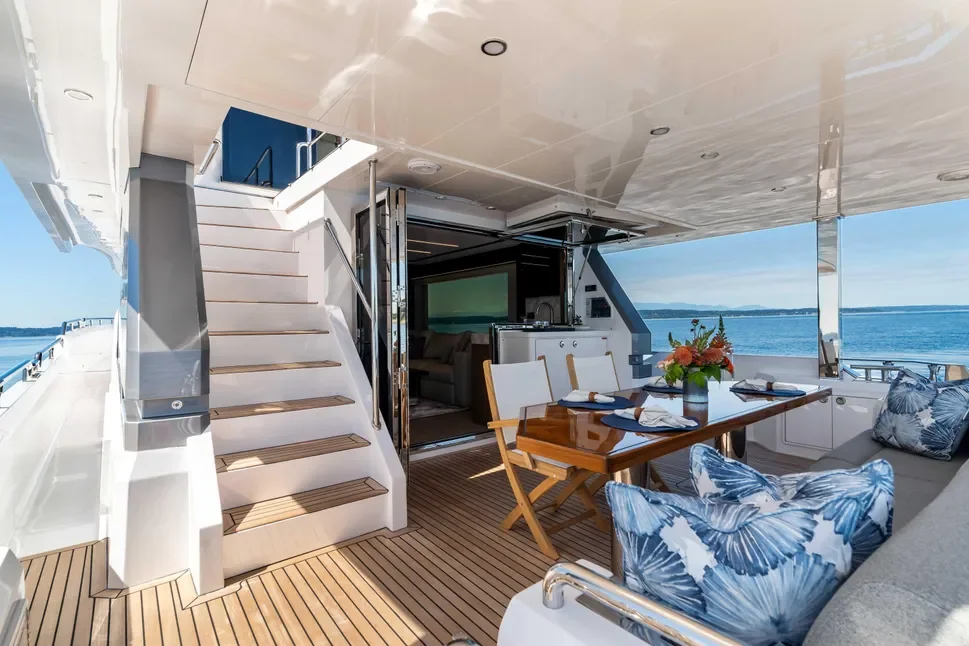

Teak aft deck, swim platform & stair steps

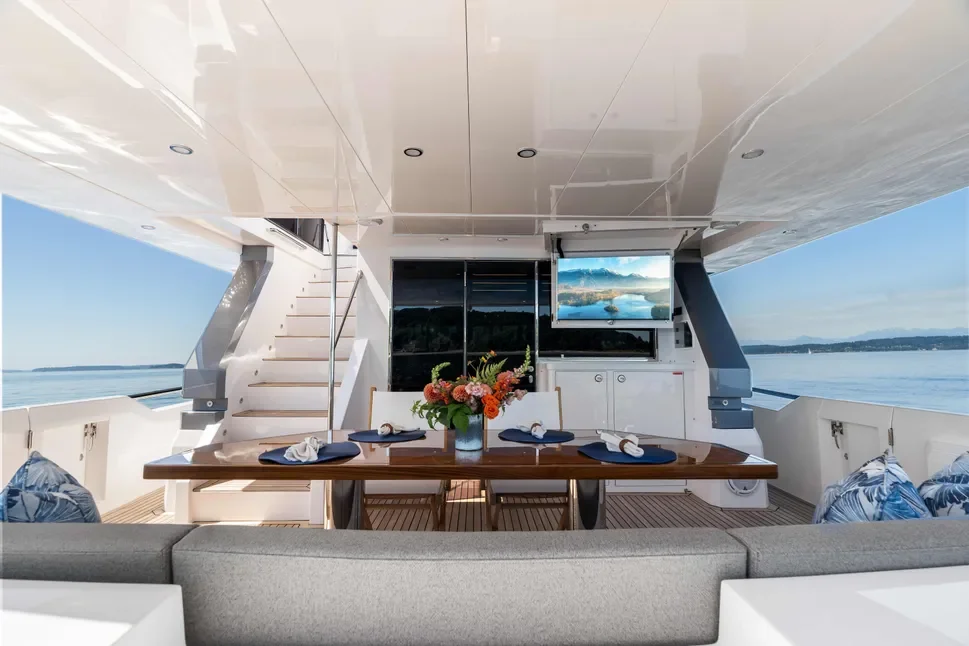

Dinette aft seating w/sliding teak high gloss table

Extended 18” FB deck with manual roll-down screen

S/S manual foldable sliding door for the main salon

Manual fold-down 43" TV w/ hydraulic damper

Aft deck JL Audio speakers and marine system

Comfortable stairs with S/S handrails from aft deck to boat deck

Watertight door to crew quarters & ER

Built-in hot/cold water shower at swim platform

Hydraulic Hi/Lo teak swim platform, 1500lb load capacity

(8) Heavy-duty S/S cleats, including (2) on corners of swim step & fairlead w/ rollers

(4) Blue underwater lights on transom under swim platform

LED boat name on stern

Manual S/S swim ladder

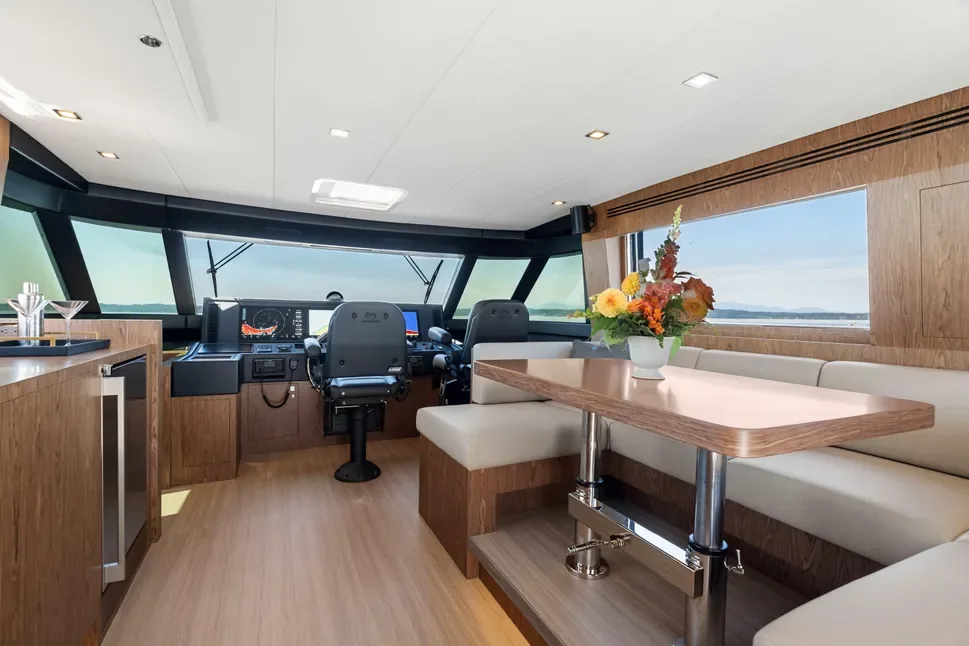

SKYLOUNGE & BOAT DECK

Integrated instrument panel w/ full set of engine gauges, compass & C-Zone System for monitoring system for important equipment (fuel & water gauges, generators, navigation lights, bilge, sump pumps, ER blowers, etc)

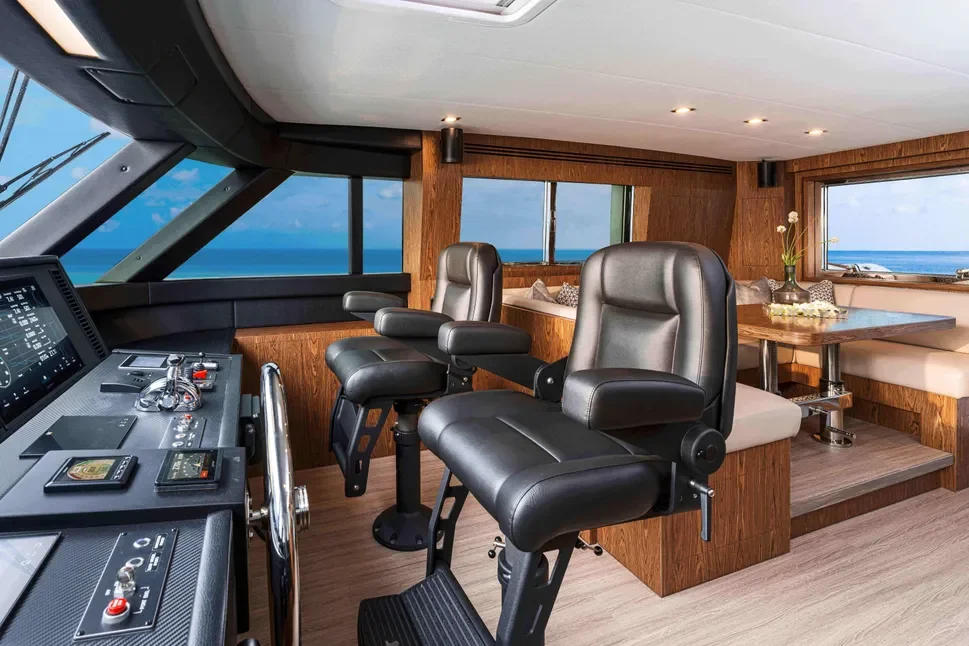

(2) STIDD helm chairs

Day head in Skylounge

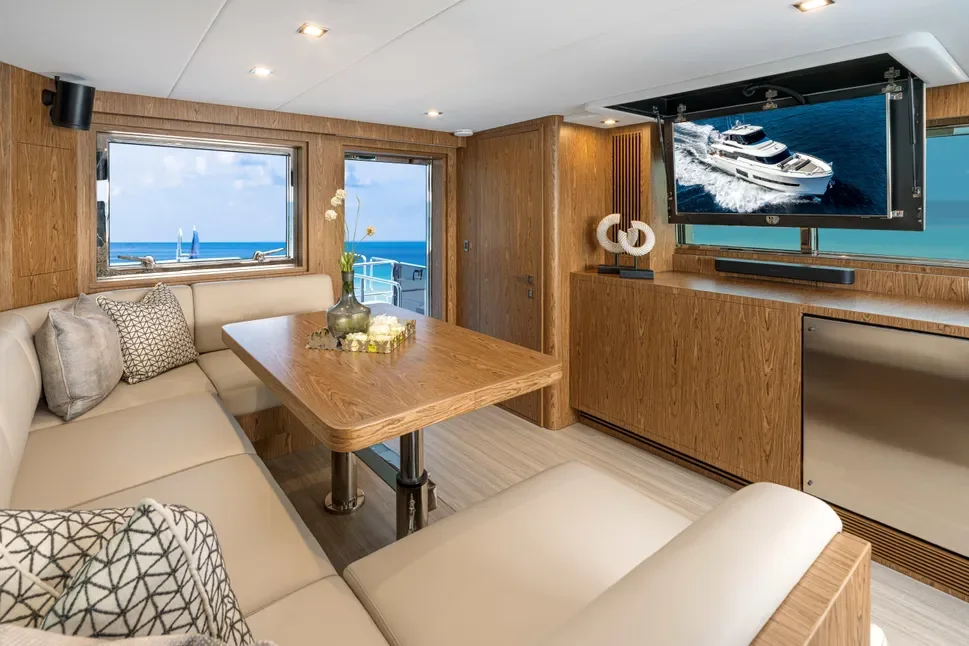

U-shaped sofa w/custom-made convertible hi/lo satin table

Manual fold-down 43" TV from ceiling w/ hydraulic damper

Half-height cabinets under TV w/ fridge & icemaker

One hatch on top of Skylounge

60” S/S manual sliding glass panel windows

S/S sliding door to boat deck

FRP boat deck

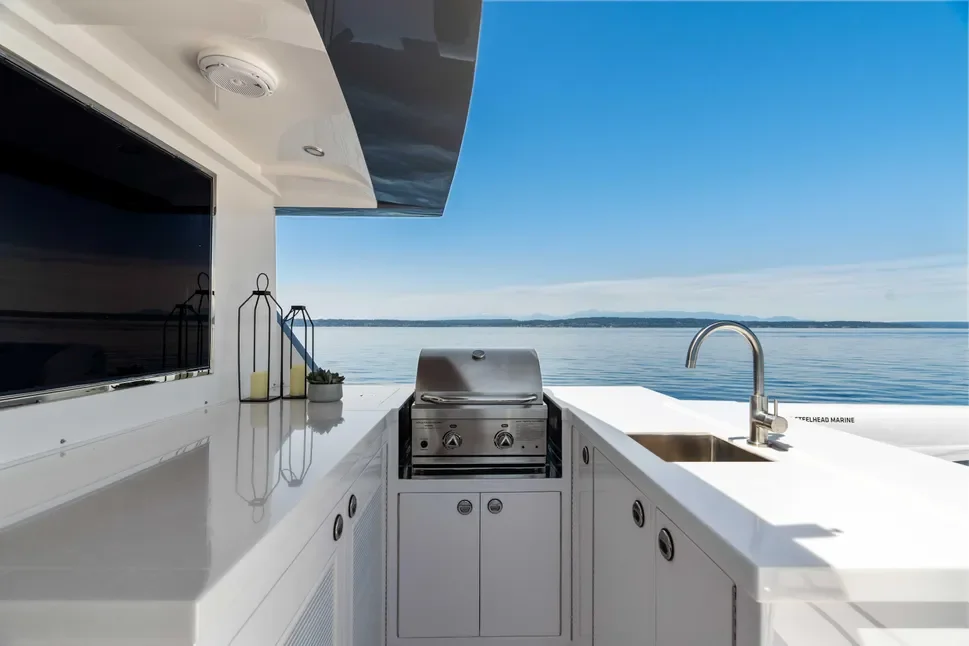

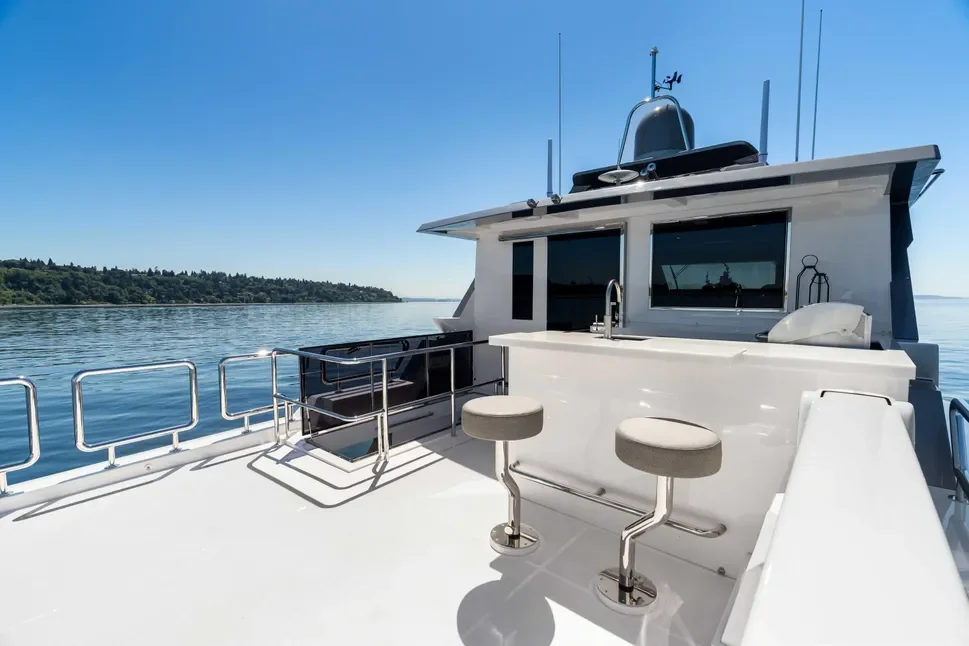

Custom design U-shape bar on boat deck w/ 2 barstools, sink & 24” BBQ

Large opening S/L window to bar

GE 7.0 cu chest freezer w/ FRP cabinet

Steelhead ES1500 (1500lb) davit

S/S removable rails around FB boat deck

FRP radar arch

Up lights for mast

Custom design grey paint dome

ENGINE & PROPULSION DETAILS

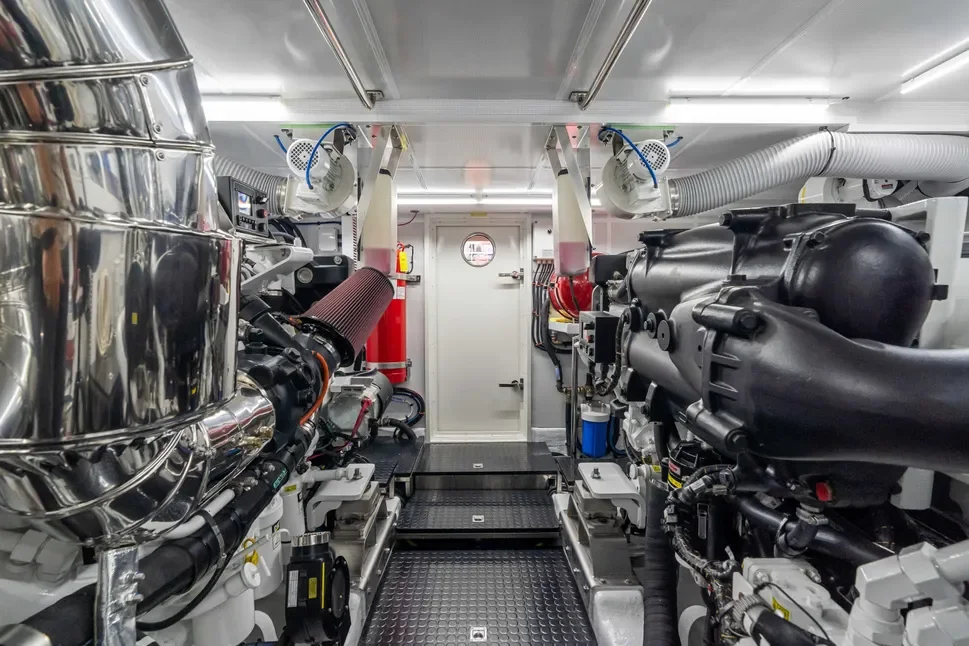

Twin CAT C-18A 1150 HP engines

(x2) Onan generator 29kW

3kW inverter

S/S Aqua Tech #22 HS shafts

High performance 4 blade propellers

Main & intermediate bronze struts w/ backing plates

Emergency steering device

S/S rudder w/ zinc plates

Zipwake trim tabs w/ indicators

Hypro electronic command steering system w/ backup pump

TIDES rudder & shaft seals

Humphree stabilizer w/ two 100A chargers & eight units of 400A/6V service batteries

Side Power SH320/300 23.3hp bow & stern thrusters

Shore power system one 100amp 75' cable master w/ one 50Amp receptacle at stern

15KVA & 25KVA transformers for shore power system

Exhaust system for engines w/ mufflers

FRP water/exhaust separator for generator

S/S covers for engine exhaust pipes

TRIDENT hose for engine exhaust

Sound & heat insulated material in bulkheads & ceiling

S/S overhead grab rail on each side of engine

Engine compartment AC & DC blowers

LED backlights for fuel sight gauge & fuel filters

Air compressor

MECHANICAL SYSTEMS

1,200-gallon aluminum fuel tanks w/ sight gauges & self-closing control valve

Dual Racor 75/1000 MA fuel filters/water separator, each engine

Racor 500MA fuel filter on generator

Oil change pump system for engines, gears & generator

Marine Air chilled water air conditioning for salon and each cabin

S/S water tanks

High-volume AC freshwater pressure pump & one DC pump for backup

Dometic SeaXchange & Spot Zero XZII 1800/2000Z water maker + water purifier

Freshwater charcoal filter in main supply pipe

Marine grade lines & color-coded piping for freshwater system

(1) Hot water heater 30 gallon

Hot water circulation pump

Freshwater hose for filling engine and generator expansion tank

Freshwater & seawater washdown faucet in aft. deck and F/B

120-gallon holding tank w/ macerator pump

Sump pump systems for drains overboard

Y-valve for holding tank for dockside pump-out

Electric Rule bilge pumps

(1) Manual bilge pumps in engine room

Bilge exhaust ventilation fan

Sea-Fire automatic/manual fire extinguisher for ER w/ panel in helm station

Automatic fire damper system

ELECTRICAL SYSTEMS

LED lighting system throughout interior & exterior

Termodinamica air conditioning system plus EX707 panel

Dimmer switch for salon & S/L

100 amp shore power system, plus 50 amp

40 AMP transformers

80A VICTRON SKYLLA-I battery charger for engine & generator start-up batteries

80A VICTRON SKYLLA-I battery charger w/ control panel for service batteries

(4) 210A AGM batteries for engine & generator start-up

(4) 210A AGM batteries for ship‘s service power

24-volt DC monitoring

GFI protection for all AC outlets in exterior, heads, galley & engine room

Main electric panel includes AC & DC circuit breakers.

Italian VIMAR switches for lighting switches & receptacles.

Electrolysis bonding system

(2) Stern docking lights

KVH HD7 SAT and (5) receivers, no dummy dome

Cellular router system w/5G Wi-Fi on board

INTERIOR DÉCOR & EQUIPMENT

Guest accommodations include full-beam master stateroom, fwd VIP cabin, & guest cabin, all ensuite

Crew bunk w/ head and shower

Custom luxury interior package for soft goods, décor & lighting

Full glasses set for (8) (Wine, Champagne, Martini, Double Rock and Burgundy)

Main wood: walnut in satin finish w/ Mosia wood flooring

Fabrica carpet for all staterooms

Cambria quartz countertops & flooring in galley & all stateroom heads

Stacked Electrolux washer/dryer in foyer hallway

High-quality push buttons for cabinet doors

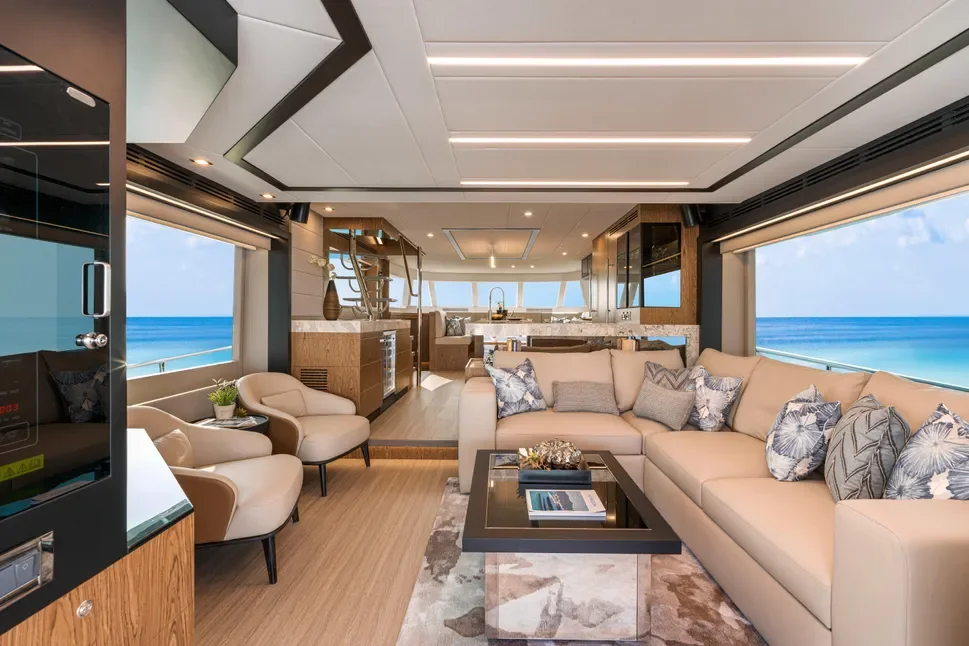

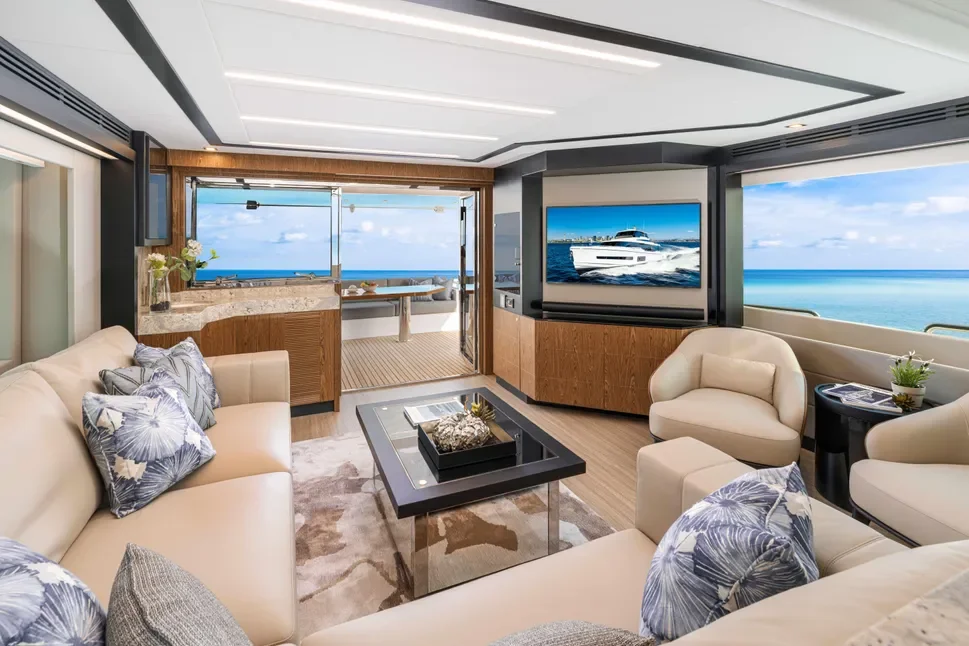

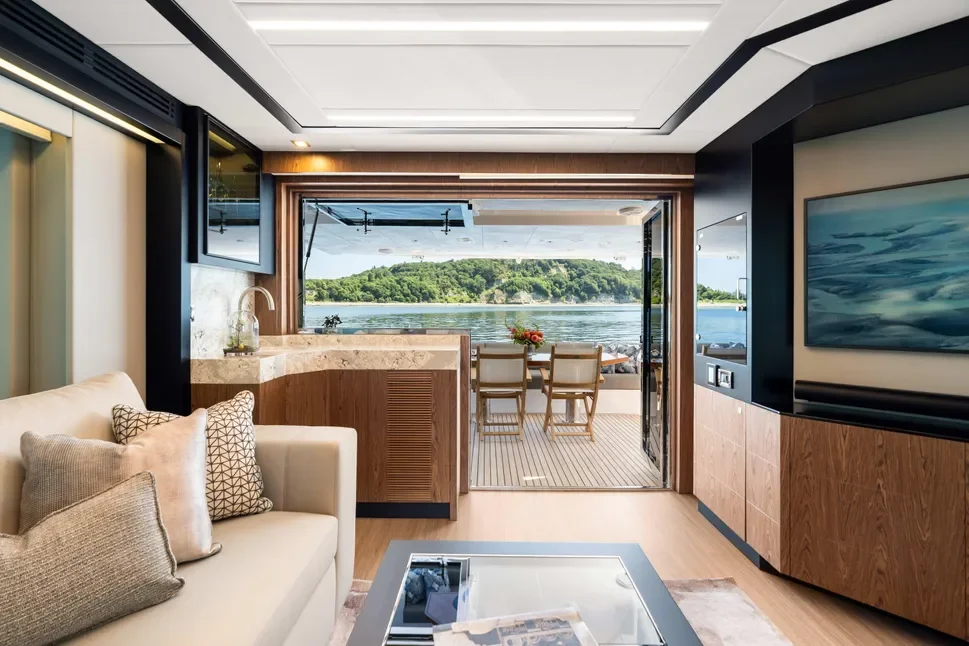

SALON

Wood flooring

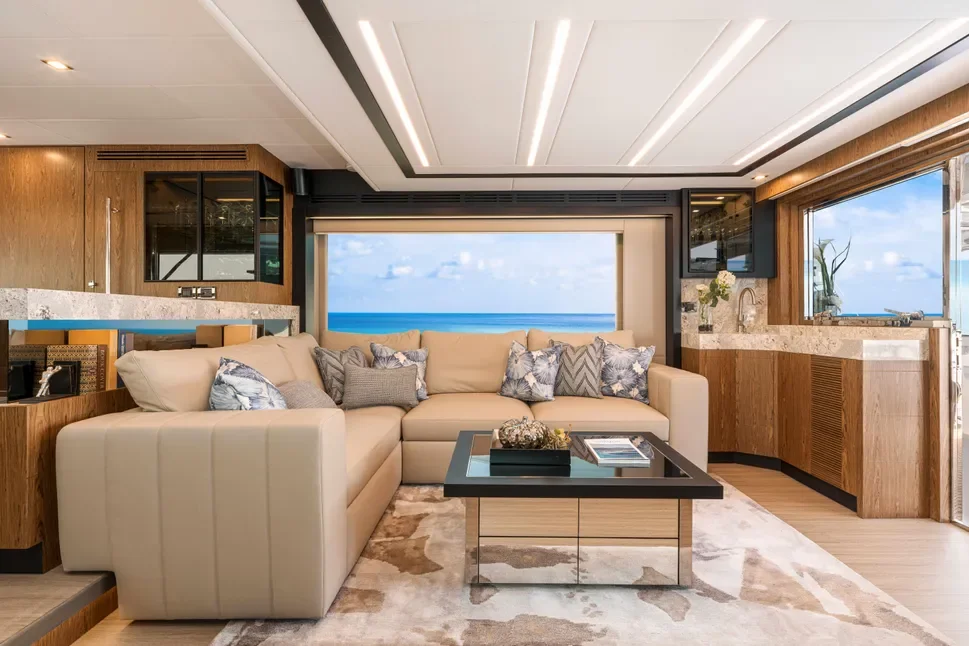

L-shaped sofa w/ coffee table, designer rug to stbd

(2) loose chairs w/end table to port

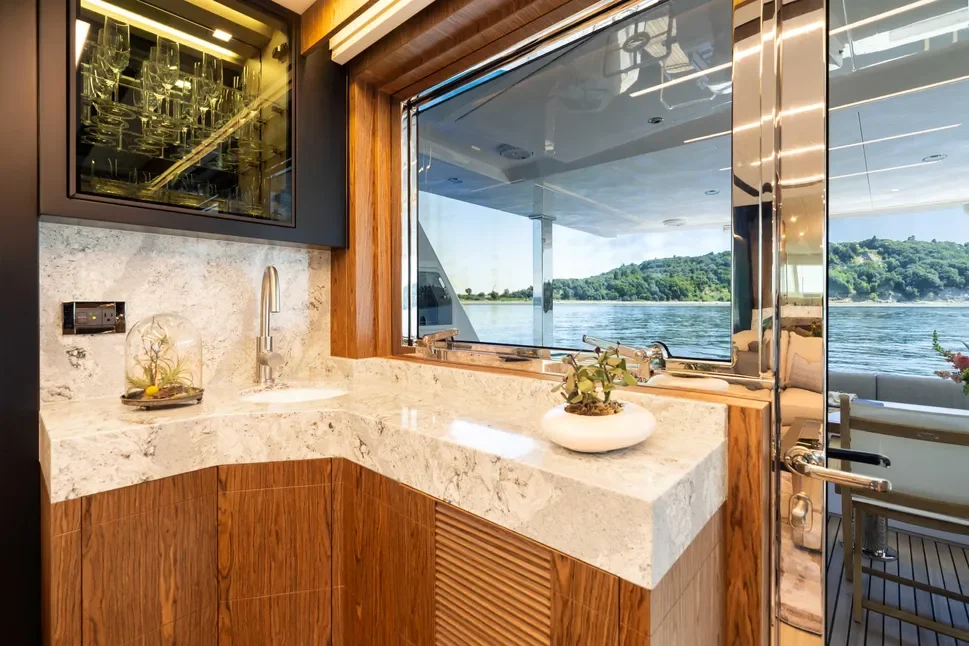

Custom wet bar w/ sink, icemaker, glassware storage & bar top to serve aft deck

Upgraded electric blinds for port and stbd windows

50” Frame TV

Sonos entertainment system

Apple TV

Direct TV

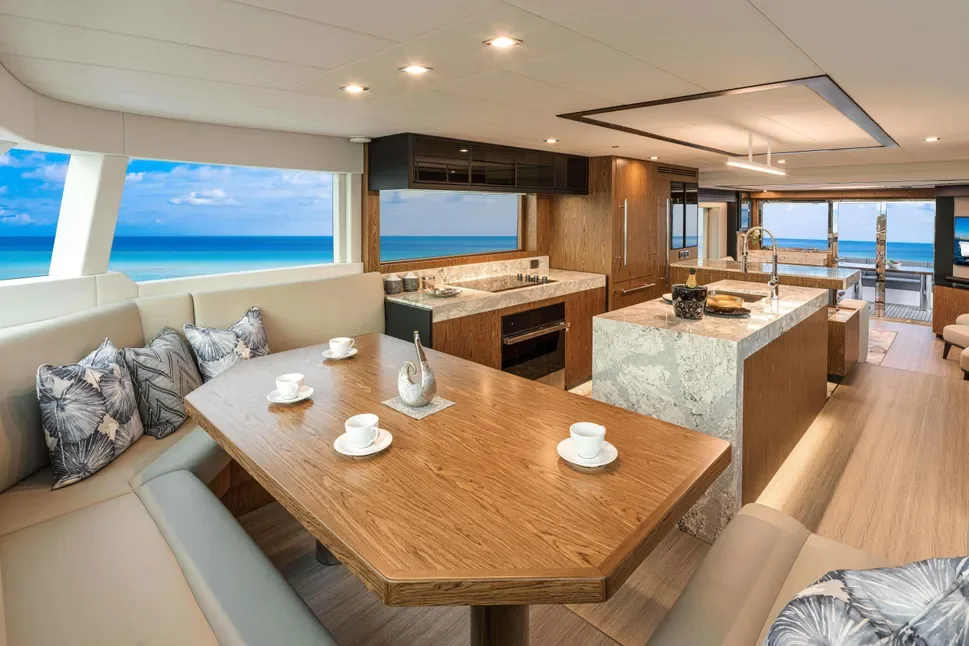

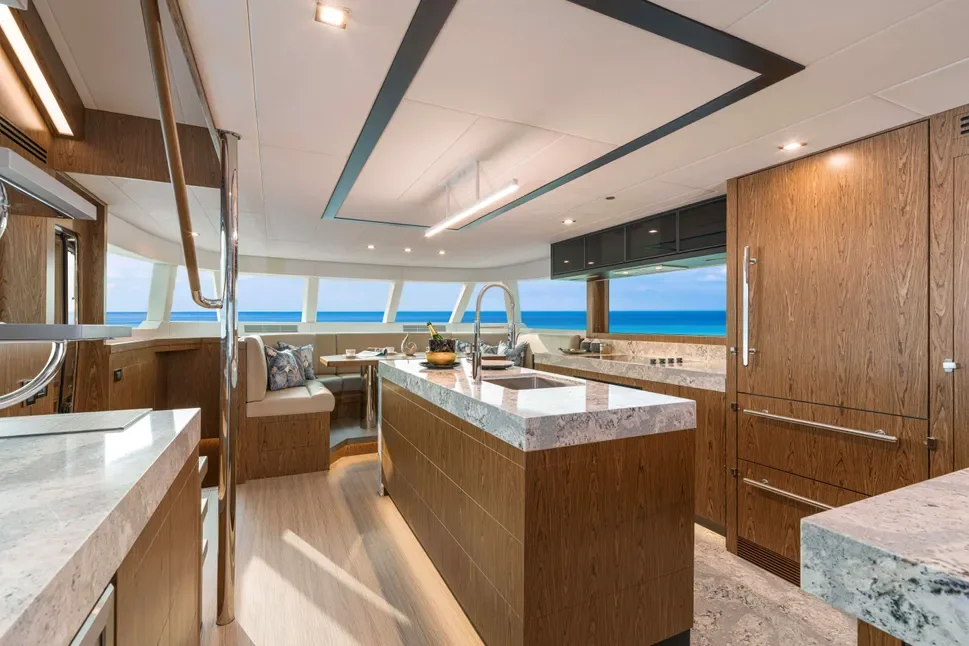

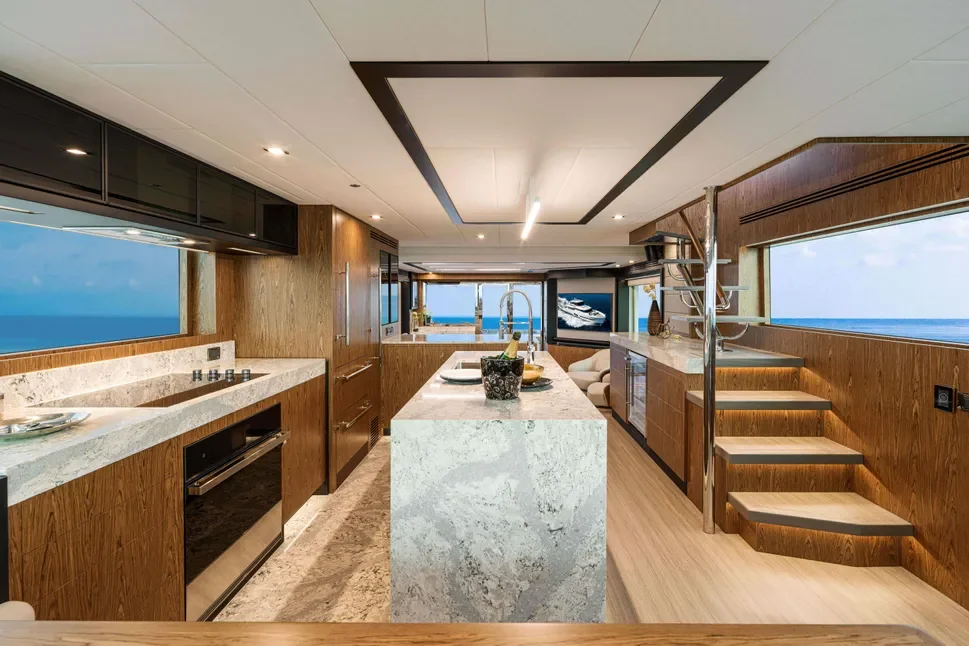

GALLEY/COUNTRY KITCHEN

Cambria quartz floor in the galley

Wood floor for outside galley & dinette

Panel-ready Miele refrigerator & icemaker

Jenn-Air cooktop

Jenn-Air oven

GE trash compactor

Summit wine cooler

GE garbage disposal

Panel-ready Bosch dishwasher

“U” shape kitchen dinette

Galley island, S/S sink & faucet

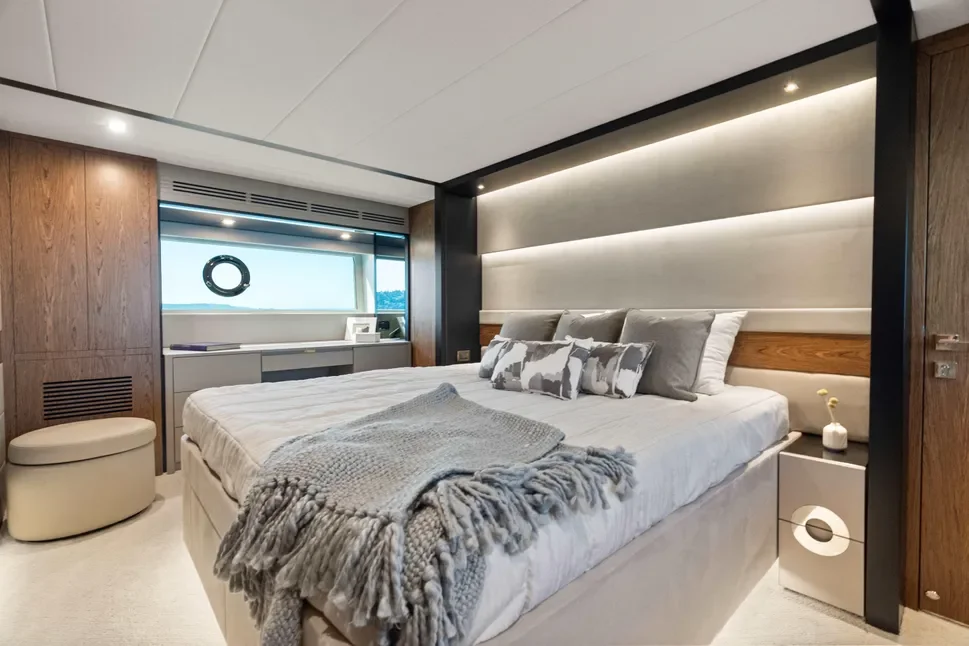

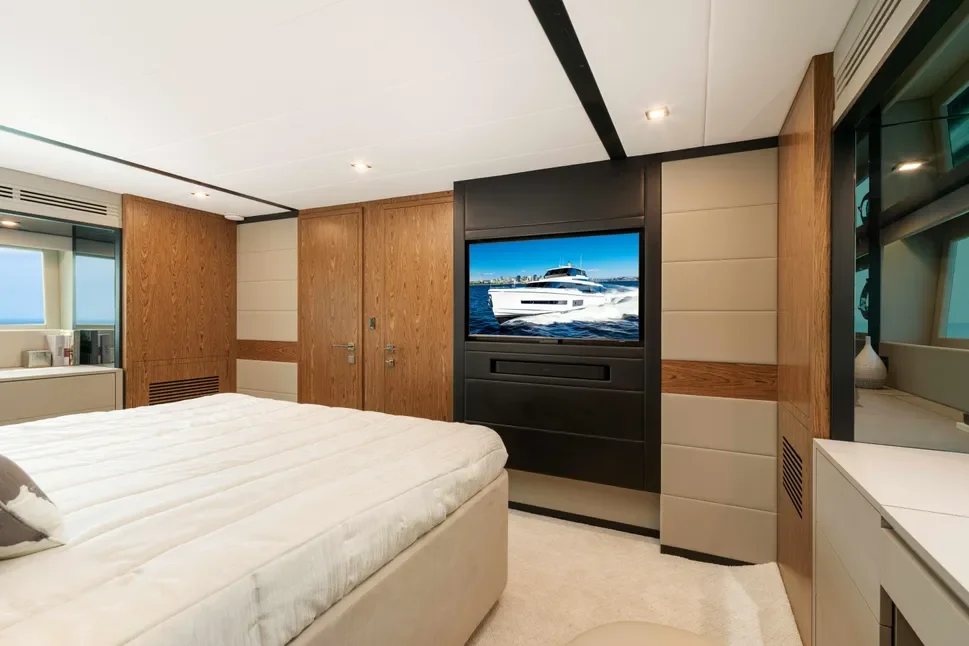

MASTER STATEROOM

King size bed w/ hotel inspired mattress & headboard

His & her walk-in carpeted closets

Vanity w/ chair to stbd

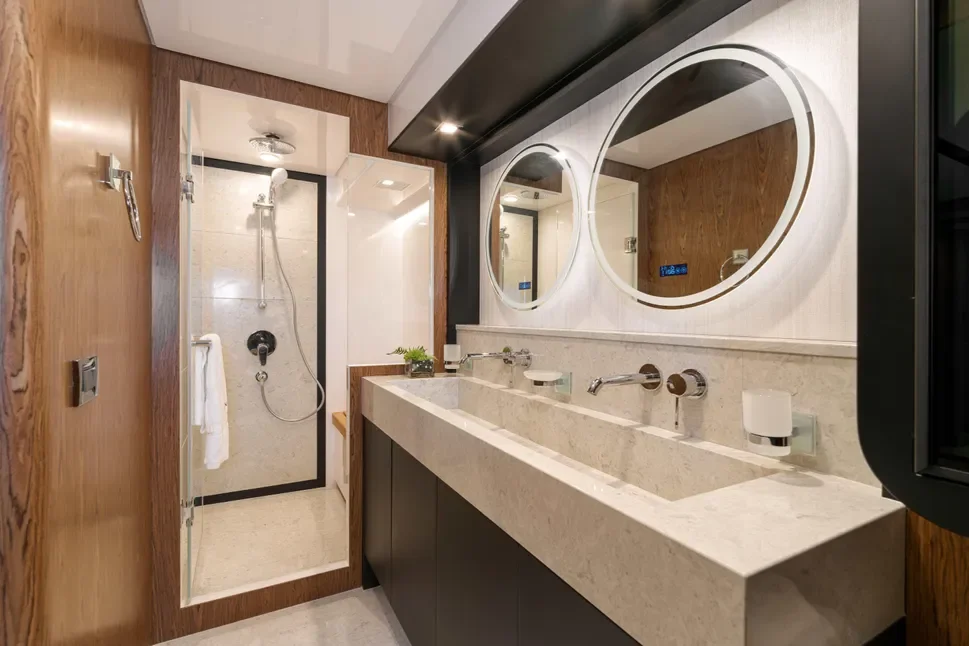

Large ensuite head w/ dual sink, rain shower & toilet

Extra full height storage

43” Samsung TV

Sonos beam

Direct TV

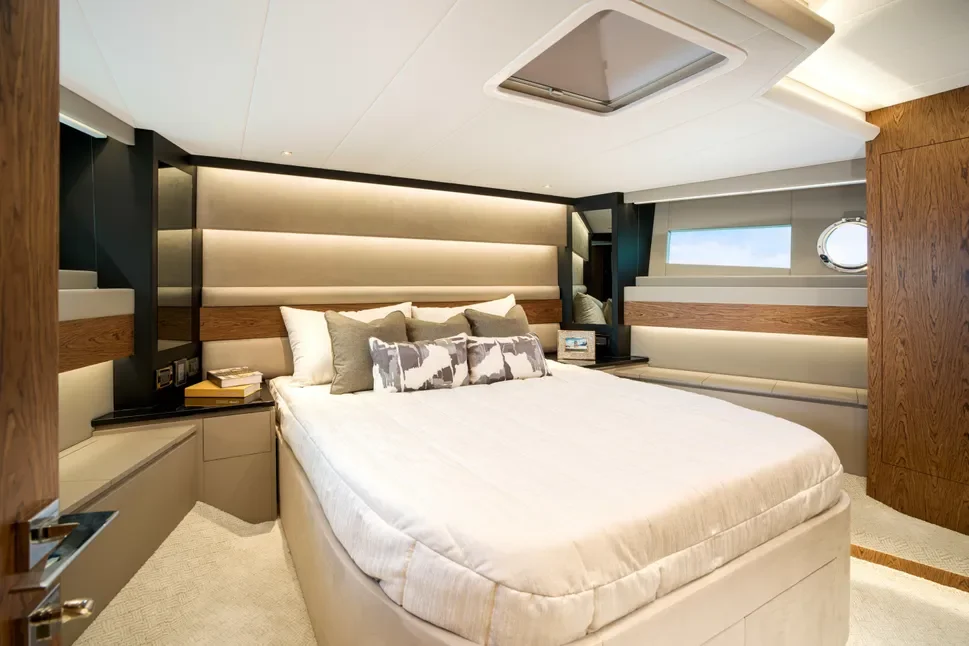

VIP STATEROOM

Queen size bed w/upgraded hotel-inspired mattress & headboard

Dual hanging lockers

En suite head w/ upgraded granite sink, rain shower & toilet

42” Samsung TV

Sonos beam

Direct TV

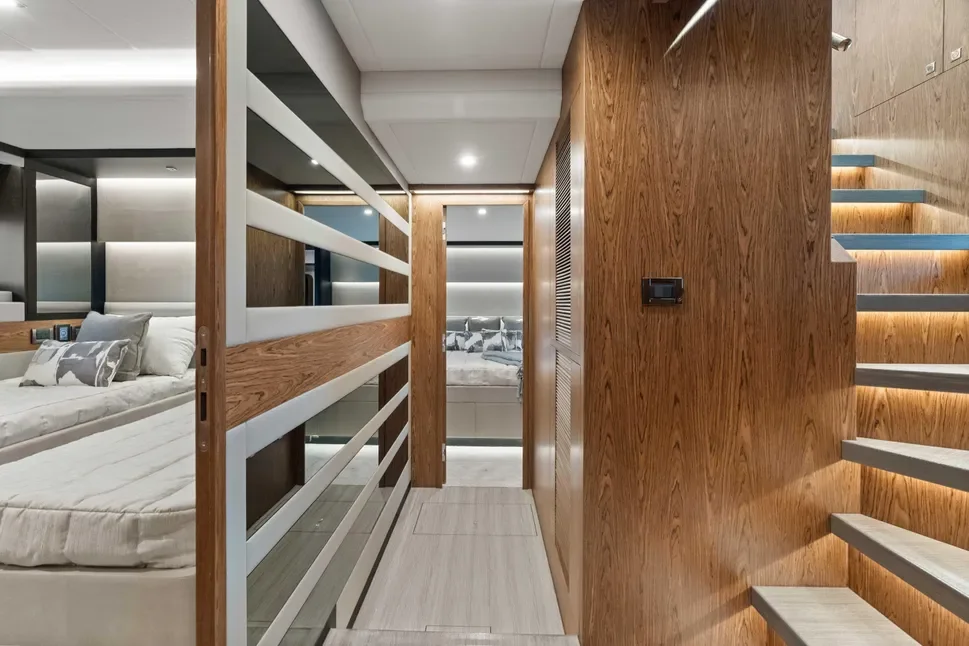

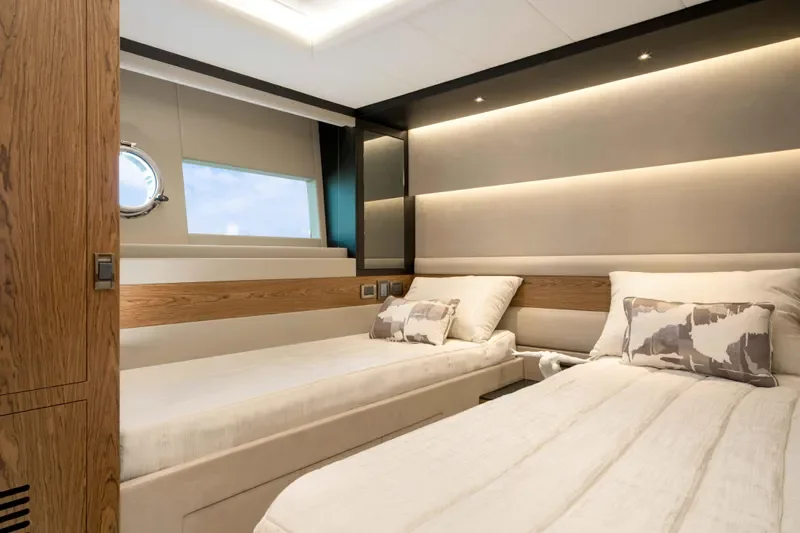

GUEST STATEROOM

(2) Single berths w/ optional sliding function

Foam mattresses w/ headboard

Hanging locker

En suite head w/ upgraded granite sink, shower walls & toilet

24” Samsung TV

Sonos beam

Direct TV

CREW QUARTERS

Customed design crew cabin with two single berths

GE Microwave and Vitrifrigo fridge in crew galley

Electric toilet, sink, and shower

2 USB Reading lights in crew cabin

Entrance from transom watertight door & emergency aft deck seat with ladder

Hanging locker

(1) A/C unit

NAVIGATION

Garmin GPSMAP 9222 navigational system w/ (3) 22” screens at helm

Garmin open array GMR 1234 xHD3 radar

Garmin Autopilot

Garmin AIS 800 and GPS

Garmin VHF (2) & card reader

Garmin black box sounder

Garmin GMI 20 digital multi-display

Garmin marine camera (1) in engine room & (1) aft deck

C-Zone Monitoring System

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
