Auxiliary 8 kw Generator

Accommodations

Custom Construction / Options

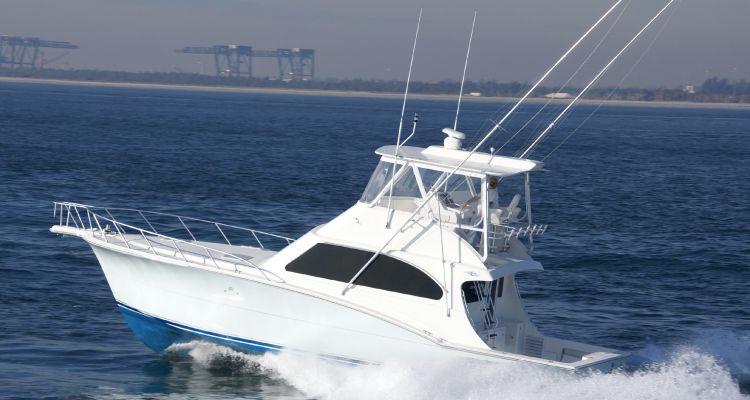

The 44' Sport Yacht is built with Jersey Cape's superior quality and attention to detail.

Custom Hull Color

Tournament Package

Bow Thruster

Custom Teak Helm

Auxiliary 8 kw Generator

Many more options - contact Jersey Cape Yacht Sales for additional options

Standard Features

Awlgrip engine room

Solid Lamination below the waterline

Dripless shaft logs

Glendinning Synchronizing System

Custom Galley and Head flooring

Designer interior furnishing & counters

Cablemaster

Oil exchange system engines & generator

Generator

Transom fishbox with livewell

Contact Jersey Cape Yacht Sales for the expansive Standard Features

Dimensions

LOA: 44 ft 5 in

Beam: 16 ft 0 in

Maximum Draft: 3 ft 3 in

Displacement: 44000 lbs

Bridge Clearance: 16 ft 6 in

Engines

Engine 1:

Engine Brand: Caterpillar

Engine Model: 12.9

Engine Type: Inboard

Engine/Fuel Type: Diesel

Location: Port

Drive Type: Direct Drive

Engine Power: 850 HP

Engine 2:

Engine Brand: Caterpillar

Engine Model: 12.9

Engine Type: Inboard

Engine/Fuel Type: Diesel

Location: Starboard

Drive Type: Direct Drive

Engine Power: 850 HP

TECHNICAL FEATURES & OTHER OPTIONS

Tanks

Fresh Water Tanks: (120 Gallons)

Fuel Tanks: Aluminum (750 Gallons)

Accommodations

Number of single berths: 2

Number of double berths: 1

Number of cabins: 2

Number of heads: 2

Tournament Package:

Half-tower with three-sided enclosure, single lever controls, outriggers, Tournament helm chairs, rod holders (2) added to each cockpit wind, windlass, emergency Y-valves, power steering and full salon carpet runner

Helm and Electronics

1. AC/DC distribution panel w/ 120/240V AC
2. 12/24V DC magnetic breakers, integral
3. Generator controls; AC & DC voltmeter and high bilge indicator lights
4. Generator hour meter
5. Anchor/mast light
6. Batteries– Heavy duty w/ fiberglass box
7. Battery charger
8. Battery disconnect switches
9. Battery paralleling
10. Cablemaster with 50’ cord
11. Central vacuum system
12. Color coded harnessed wiring system
13. Dyno-plate, grounded
14. Engine room lighting (DC and 120VAC)
15. Flybridge DC distribution panel
16. Horns - dual
17. Internal bonding system

Engine and Mechanical

Mechanical:

1. Acoustical and thermal insulation
2. Air Conditioning– Reverse cycle
3. Auto/Manual fire extinguishing system
4. Bilge pumps w/ high water alarm (3)
5. Engine blowers (2)
6. Diesel Engines (fresh water cooled)
7. Dockside water with pressure valve
8. Dripless shaft logs
9. Electronic cutch and throttle controls
10. Engine synchronizer
11. Exhaust mufflers—Engines and generator
12. External sea water strainers
13. Freshwater spigot in engine room
14. Fuel lines– Flexible aircraft type
15. Fuel tanks–Welded aluminum
16. Fuel filters– Engines and generator
17. Fuel transfer pump
18. Generator—13KW (fresh water cooled)
19. Holding tank w/ dockside Pumpout/overboard diverter valve
20. Hydraulic steering
21. Oil change system– Engines and generator
22. Propellers - High performance
23. Propellers shafts
24. Rudders
25. Struts (Manganese Bronze dripless)
26. Trim tabs (recessed)
27. Water heater (20 gal.)
28. Water system, Heavy duty, pressurized

Engine Room:

1. 12V freshwater pump (backup to std. 110V pump)
2. Air circulation fans (2)
3. Auxiliary 8kw generator
4. Emergency bilge y-valve pump out
5. Fuel priming pump 24V
6. Spare propellers
7. Voltage stabilizer transformer
