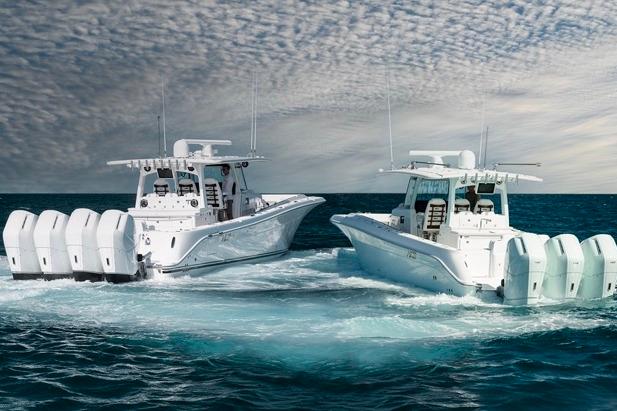

2026 HCB 42 Lujo | 46ft

CONSTRUCTION:

• EPA compliant fuel system
• Full Composite Construction
• Hand-laid Fiberglass Lamination utilizing Premium Gelcoat Finish
• 100% Vinylester on all fiberglass laminates
• Vinylester barrier coat
• Pre-cut stitched Bi-Axial structural fabric
• KEVLAR® reinforcement
• Ceramic Transom Pour
• Integrated Fiberglass Structural Grid system, bonded to hull with methacrylate adhesive, injected with urethane foam

HULL AND DECK

• Anchor locker – self-draining
• Bilge compartment lighting, LED
• Labels for all electrical and mechanical components
• Bow and stern eyes – stainless steel
• Bow Rail – Polished 316 Stainless Steel
• Cleats (7) – 10” stainless steel, pop up
• Drink holders in Gunwales – stainless steel (4)
• Hawse pipes with dock cleats (2), aft
• Heavy-duty dive ladder (1), telescoping
• Rod holders (16) - stainless steel gunwale mount
• Rod holders – Deep Drop Swivel gunwale mount (4)
• Rod storage in gunwale, port & Starboard side cockpit (4 per side)
• Thru-hull fittings – bronze, below waterline
• Thru-hull fittings – stainless steel, above waterline
• Underwater Side lighting/ Spectrum RGBW (2) Port & Starboard
• Fender Cleats (6)

COCKPIT

• Summer Kitchen with Corian countertop, sink, stainless steel gas grill (removable), 12-volt refrigerator and cutting board
• Premium Grade personalized Upholstery w/custom vinyl and colors
• Bow Cushions
• Gear storage in forward battery compartment
• Cockpit bolsters
• Courtesy lights – LED RGBW
• Drink Holders in cockpit – stainless steel (14)
• Fully Insulated Bow Fish boxes – (2) forward, above deck with overboard drain
• Fully Insulated Aft fish boxes – (2) in-floor, with overboard gulper pumps
• Livewells – Dual transom, 45 gallons each, with (2) 2500gph Hooker Electric Variable Speed primary pumps
• Self-draining cockpit with oversized scuppers
• Hardtop – fiberglass, full cockpit width, (7) rod holders, (3) Aft spreader lights, (10) overhead lights RGBW, (2) Fwd. Spreader Lights
• Hardtop Grab Handles
• Marine Grade Coating for Durability on Hardtop Frame, Faired Welds
• Transom door with heavy duty latch
• Transom seat, bottom cushion and backrest – fold away
• Tuna/ Dive/ Utility Door, Starboard side, opens in to allow for usage while docked
• Cockpit Shower – Fresh water integrated into Hardtop frame (cold water only)
• Hardtop Grab rails Port & Stbd
• LED spotlight with dash mounted control
• Mast Head Light, folding
• Diamond Non-Skid on Deck and Hardtop
• Floor lights – Warm White

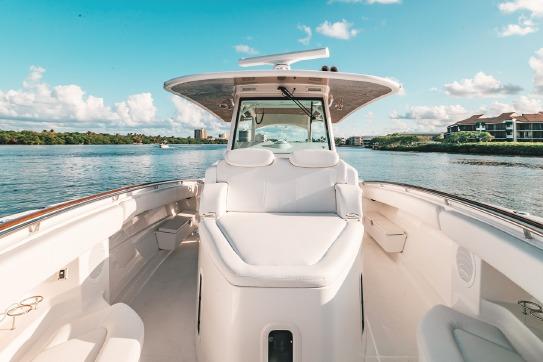

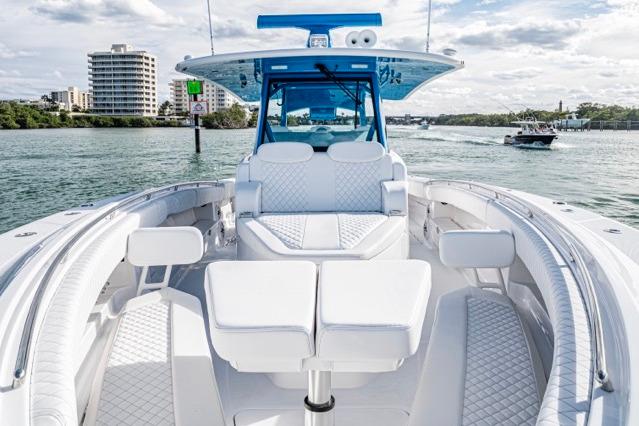

• Seating – Bow, U-shaped

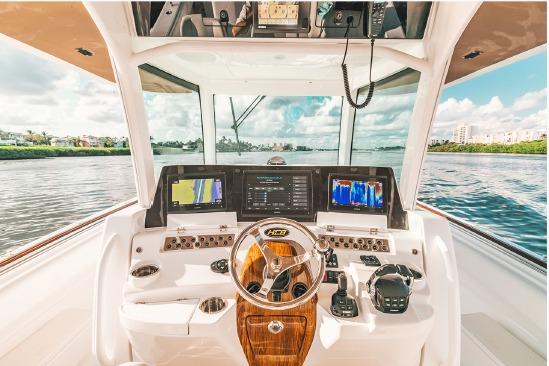

CONSOLE &HELM STATION

• Accessory plugs – 12 volt (2)
• USB Dual Outlets (4)
• Compass
• Elevated Helm base with storage drawers
• Sleigh seat with contoured back rests, arm rests, cup holders and Port storage compartments
• Forward console lounge seat with contoured backrest with cup holders (2)

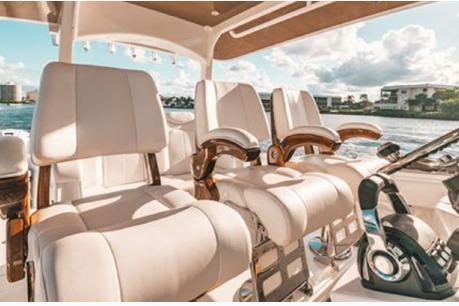

• Helm seat – Triple Swivel Captain’s chairs with folding arm rests mounted to suspension pedestals
• Steering wheel – Stainless Steel with comfort grip and knob
• Storage Compartment – lockable overhead storage
• Stainless Steel Switch panels with backlit switches
• Windshield – Integrated with tempered glass
• Windshield wiper washer system
• Helm Grab Handles Port & Stbd

STANDARD ELECTRONICS

• Garmin Triple displays with dual chirp transducers, (1) 16” screen and (2) 12” screens, with integrated maps and Garmin GSD 25 Sonar
• Garmin xHD3 4’ 4kW open array radar
• Auto Pilot (Yamaha/Mercury)
• Dual Horn SS Trumpet
• VHF radio, wired remote handset (Garmin/ICOM)
• Transducers – Dual 1kW Each (Airmar), Chirp L/H
• Stereo System: Garmin Fusion Apollo Head unit, Sirius XM radio receiver/antenna, JL Audio Flush Mounted Luxe Speakers

CONSOLE GALLEY / HEAD COMPARTMENT

• Cabin – Enclosed Head Compartment with Ceramic Macerating Electric Flush Toilet and Pull Up Handheld Shower

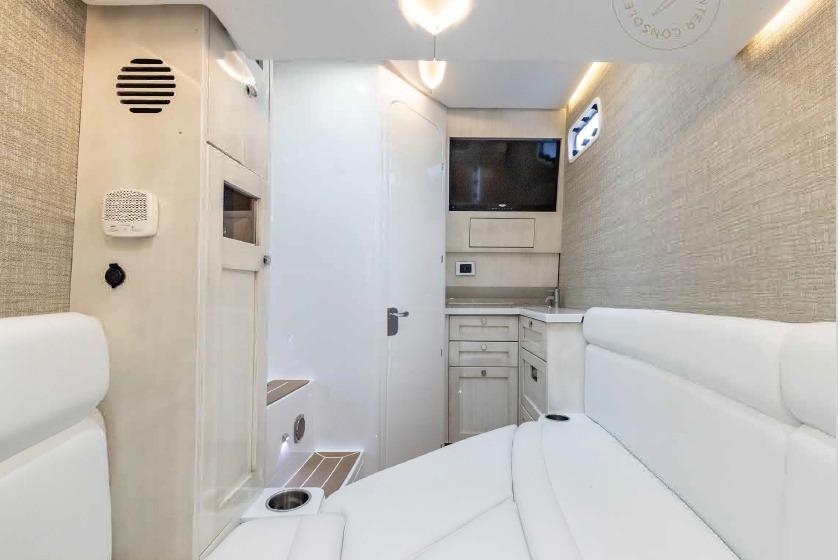

• Cabin with Galley Sink, 12-volt Refrigerator, Solid Wood Settee Table (Seats 5 and Converts to Berth That Sleeps 2)
• Cabin – Includes Padded Wall and Ceiling Covering with Tinted Sky Light and 5 Port Lights
• Cabin – Centralized Electrical panel for both 12V and 120V
• Corian Countertop with food preparation tray and silverware holder
• Cabinetry Premium Real Wood with Professional Grade Finish (Color Choices available in a separate section)
• TV LED 24”
• Dual USB outlet
• Interior Cabin Flooring – Synthetic Teak (2 Color)
• Premium Grade personalized Upholstery w/custom colors
• Interior floor Lights
• Air Conditioner – Head and Cabin 12 volt
• Perimeter Lit Padded head liner
• Interior overhead RGBW Lights
• Side entry console door-Starboard side
• Storage – Seat Bottom & Seat Back
• Magazine Rack
• 110V Outlets (2) – shore power only

ENGINES & MANEUVERING

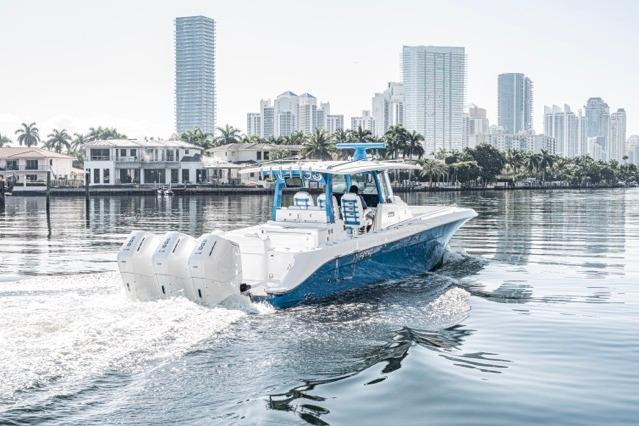

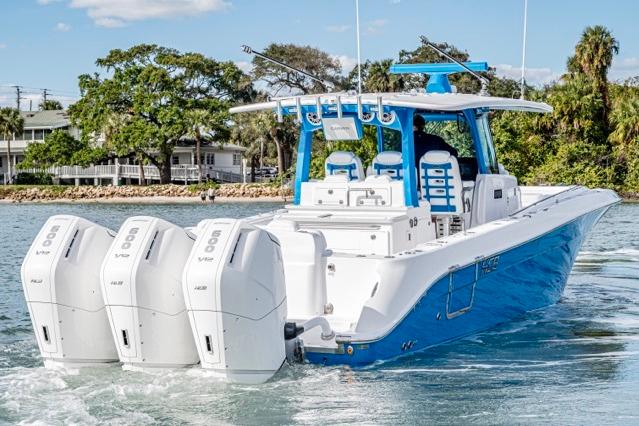

• Triple Yamaha 450 HP with Helm Master with Joystick and Autopilot
• Control – binnacle mount digital throttle and shift
• Fuel tanks – aluminum Port (100 gal), STBD (100 gal), Center (414 gal) fuel Capacity
• Fuel/water separators
• Fuel management/manifolds, 1 manifold per engine (Run any Engine off any tank)
• Propellers – stainless steel
• Windlass: Stainless Steel 35lbs Plow Anchor, rope (100 ft)/Chain (300 ft) Combo, control at the bow and helm
• Trim tabs – SS trim tab with dual actuators
• Bow Thruster – 12V, 132lbs Thrust
• Remote Engine Flush Manifold

  FLUID &ELECTRICAL SYSTEM

• Battery parallel switch at helm for all Engine batteries
• House batteries – 5 Odyssey AGM group 31 batteries (2 in House bank one and 3 in House bank two)
• Engine batteries – 1 Odyssey AGM group 31 battery per engine
• Bow thruster/Windlass Batteries – 1 Odyssey AGM group 31 battery
• Engine battery charger – 4 banks, 40A
• House battery chargers – 60A (2)
• Electrical wiring – 12-volt system with circuit breakers and connections (ABYC & CE Certified) utilizing tinned copper wire
• Electrical panels – Engine Panel, Main DC (12V) panel and AC (120V) panel
• Bilge pumps with automatic float switches (4), (2) 2200 gph aft, (2) 750 gph fwd.
• High Water Alarm in Aft Bilge
• Bonding System all metal components below water line, Aluminum anodes
• Shore power inlet – Transom Mounted, 30 AMP with 50' cord and cord reel, powered feed In/Out
• Fresh water system – 40-gal tank with level gauge
• Fresh water wash down. 20’ retractable hose reel, mid ship, portside
• Fresh water Pump. 5.0 gpm with pressure switch
• Raw water wash down with quick connect hose connections, (2) bow and stern
• Raw water wash down. 20’ retractable hose reel, mid ship, stbd side
• Raw water Pump. 5.0 gpm with pressure sensitive switch
• Hoses – Steel-reinforced and double-clamped throughout
• Navigation lights – LED
• Sealed aft deck access hatch with accessibility to pump room and mechanical room with compression latches
• Water ready – (Batteries and Props installed, engine oil filled, Fuel)
• SeaKeeper 3 Ready
