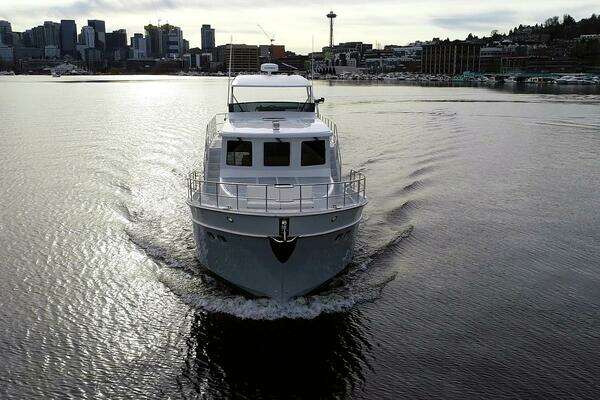

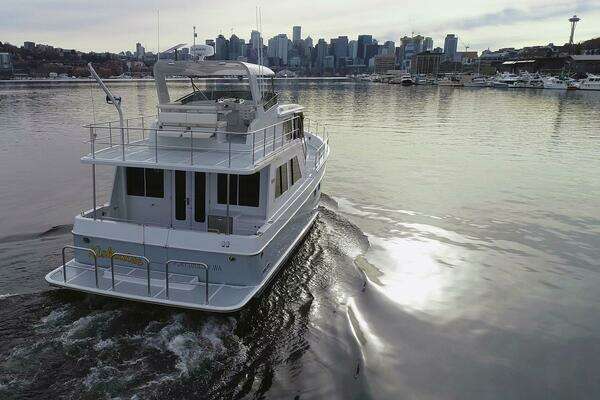

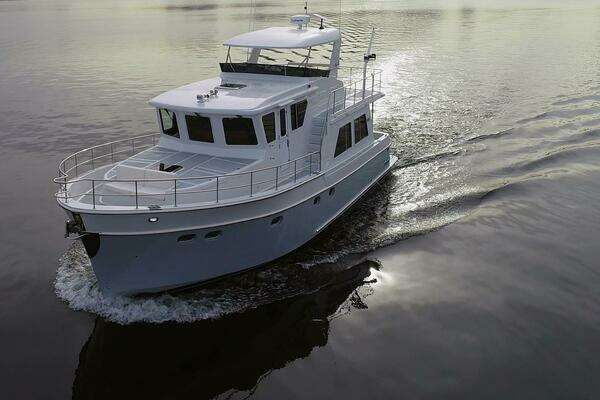

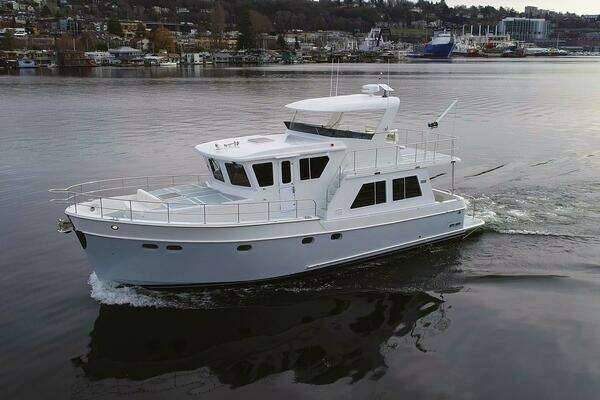

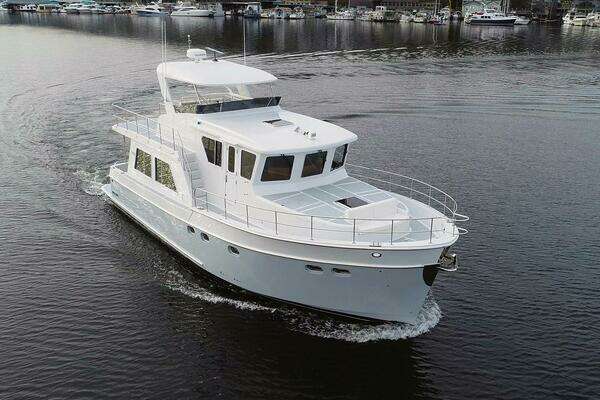

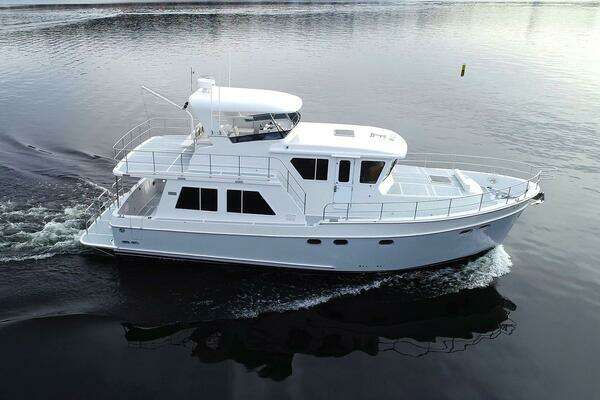

2026 Helmsman 46 Pilothouse | 50ft

Generator 1

• Generator Make: Northern Lights

• Generator KW: 9.00

Construction and Design

• Semi-displacement hull design with soft chines, deep forefoot, broad sections aft for form stability, and full keel

• Structural stiffness with a solid FRP laminate hull with vinylester resins in external layers — hull fitted with an internal FRP grid

• Decks built with substantial laminations and cored with PVC foam

• Strong stainless steel skeg and large rudder

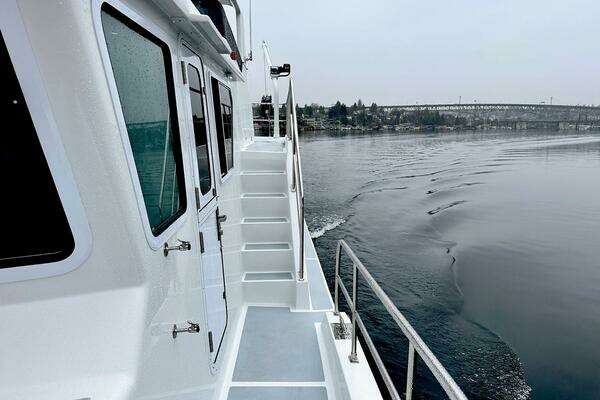

• Wide-beam salon, open interior design, port and starboard pilothouse doors, secure steps and handrails to flybridge

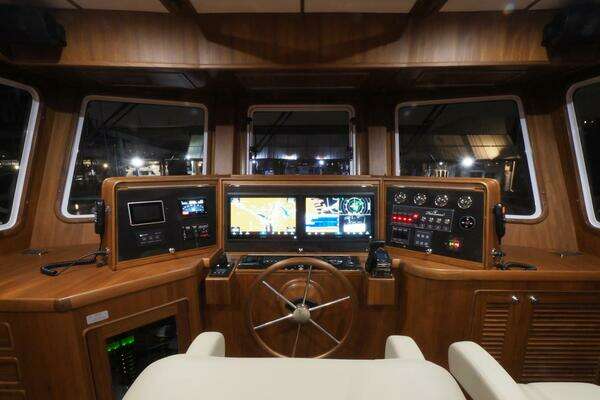

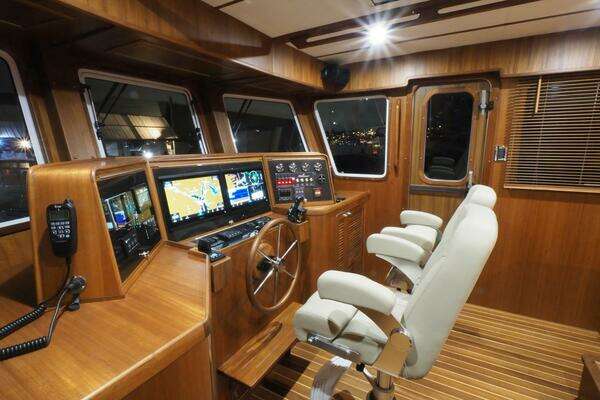

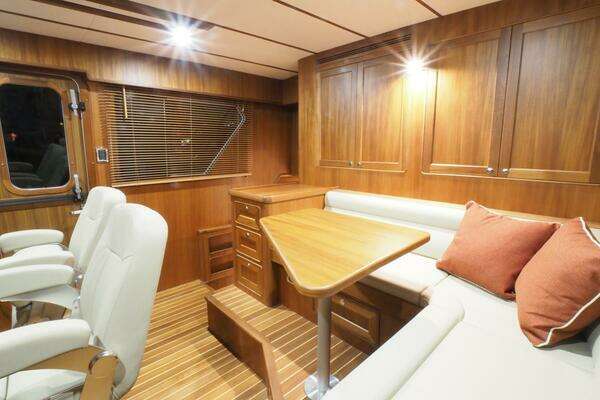

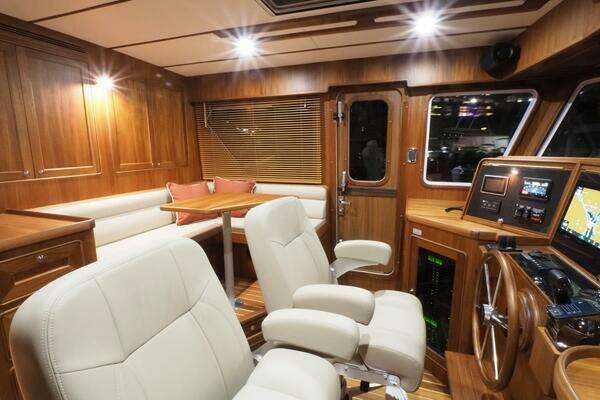

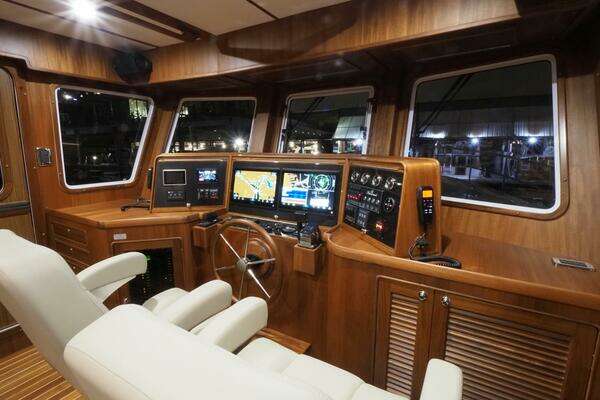

• Raised pilothouse with L-shaped dinette and high-backed pedestal helm seats (2)

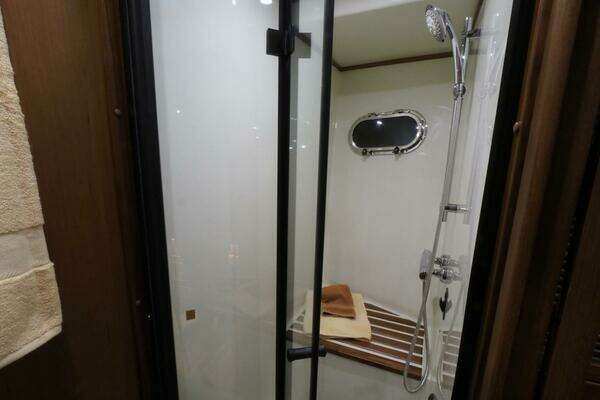

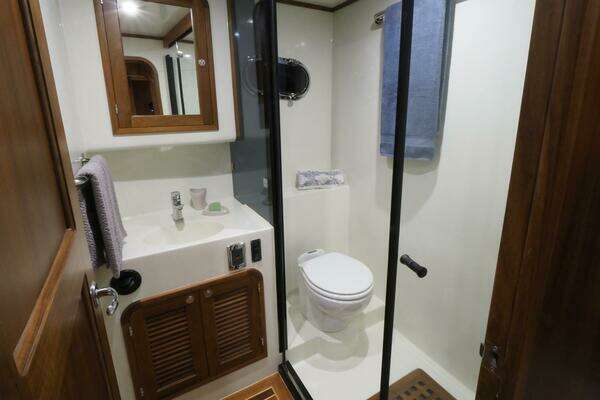

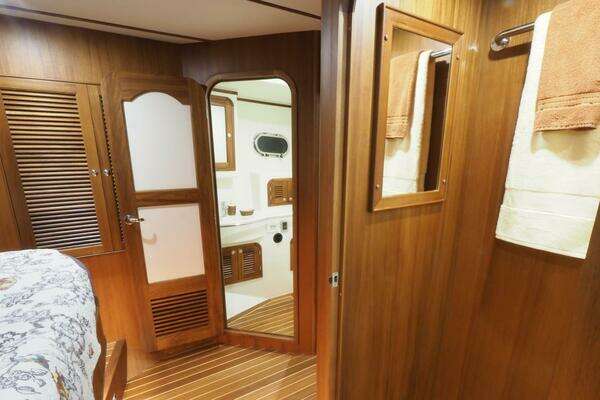

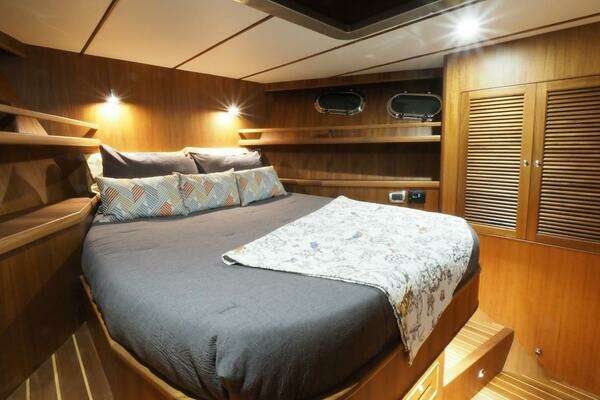

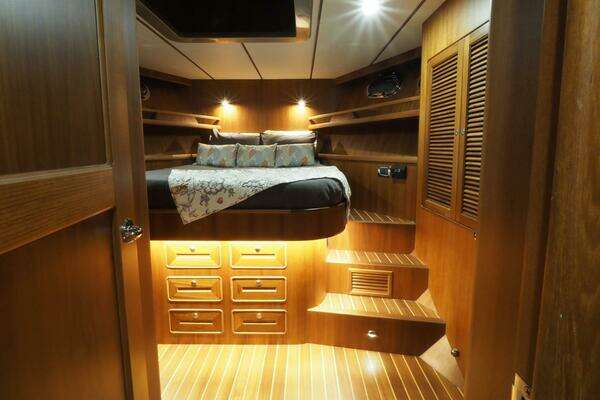

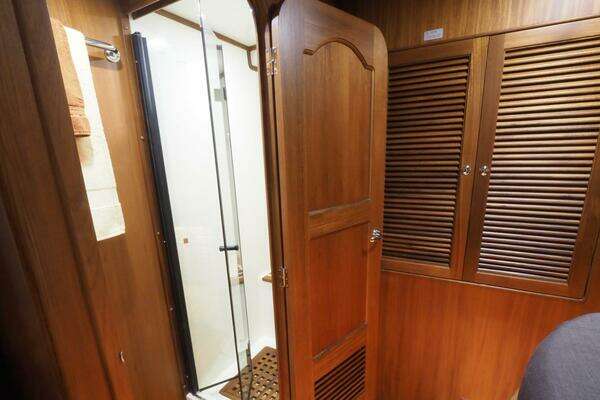

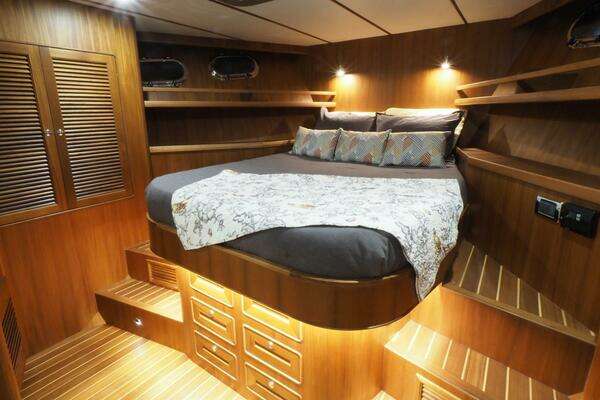

• Master stateroom with ensuite head with shower compartment; queen-sized berth, extensive storage

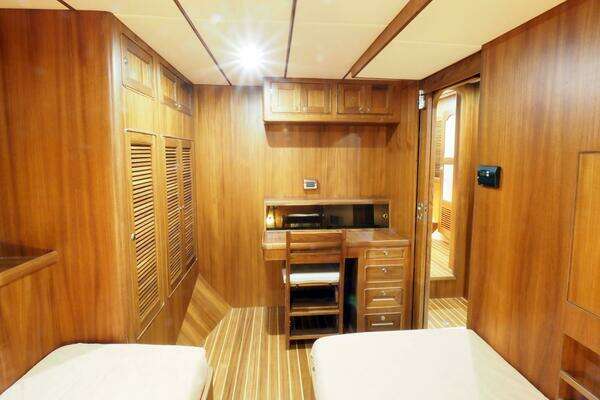

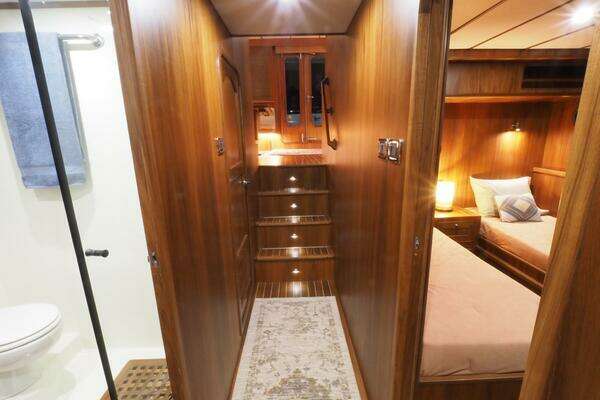

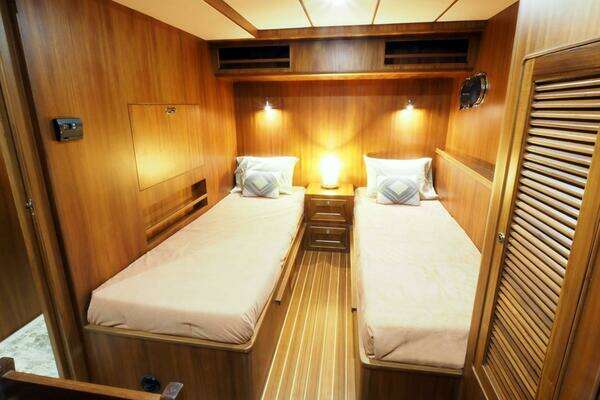

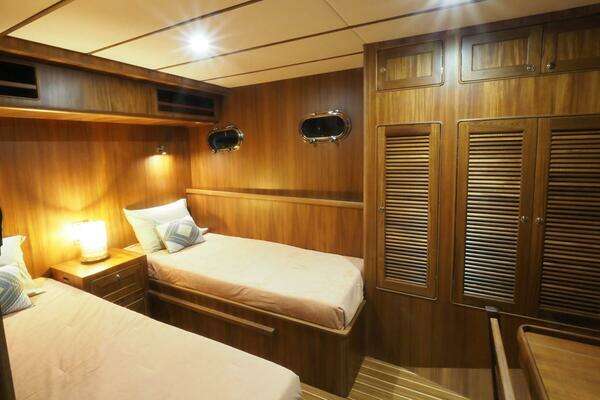

• Multiple layout options for the second stateroom, including a VIP stateroom, a combination stateroom / office, or dedicated office

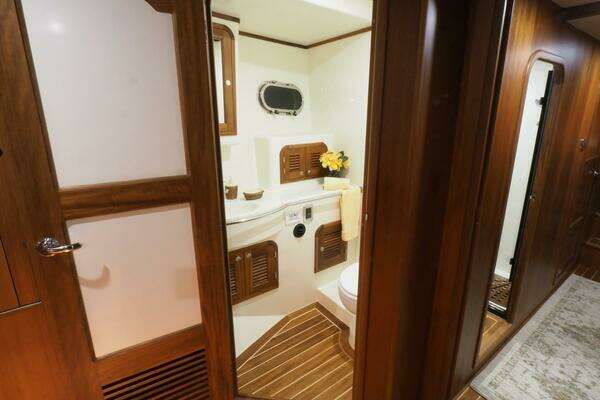

• Day head readily accessed from salon or guest stateroom

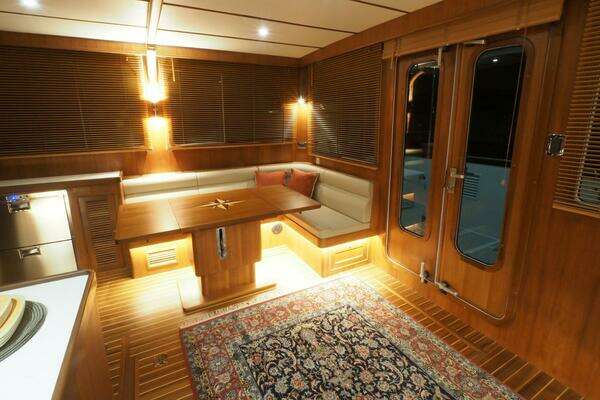

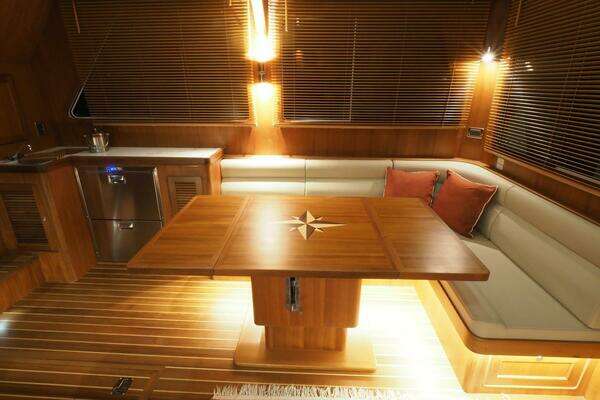

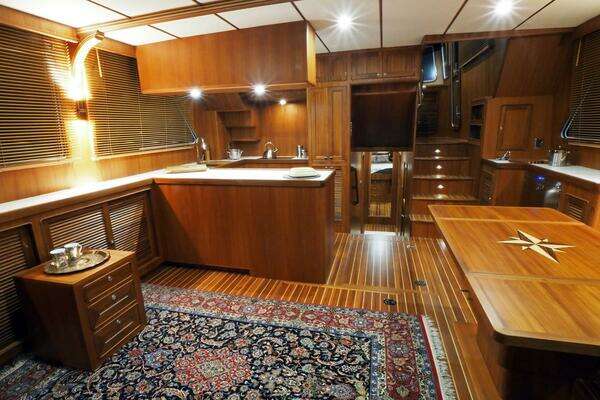

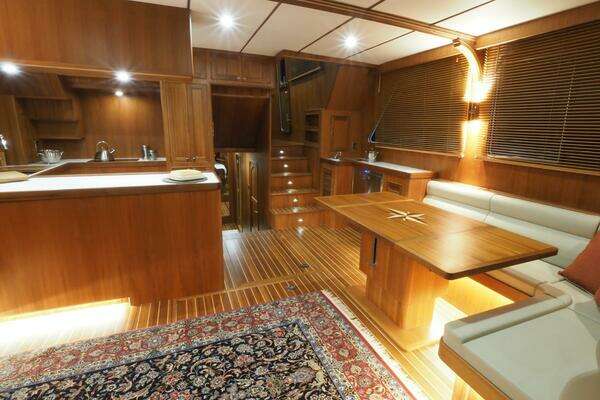

• Convertible U-shaped dining settee in salon; space for freestanding chairs or recliners

• Pilothouse hinged watertight Dutch doors (2)

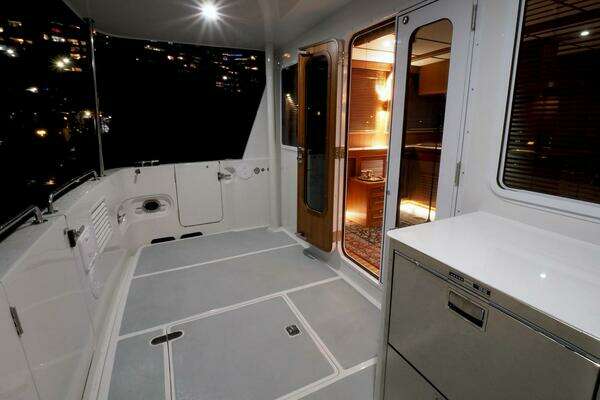

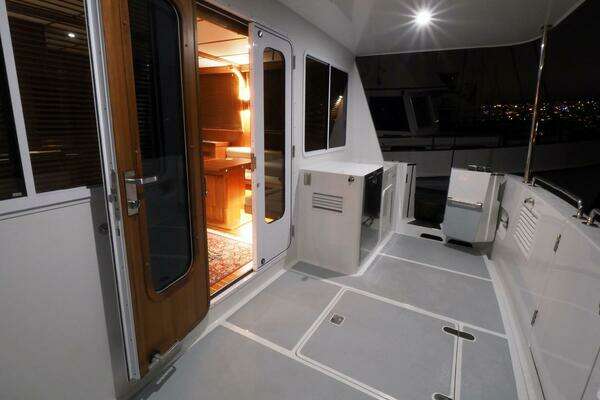

• Sliding aluminum aft cabin door to cockpit

• FRP fuel tanks (2), stainless steel water tanks (2), and FRP holding tank (1)

• Extensive use of sound deadening techniques and materials

• Multi-layer composite interior floor construction, with rubber cork inner layer for sound and vibration reduction, topped with teak and holly strip planking

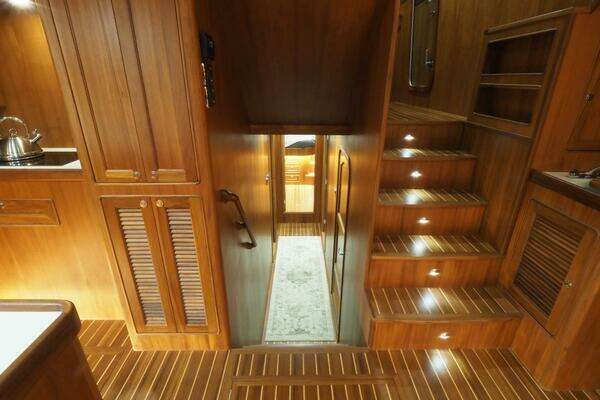

• Expertly-crafted cabinetry — teak solids and veneers throughout for strength, water resistance and long-lasting beauty

• Hand-brushed and hand-rubbed two-part polyurethane varnish in multiple layers, with final satin finish

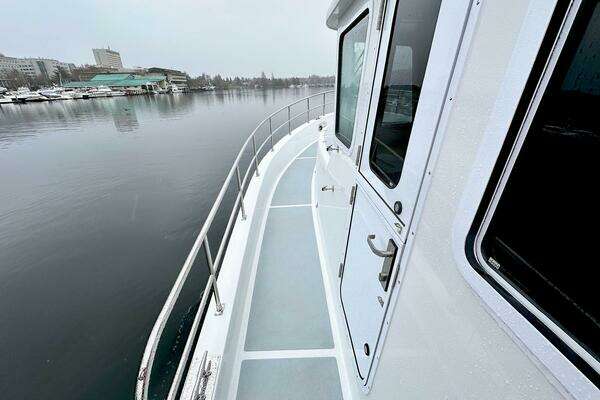

• Oversized double-rung stainless steel safety rails with finely polished welds

• Storage lockers for fenders and lines built into forward trunk cabin (4)

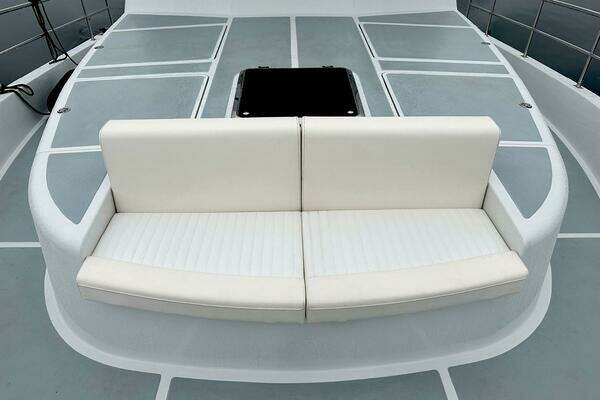

• Cushioned seating at foredeck

Exterior

• Matterhorn White gel coat hull, superstructure and deck surfaces

• Side-Power SEP130 bow and stern thrusters with PRO variable speed DC control

• Transom door; cockpit side entry doors (2)

• FRP swim platform with pull-out ladder; removable safety handrails (3)

• Full-length cockpit cover

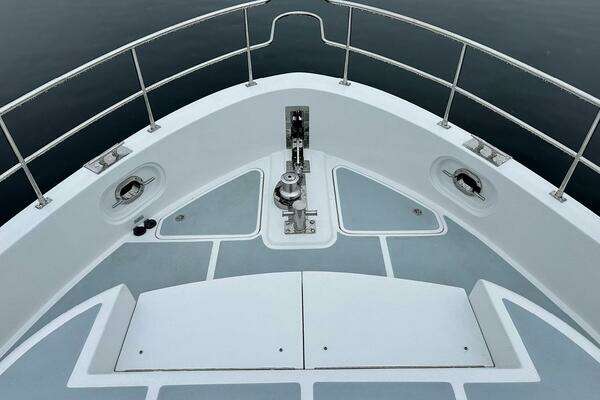

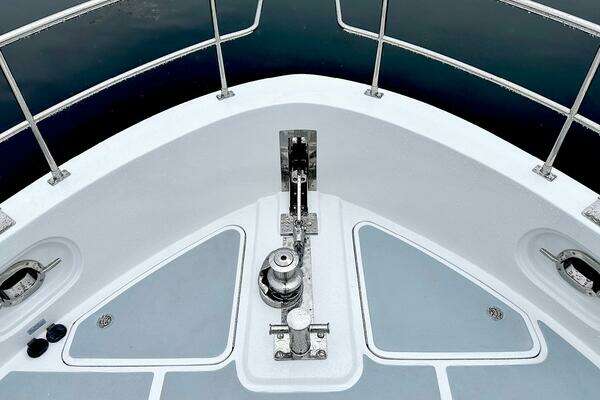

• Lewmar V5 windlass, 3/8” chain, 66 lb stainless steel Bruce-type anchor

• Anchor chain locker access hatch on foredeck

• Raw water and fresh water anchor washdown at bow

• Hawse cleats on transom (2), aft (2) and amidships (2)

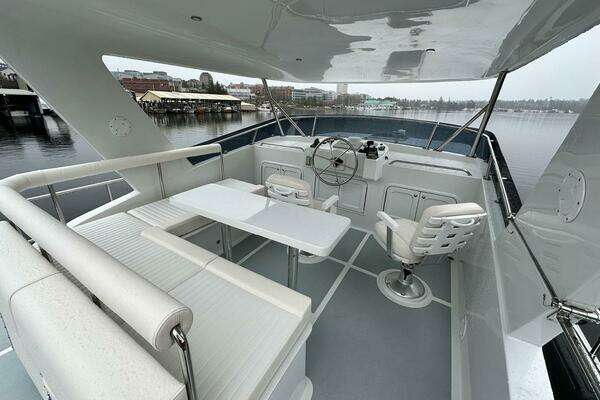

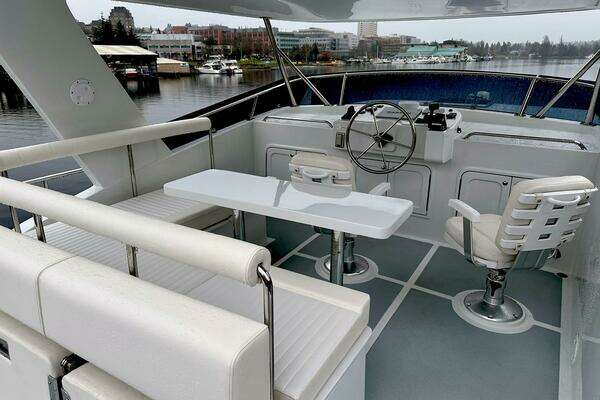

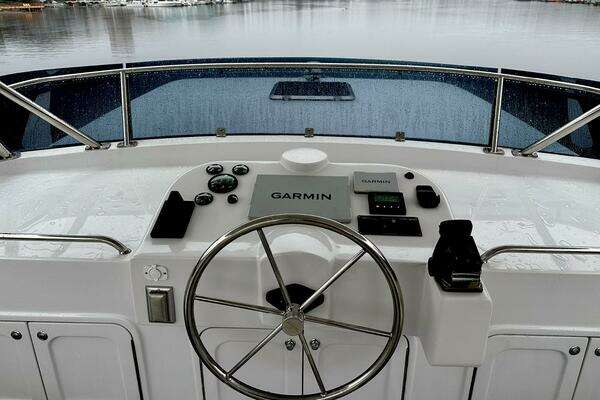

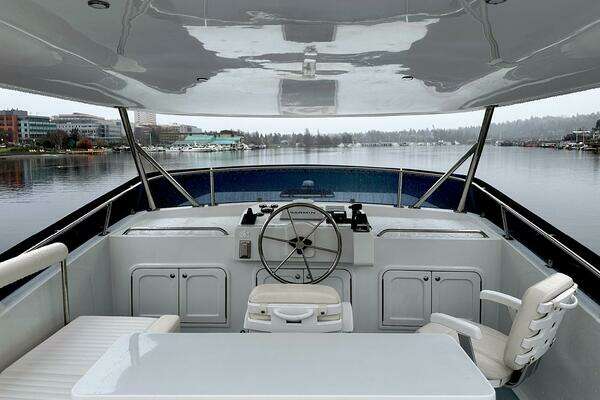

• Flybridge control center with stainless steel wheel; high-backed pedestal seats (2)

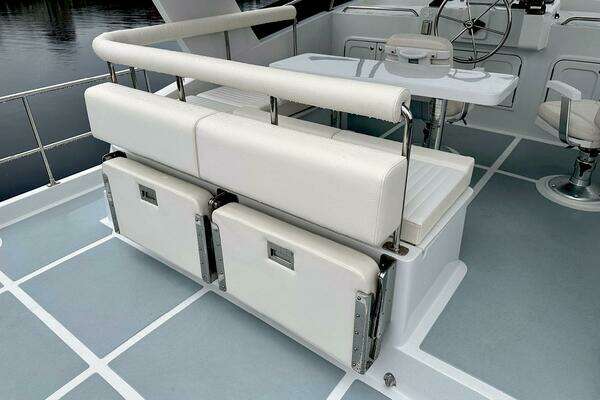

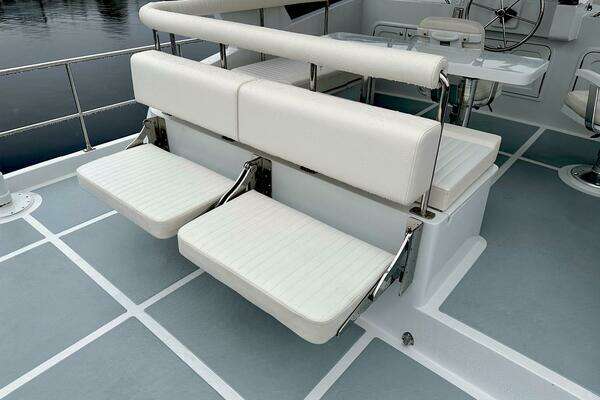

• Flybridge L-shaped settee with cocktail table

• Lazarette storage compartment

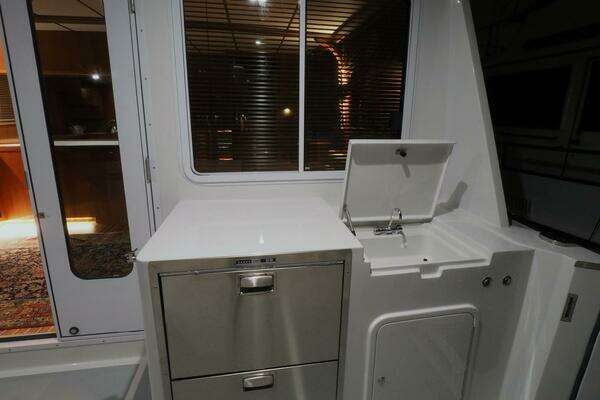

• Cockpit raw water wash

• LED navigation lights

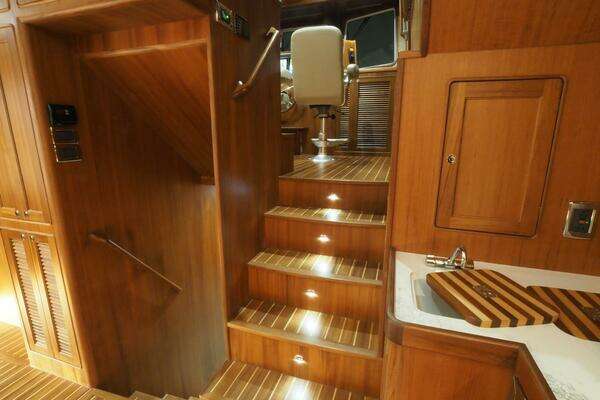

• LED courtesy lighting on steps and flybridge

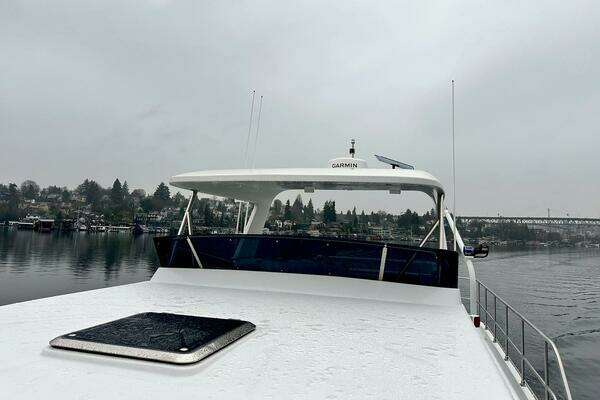

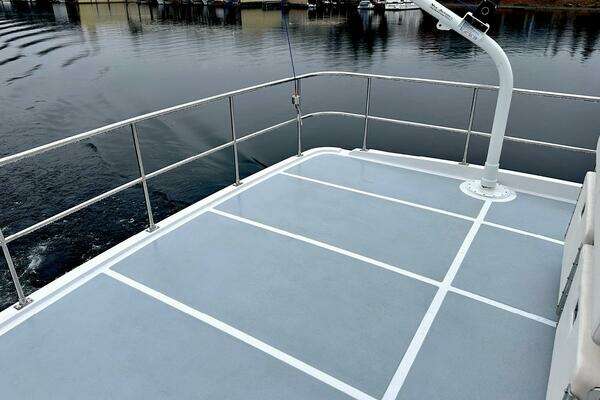

• Radar arch with hinge

• Three pantographic windshield wipers with washer system

• Stainless steel handrail on transom

• Seahawk epoxy barrier coating and bottom paint

• Seahawk Barnacle Blocker on underwater metal

Engine Room

• Cummins QSC8.3 liter 493 hp electronically controlled common-rail diesel engine

• Dual Racor fuel filters

• Reverso oil-change system

• Dripless-type prop shaft seal

• Tides rudder shaft seals

• Sea Star hydraulic steering system with autopilot hydraulic steering taps installed

• Rule 2000 bilge pump (1); Rule 1500 bilge pumps (3); high water alarm

• Shower sump pump

• Hinged interior floor hatches with gas stays

• Removable deck plates throughout engine room

• LED lighting in engineroom

• Tool storage cabinet / workbench

Electrical

• Northern Lights 9 kw generator in sound enclosure

• Northstar 215 A-hr AGM house batteries (5) in rack, AGM bow thruster / windlass batteries (2), AGM stern thruster batteries (2)

• Northstar 185 A-hr AGM engine start battery (1), generator start battery

• Victron MultiPlus 12V/3000VA Inverter & Charger with Victron Cerbo GX 50 Touch display and SmartShunt

• Blue Sea Systems Remote Battery Switches and Automatic Charge Relays

• SmartPlug 50 amp shorepower inlet (1)

• Victron 7000VA isolation transformer

• Blue Sea Systems electrical (AC/DC) distribution panel

• Bonding system with aluminum anodes

Interior

• LED interior overhead lighting with dimmers

• LED reading lights in salon, galley, pilothouse and master stateroom

• LED cockpit lighting

• Louvered storage cabinet doors for ventilation

• Door for engineroom access from day head

• Stainless steel overhead hatches and portlights with screens

• Opening center windshield window; motor operated

• Wood blinds in salon and pilothouse

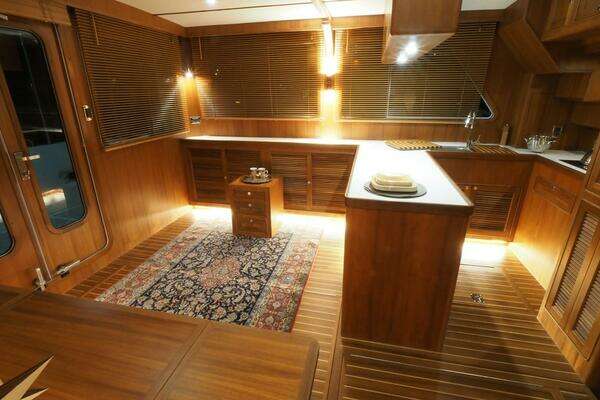

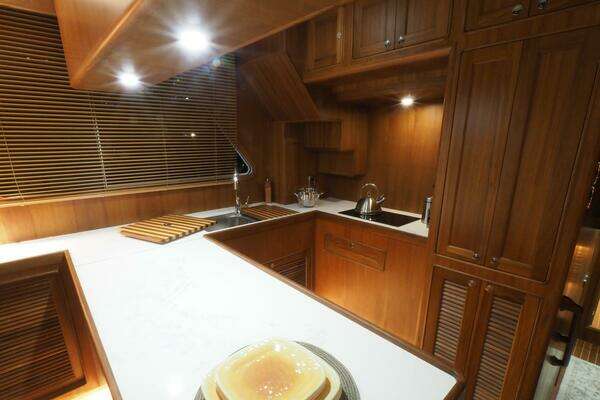

• Caesarstone galley countertops

• Overhead storage cabinets in galley

Domestic Systems

• Force 10 galley range - propane or electric; microwave

• Vitifrigo refrigeration: double-drawer refrigerator (1) and double-drawer freezer (1) in galley

• Webasto DBW2010S 50,000 BTU hydronic heating system (or credit toward optional reverse-cycle heating/cooling system)

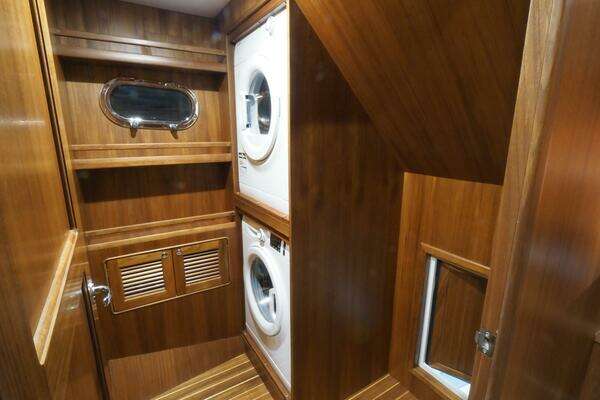

• Washer and dryer

• Dometic Masterflush heads (2 or 3, depending on layout)

• Macerator overboard pump with through-hull fitting

• Marco variable speed potable water pump

• 17-gallon Torrid water heater

• Cockpit freshwater shower (hot and cold)
